Section 1: Introduction
J Series 2.0, 2.4, and 3.0kW User Manual1-3020-100707-01 Rev. 1  (10-2011)

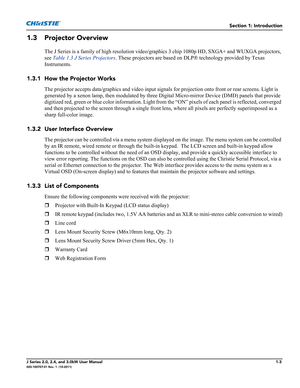

1.3 Projector Overview
The J Series is a family of high resolution video/graphics 3 chip 1080p HD, SXGA+ and WUXGA projectors,
see Table 1.3 J Series Projectors. These projectors are based on DLP® technology provided by Texas
Instruments.
1.3.1 How the Projector Works
The projector accepts data/graphics and video input signals for projection onto front or rear screens. Light is
generated by a xenon...

1-4J Series 2.0, 2.4, and 3.0kW User Manual020-100707-01 Rev. 1   (10-2011)
Section 1: Introduction

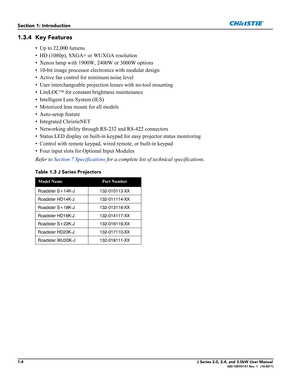

1.3.4 Key Features
• Up to 22,000 lumens
• HD (1080p), SXGA+ or WUXGA resolution
• Xenon lamp with 1900W, 2400W or 3000W options
• 10-bit image processor electronics with modular design
• Active fan control for minimum noise level
• User interchangeable projection lenses with no-tool mounting
• LiteLOC for constant brightness maintenance
• Intelligent Lens System (ILS)
• Motorized lens mount for all...

Section 1: Introduction
J Series 2.0, 2.4, and 3.0kW User Manual1-5020-100707-01 Rev. 1  (10-2011)

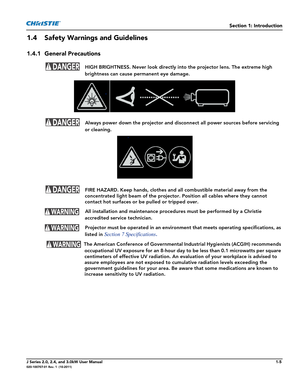

1.4 Safety Warnings and Guidelines
1.4.1 General Precautions
  HIGH BRIGHTNESS. Never look directly into the projector lens. The extreme high
brightness can cause permanent eye damage.
  Always power down the projector and disconnect all power sources before servicing
or cleaning.
  FIRE HAZARD. Keep hands, clothes and all combustible material away from the
concentrated light beam of the projector....

1-6J Series 2.0, 2.4, and 3.0kW User Manual020-100707-01 Rev. 1   (10-2011)
Section 1: Introduction

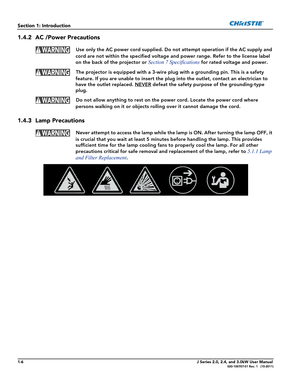

1.4.2 AC /Power Precautions
  Use only the AC power cord supplied. Do not attempt operation if the AC supply and
cord are not within the specified voltage and power range. Refer to the license label
on the back of the projector or
Section 7 Specifications for rated voltage and power.
  The projector is equipped with a 3-wire plug with a grounding pin. This is a safety
feature. If you are unable to...

J Series 2.0, 2.4, and 3.0kW User Manual2-1020-100707-01  Rev. 1   (10-2011)
2 Installation and Setup
This section explains how to install, connect and optimize the projector for delivery of superior image
quality. Illustrations are graphical representations only and are provided to enhance the understanding of
the written material.
2.1 Projector Quick Setup and Installation
The following instructions are for those preferring a quick setup. Refer to the remaining subsections for
detailed setup...

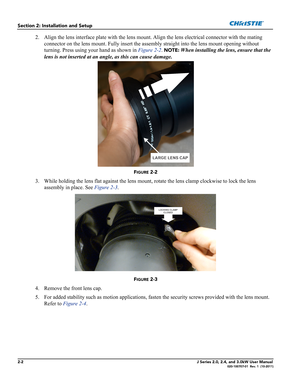

2-2J Series 2.0, 2.4, and 3.0kW User Manual020-100707-01  Rev. 1  (10-2011)
Section 2: Installation and Setup
2. Align the lens interface plate with the lens mount. Align the lens electrical connector with the mating
connector on the lens mount. Fully insert the assembly straight into the lens mount opening without
turning. Press using your hand as shown in Figure 2-2.
NOTE: When installing the lens, ensure that the
lens is not inserted at an angle, as this can cause damage.
FIGURE 2-2
3. While...

Section 2: Installation and Setup
J Series 2.0, 2.4, and 3.0kW User Manual2-3020-100707-01  Rev. 1   (10-2011)

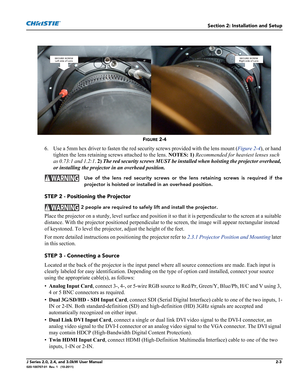

FIGURE 2-4
6. Use a 5mm hex driver to fasten the red security screws provided with the lens mount (Figure 2-4), or hand
tighten the lens retaining screws attached to the lens. NOTES: 1) Recommended for heaviest lenses such
as 0.73:1 and 1.2:1. 2) The red security screws MUST be installed when hoisting the projector overhead,
or installing the projector in an overhead position.
  Use of the...

2-4J Series 2.0, 2.4, and 3.0kW User Manual020-100707-01  Rev. 1  (10-2011)
Section 2: Installation and Setup

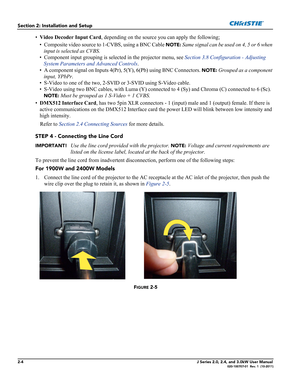

•Video Decoder Input Card, depending on the source you can apply the following;
• Composite video source to 1-CVBS, using a BNC Cable
NOTE: Same signal can be used on 4, 5 or 6 when
input is selected as CVBS.
• Component input grouping is selected in the projector menu, see Section 3.8 Configuration - Adjusting
System Parameters and Advanced Controls.
• A component signal on Inputs 4(Pr),...

Section 2: Installation and Setup
J Series 2.0, 2.4, and 3.0kW User Manual2-5020-100707-01  Rev. 1   (10-2011)

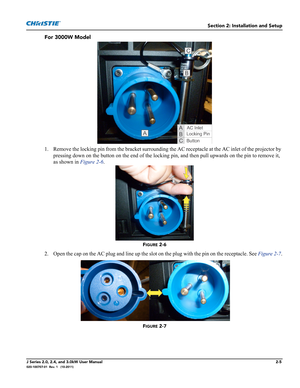

For 3000W Model
1. Remove the locking pin from the bracket surrounding the AC receptacle at the AC inlet of the projector by
pressing down on the button on the end of the locking pin, and then pull upwards on the pin to remove it,
as shown in Figure 2-6.
FIGURE 2-6
2. Open the cap on the AC plug and line up the slot on the plug with the pin on the receptacle. See Figure 2-7.
FIGURE 2-7

2-6J Series 2.0, 2.4, and 3.0kW User Manual020-100707-01  Rev. 1  (10-2011)
Section 2: Installation and Setup

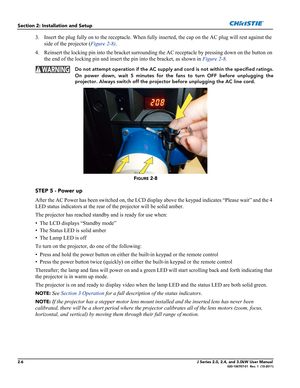

3. Insert the plug fully on to the receptacle. When fully inserted, the cap on the AC plug will rest against the
side of the projector (Figure 2-8).
4. Reinsert the locking pin into the bracket surrounding the AC receptacle by pressing down on the button on
the end of the locking pin and insert the pin into the bracket, as shown in Figure 2-8.
  Do not attempt operation if the AC supply and...
