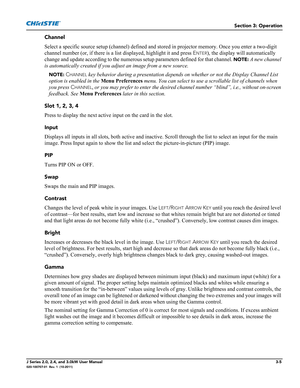

Channel
Select a specific source setup (channel) defined and stored in projector memory. Once you enter a two-digit
channel number (or, if there is a list displayed, highlight it and press E
NTER), the display will automatically
change and update according to the numerous setup parameters defined for that channel.
NOTE: A new channel
is automatically created if you adjust an image from a new source.
NOTE:...

3-6J Series 2.0, 2.4, and 3.0kW User Manual020-100707-01  Rev. 1   (10-2011)
Section 3: Operation

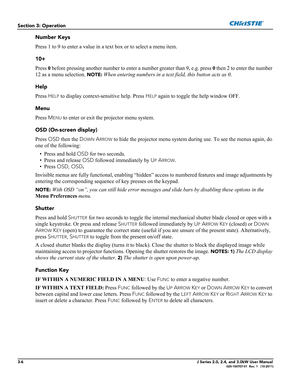

Number Keys
Press 1 to 9 to enter a value in a text box or to select a menu item.
10+
Press 0 before pressing another number to enter a number greater than 9, e.g. press 0 then 2 to enter the number
12 as a menu selection.
NOTE: When entering numbers in a text field, this button acts as 0.
Help
Press H
ELP to display context-sensitive help. Press HELP again to toggle the help window OFF.
Menu
Press M
ENU...

Section 3: Operation
J Series 2.0, 2.4, and 3.0kW User Manual3-7020-100707-01  Rev. 1  (10-2011)

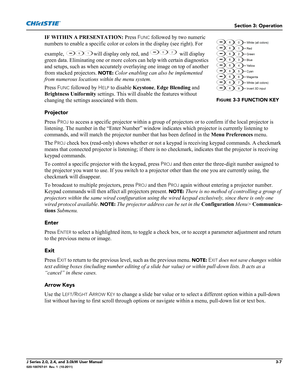

IF WITHIN A PRESENTATION: Press FUNC followed by two numeric
numbers to enable a specific color or colors in the display (see right). For
example,  will display only red, and   will display
green data. Eliminating one or more colors can help with certain diagnostics
and setups, such as when accurately overlaying one image on top of another
from stacked projectors.
NOTE: Color enabling can also be...

3-8J Series 2.0, 2.4, and 3.0kW User Manual020-100707-01  Rev. 1   (10-2011)
Section 3: Operation

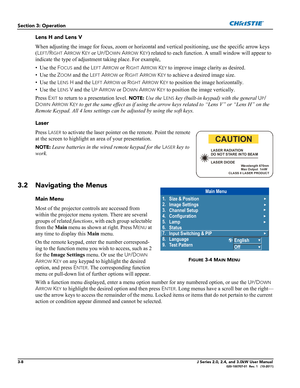

Lens H and Lens V
When adjusting the image for focus, zoom or horizontal and vertical positioning, use the specific arrow keys
(L
EFT/RIGHT ARROW KEY or UP/DOWN ARROW KEY) related to each function. A small window will appear to
indicate the type of adjustment taking place. For example,
• Use the F
OCUS and the LEFT ARROW or RIGHT ARROW KEY to improve image clarity as desired.
• Use the Z
OOM and the LEFT...

Section 3: Operation
J Series 2.0, 2.4, and 3.0kW User Manual3-9020-100707-01  Rev. 1  (10-2011)
When finished with a function menu:
• Press E
XIT to return to the previous screen.
OR
• Press M
ENU to leave the menu system and return to the presentation.
NOTES: 1) If there is no signal present, all source-dependent adjustments are disabled. 2) After 15 minutes of
inactivity, the projector leaves the menu system and returns to the presentation.
3) The Status menu is read-
only.

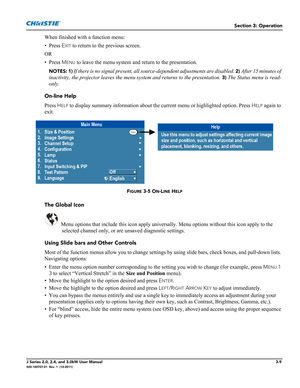

On-line Help
Press H
ELP...

3-10J Series 2.0, 2.4, and 3.0kW User Manual020-100707-01  Rev. 1   (10-2011)
Section 3: Operation

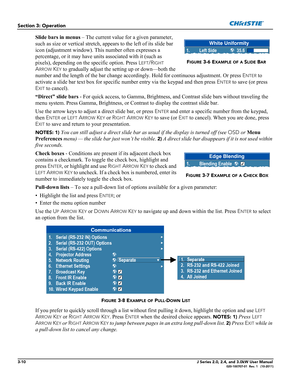

Slide bars in menus – The current value for a given parameter,
such as size or vertical stretch, appears to the left of its slide bar
icon (adjustment window). This number often expresses a
percentage, or it may have units associated with it (such as
pixels), depending on the specific option. Press L
EFT/RIGHT
ARROW KEY to gradually adjust the setting up or down—both the
number and the length of the...

Section 3: Operation
J Series 2.0, 2.4, and 3.0kW User Manual3-11020-100707-01  Rev. 1  (10-2011)

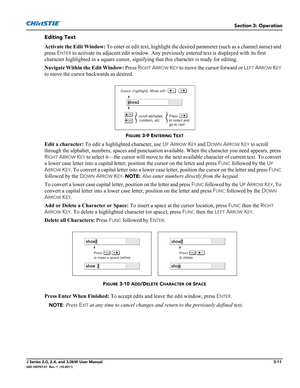

Editing Text
Activate the Edit Window: To enter or edit text, highlight the desired parameter (such as a channel name) and
press E
NTER to activate its adjacent edit window. Any previously entered text is displayed with its first
character highlighted in a square cursor, signifying that this character is ready for editing.
Navigate Within the Edit Window: Press R
IGHT ARROW KEY to move the cursor forward...

3-12J Series 2.0, 2.4, and 3.0kW User Manual020-100707-01  Rev. 1   (10-2011)
Section 3: Operation

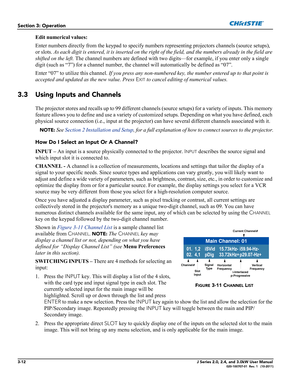

Edit numerical values:
Enter numbers directly from the keypad to specify numbers representing projectors channels (source setups),
or slots. As each digit is entered, it is inserted on the right of the field, and the numbers already in the field are
shifted on the left. The channel numbers are defined with two digits—for example, if you enter only a single
digit (such as “7”) for a channel number, the...

Section 3: Operation
J Series 2.0, 2.4, and 3.0kW User Manual3-13020-100707-01  Rev. 1  (10-2011)

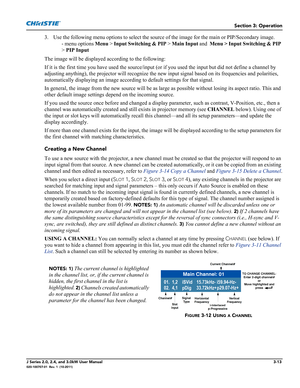

3. Use the following menu options to select the source of the image for the main or PIP/Secondary image.
- menu options Menu > Input Switching & PIP > Main Input and  Menu > Input Switching & PIP
> PIP Input
The image will be displayed according to the following:
If it is the first time you...

3-14J Series 2.0, 2.4, and 3.0kW User Manual020-100707-01  Rev. 1   (10-2011)
Section 3: Operation

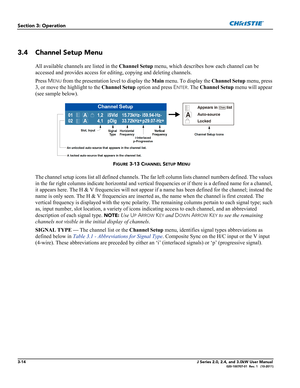

3.4 Channel Setup Menu
All available channels are listed in the Channel Setup menu, which describes how each channel can be
accessed and provides access for editing, copying and deleting channels.
Press M
ENU from the presentation level to display the Main menu. To display the Channel Setup menu, press
3, or move the highlight to the Channel Setup option and press E
NTER. The Channel Setup menu will...
