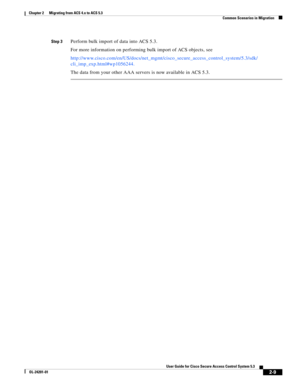

Cisco Acs 5x User Guide

2-9
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 2      Migrating from ACS 4.x to ACS 5.3
  Common Scenarios in Migration
Step 3Perform bulk import of data into ACS 5.3.
For more information on performing bulk import of ACS objects, see
http://www.cisco.com/en/US/docs/net_mgmt/cisco_secure_access_control_system/5.3/sdk/
cli_imp_exp.html#wp1056244.
The data from your other AAA servers is now available in ACS 5.3.

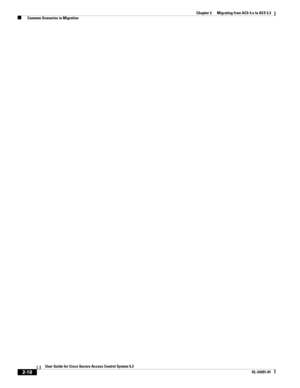

2-10
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 2      Migrating from ACS 4.x to ACS 5.3
  Common Scenarios in Migration

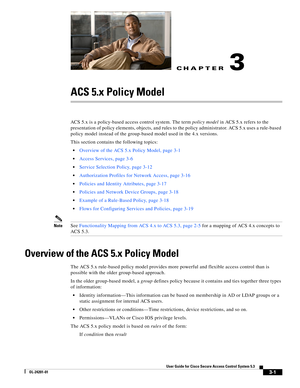

CH A P T E R
3-1
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
3
ACS 5.x Policy Model
ACS 5.x is a policy-based access control system. The term policy model in ACS 5.x refers to the
presentation of policy elements, objects, and rules to the policy administrator. ACS 5.x uses a rule-based
policy model instead of the group-based model used in the 4.x versions.
This section contains the following topics:
Overview of the ACS 5.x Policy Model, page 3-1
Access Services, page 3-6
Service...

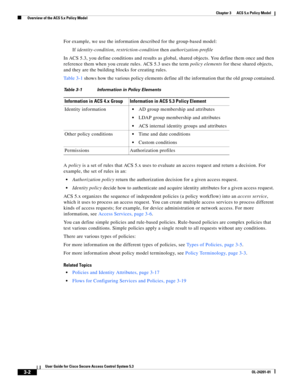

3-2
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 3      ACS 5.x Policy Model
  Overview of the ACS 5.x Policy Model
For example, we use the information described for the group-based model:
If identity-condition, restriction-condition then authorization-profile
In ACS 5.3, you define conditions and results as global, shared objects. You define them once and then
reference them when you create rules. ACS 5.3 uses the term policy elements for these shared objects,
and they are...

3-3
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 3      ACS 5.x Policy Model
  Overview of the ACS 5.x Policy Model

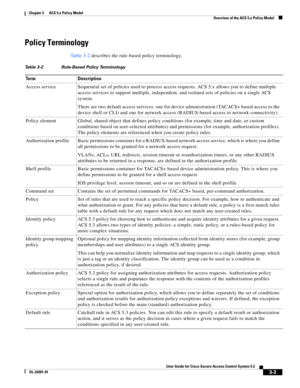

Policy Terminology
Ta b l e 3 - 2 describes the rule-based policy terminology.
Table 3-2  Rule-Based Policy Terminology
Term Description
Access service Sequential set of policies used to process access requests. ACS 5.x allows you to define multiple
access services to support multiple, independent, and isolated sets of policies on a single ACS
system.
There...

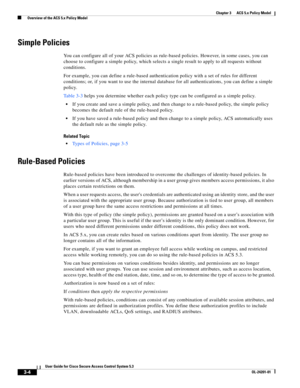

3-4
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 3      ACS 5.x Policy Model
  Overview of the ACS 5.x Policy Model
Simple Policies
You can configure all of your ACS policies as rule-based policies. However, in some cases, you can
choose to configure a simple policy, which selects a single result to apply to all requests without
conditions.
For example, you can define a rule-based authentication policy with a set of rules for different
conditions; or, if you want to use...

3-5
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 3      ACS 5.x Policy Model
  Overview of the ACS 5.x Policy Model

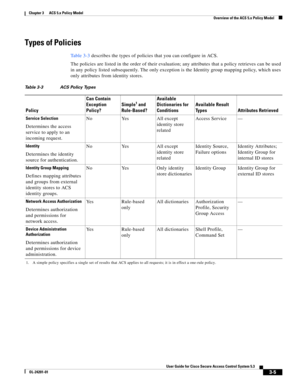

Types of Policies
Ta b l e 3 - 3 describes the types of policies that you can configure in ACS.
The policies are listed in the order of their evaluation; any attributes that a policy retrieves can be used
in any policy listed subsequently. The only exception is the Identity group mapping policy, which uses
only attributes from identity stores.
Ta b l e 3 - 3...

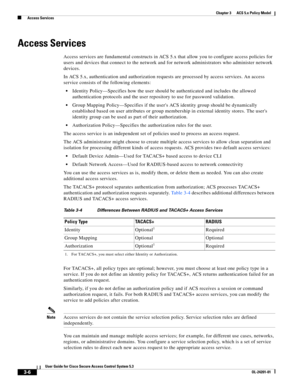

3-6
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 3      ACS 5.x Policy Model
  Access Services
Access Services
Access services are fundamental constructs in ACS 5.x that allow you to configure access policies for
users and devices that connect to the network and for network administrators who administer network
devices.
In ACS 5.x, authentication and authorization requests are processed by access services. An access
service consists of the following elements:
Identity...

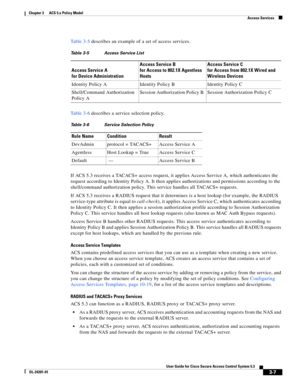

3-7
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 3      ACS 5.x Policy Model
  Access Services
Ta b l e 3 - 5 describes an example of a set of access services.
Ta b l e 3 - 6 describes a service selection policy.
If ACS 5.3 receives a TACACS+ access request, it applies Access Service A, which authenticates the
request according to Identity Policy A. It then applies authorizations and permissions according to the
shell/command authorization policy. This service handles all...

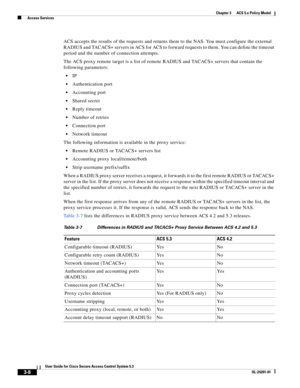

3-8
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 3      ACS 5.x Policy Model
  Access Services
ACS accepts the results of the requests and returns them to the NAS. You must configure the external
RADIUS and TACACS+ servers in ACS for ACS to forward requests to them. You can define the timeout
period and the number of connection attempts.
The ACS proxy remote target is a list of remote RADIUS and TACACS+ servers that contain the
following parameters:
IP
Authentication port...
