Cisco Acs 5x User Guide

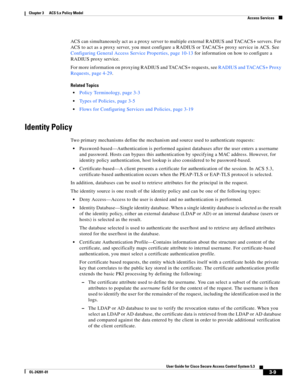

3-9
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 3      ACS 5.x Policy Model
  Access Services
ACS can simultaneously act as a proxy server to multiple external RADIUS and TACACS+ servers. For
ACS to act as a proxy server, you must configure a RADIUS or TACACS+ proxy service in ACS. See
Configuring General Access Service Properties, page 10-13 for information on how to configure a
RADIUS proxy service.
For more information on proxying RADIUS and TACACS+ requests, see...

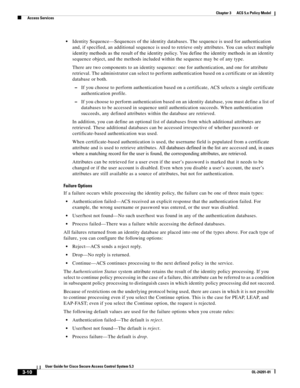

3-10
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 3      ACS 5.x Policy Model
  Access Services
Identity Sequence—Sequences of the identity databases. The sequence is used for authentication
and, if specified, an additional sequence is used to retrieve only attributes. You can select multiple
identity methods as the result of the identity policy. You define the identity methods in an identity
sequence object, and the methods included within the sequence may be of any type....

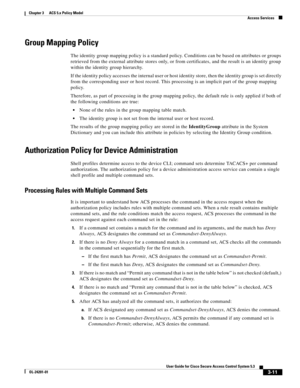

3-11
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 3      ACS 5.x Policy Model
  Access Services
Group Mapping Policy
The identity group mapping policy is a standard policy. Conditions can be based on attributes or groups
retrieved from the external attribute stores only, or from certificates, and the result is an identity group
within the identity group hierarchy.
If the identity policy accesses the internal user or host identity store, then the identity group is set...

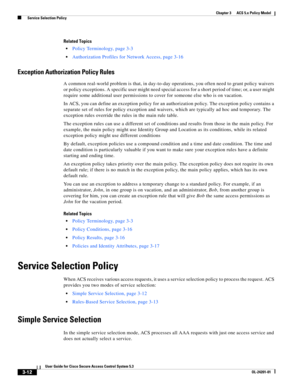

3-12
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 3      ACS 5.x Policy Model
  Service Selection Policy
Related Topics
Policy Terminology, page 3-3
Authorization Profiles for Network Access, page 3-16
Exception Authorization Policy Rules
A common real-world problem is that, in day-to-day operations, you often need to grant policy waivers
or policy exceptions. A specific user might need special access for a short period of time; or, a user might
require some additional user...

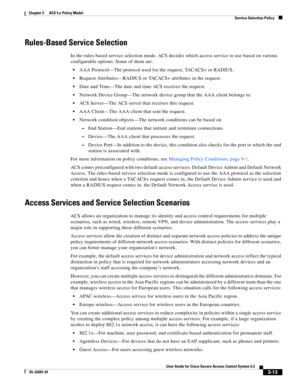

3-13
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 3      ACS 5.x Policy Model
  Service Selection Policy
Rules-Based Service Selection
In the rules-based service selection mode, ACS decides which access service to use based on various
configurable options. Some of them are:
AAA Protocol—The protocol used for the request, TACACS+ or RADIUS.
Request Attributes—RADIUS or TACACS+ attributes in the request.
Date and Time—The date and time ACS receives the request.
Network Device...

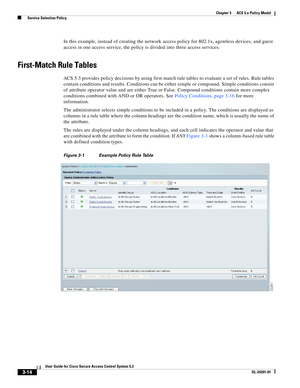

3-14
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 3      ACS 5.x Policy Model
  Service Selection Policy
In this example, instead of creating the network access policy for 802.1x, agentless devices, and guest
access in one access service, the policy is divided into three access services.
First-Match Rule Tables
ACS 5.3 provides policy decisions by using first-match rule tables to evaluate a set of rules. Rule tables
contain conditions and results. Conditions can be either...

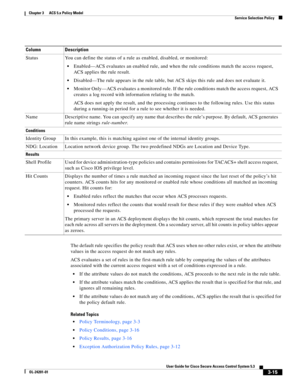

3-15
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 3      ACS 5.x Policy Model
  Service Selection Policy
The default rule specifies the policy result that ACS uses when no other rules exist, or when the attribute
values in the access request do not match any rules.
ACS evaluates a set of rules in the first-match rule table by comparing the values of the attributes
associated with the current access request with a set of conditions expressed in a rule.
If the attribute...

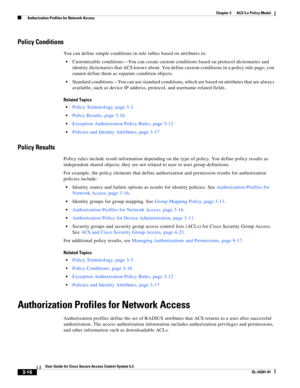

3-16
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 3      ACS 5.x Policy Model
  Authorization Profiles for Network Access
Policy Conditions
You can define simple conditions in rule tables based on attributes in:
Customizable conditions—You can create custom conditions based on protocol dictionaries and
identity dictionaries that ACS knows about. You define custom conditions in a policy rule page; you
cannot define them as separate condition objects.
Standard conditions—You...

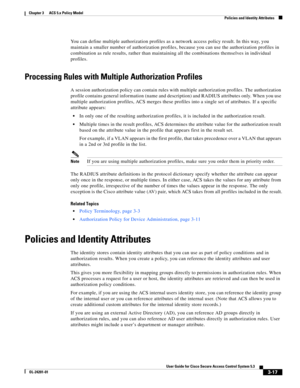

3-17
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 3      ACS 5.x Policy Model
  Policies and Identity Attributes
You can define multiple authorization profiles as a network access policy result. In this way, you
maintain a smaller number of authorization profiles, because you can use the authorization profiles in
combination as rule results, rather than maintaining all the combinations themselves in individual
profiles.
Processing Rules with Multiple Authorization...

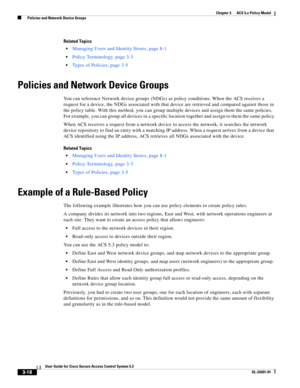

3-18
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 3      ACS 5.x Policy Model
  Policies and Network Device Groups
Related Topics
Managing Users and Identity Stores, page 8-1
Policy Terminology, page 3-3
Types of Policies, page 3-5
Policies and Network Device Groups
You can reference Network device groups (NDGs) as policy conditions. When the ACS receives a
request for a device, the NDGs associated with that device are retrieved and compared against those in
the policy...
