Comdial Dsu II Non-LCD Telephone Reference Manual

3.10 Automatic Redialing (Auto-Redial)
If the last number you have called is busy or is not answering, use this
feature. Once activated, it automatically redials the number once a
minute for 10 minutes.
•To activate automatic redial,
1. Press button programmed for that purpose (one you have labeled
“auto-redial”).
2. Number will be dialed once a minute for 10 minutes; when party
answers,lift handset.
•If called number is still busy after 10 automatic dialing attempts
by the system,
1. Press auto-redial...

3.11 Speed Dialing
Speed dialing is autodialing using the keypad buttons.Stationnumbers
are personal numbers (i.e., business associates, travel agencies, etc.)
that are used only by you.Systemnumbers are public numbers (i.e.,
the corporate office, the company lawyer, etc.) that may be accessed
from every station.
Make sure you have a list of the system speed dial numbers.
NOTE: If you manually choose a line for dialing, press HOLD before
using a speed dial. If you place a call on hold prior to using
your...

3.12 Last Number Redialing
The last number dialed can be automatically redialed with a one- or
two-button action:
1. Press#(if on line listening to dial tone,
pressHOLD,thenpress#).
2. Listen for ringing or busy tone.
Ringing tone:when party answers, pick up handset.
Busy tone:pressSPEAKERto disconnect.
3.13 Saved Number Redialing
The first 16 digits of the last manually dialed number can be saved for
later redial.
•To save the number,
1. Press button preprogrammed for this purpose. The saved number...

This page remains blank intentionally.

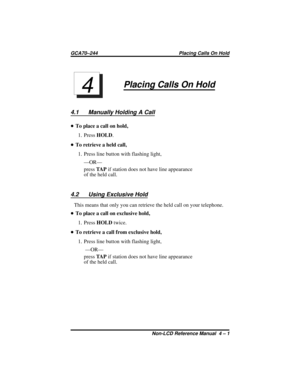

Placing Calls On Hold
4.1 Manually Holding A Call
•To place a call on hold,
1. PressHOLD.
•To retrieve a held call,
1. Press line button with flashing light,
—OR—
pressTA Pif station does not have line appearance
of the held call.
4.2 Using Exclusive Hold
This means that only you can retrieve the held call on your telephone.
•To place a call on exclusive hold,
1. PressHOLDtwice.
•To retrieve a call from exclusive hold,
1. Press line button with flashing light,
—OR—
pressTA Pif station does not have line...

4.3 Using Direct Station Hold
(parking a call to a station)
•To place a call on hold at another telephone (directed hold),
1. While on line, pressINTERCOM(this places the outside
call on hold),
2. DialS90plus the extension number of the
station receiving the call.
•To cancel a direct hold call from station that placed call on hold,
1. PressINTERCOM.
2. DialS4plus extension number of the station holding the call (this
reconnects you to the outside line).
•To retrieve a direct hold call from another...

4.5 Using The Hold Recall Feature
After a preprogrammed length of time, a call placed on hold will
automatically ring back to the telephone that placed it on hold.
If the call is on exclusive hold, it will revert to manual hold after the
hold recall time period. The call can then be retrieved by anyone with
that line appearance.
GCA70–244 Placing Calls On Hold
Non-LCD Reference Manual 4 – 3

This page remains blank intentionally.

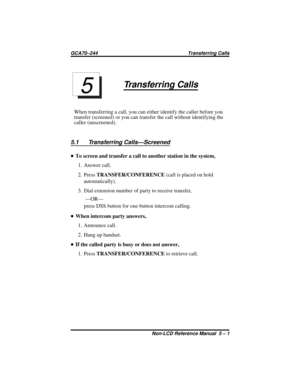

Transferring Calls
When transferring a call, you can either identify the caller before you
transfer (screened) or you can transfer the call without identifying the
caller (unscreened).
5.1 Transferring Calls—Screened
•To screen and transfer a call to another station in the system,
1. Answer call.
2. PressTRANSFER/CONFERENCE(call is placed on hold
automatically).
3. Dial extension number of party to receive transfer,
—OR—
press DSS button for one-button intercom calling.
•When intercom party answers,
1....

5.2 Transferring Calls—Unscreened
•To transfer an unscreened call to another station in the system,
1. Answer call.
2. PressTRANSFER/CONFERENCE(call is placed on hold).
3. Dial extension number of party to receive transfer,
—OR—
press DSS button for one-button intercom calling.
4. Hang up handset.
NOTE: If the station to which unscreened transfers are made is busy,
the transferred calls will camp-on at the station. Each call will
automatically ring the station when it becomes idle.
•To answer a...
