Comdial Quick Q Acd Installation Guide

DXP021D
*Customer-supplied
9-pin to 25-pin
adapter (optional)
Serial Data
Port 9-pin
D Connector
Serial Data Port
25-pin D Connector
Rear View of
Typical Personal
Computer (PC)
Kit-Supplied
Modular
to 25-pin
EIA adapter
RS-232 Ports (Server End)
DSR (Data Set Ready) and DTR (Data Terminal Ready) are connected kit-supplied inside modular to 25-pin adapter.
RS-232 1
RS-232 2
1=RTS
2 = CTS
3=RD
4=TD
5 = GND
6=NC(Request To Send)
(Clear To Send)
(Receive Data)
(Transmit Data)
(Ground)
(No Connection)
1
2
3...

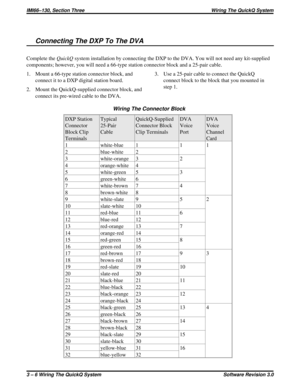

Connecting The DXP To The DVA
Complete theQuickQsystem installation by connecting the DXP to the DVA. You will not need any kit-supplied
components; however, you will need a 66-type station connector block and a 25-pair cable.
1. Mount a 66-type station connector block, and
connect it to a DXP digital station board.
2. Mount the QuickQ-supplied connector block, and
connect its pre-wired cable to the DVA.3. Use a 25-pair cable to connect the QuickQ
connect block to the block that you mounted in
step 1....

QUICK002
QuickQ-
Supplied And
Punched-Down
25-Pair Cable
Male 50-Pin
Connector
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
501
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
45
46
48
49
50 Station 1
Station 1
Station 2
Station 2
Station 3
Station 3
Station 4
Station 4
Station 5
Station 5
Station 6
Station 6
Station 7
Station 7
Station 8
Station 8
Station 9
Station 9
Station...

Connecting Wallboards To The Personal Computer
When optional mono or color wallboards are being used with theQuickQsystem, you will need to connect them
to a RS485 network. The RS485 network interfaces with a converter box that plugs into COM4, one of the RS232
serial ports on the rear of the personal computer.
1.Check to make sure that the personal computer
has a properly configured RS232 serial port for
driving the wallboards. This port must be
configured as COM4 and IRQ10.
2.Plug one end of a type A...

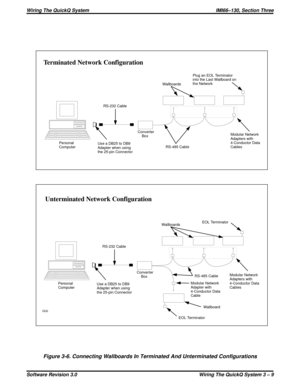

Figure 3-6. Connecting Wallboards In Terminated And Unterminated Configurations
Plug an EOL Terminator
into the Last Wallboard on
the Network
RS-232 Cable
Converter
Box
RS-485 Cable Use a DB25 to DB9
Adapter when using
the 25-pin Connector Personal
ComputerWallboards
Modular Network
Adapters with
4-Conductor Data
Cables
Terminated Network Configuration
Unterminated Network Configuration
EOL Terminator
RS-232 Cable
Converter
BoxRS-485 Cable
Use a DB25 to DB9
Adapter when using
the 25-pin Connector...

Connecting The QuickQ PROTECKEY
You must connect the suppliedQuickQPROTECKEY to the computer’s parallel port. Refer to Figure 3-7 for
details.
CAUTION
The system will not function if you fail to connect the QuickQ PROTECKEY.
Connecting AC Power To The DVA
Before applying power to the DVA, check all wiring
connections and ensure that you have properly
configured the Voice Channel Card as described in
Section 6,Reviewing The QuickQ DVA Components.
Always employ a dedicated 115VAC 15 AMP circuit,
with a...

Reviewing The System Interconnection
Compare your system interconnection with the Figure 3-8 illustration.
QUICK05C
QuickQ-
Supplied And
Punched-Down
25-Pair Cable
Kit-Supplied
Modular
Jack
Kit-Supplied Line Cord
Kit-
Supplied
Line
Cord Kit-
Supplied
Modular
Jack
Kit-
Supplied
Modular
JackTo
COM2
PortTo
Parallel
PortTo
COM1
Port
Kit-Supplied
Line Cord
House WiringHouse
Wiring
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46...

This page remains blank intentionally.

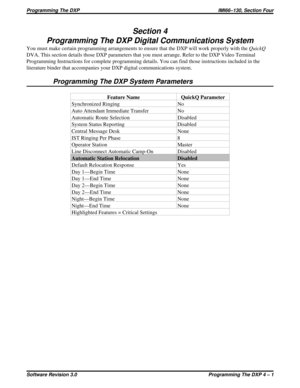

Section 4
Programming The DXP Digital Communications System
You must make certain programming arrangements to ensure that the DXP will work properly with theQuickQ
DVA. This section details those DXP parameters that you must arrange. Refer to the DXP Video Terminal
Programming Instructions for complete programming details. You can find those instructions included in the
literature binder that accompanies your DXP digital communications system.
Programming The DXP System Parameters
Feature Name QuickQ...

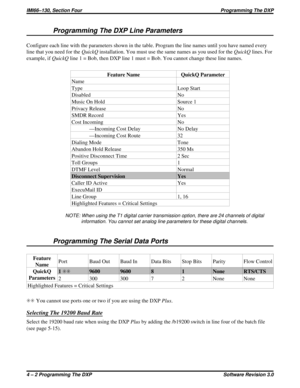

Programming The DXP Line Parameters
Configure each line with the parameters shown in the table. Program the line names until you have named every
line that you need for theQuickQinstallation. You must use the same names as you used for theQuickQlines. For
example, ifQuickQline 1 = Bob, then DXP line 1 must = Bob. You cannot change these line names.
Feature Name QuickQ Parameter
Name
Type Loop Start
Disabled No
Music On Hold Source 1
Privacy Release No
SMDR Record Yes
Cost Incoming No
—Incoming Cost Delay...
