Comdial Toal Control Pc Attendant Console Instructions Manual

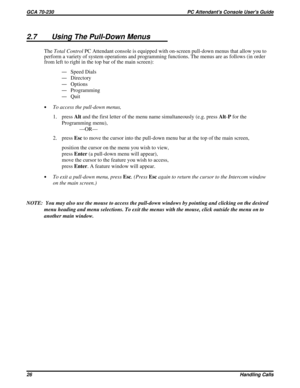

2.7 Using The Pull-Down Menus
TheTotal ControlPC Attendant console is equipped with on-screen pull-down menus that allow you to
perform a variety of system operations and programming functions. The menus are as follows (in order
from left to right in the top bar of the main screen):
—Speed Dials
—Directory
—Options
—Programming
—Quit
·To access the pull-down menus,
1. pressAltand the first letter of the menu name simultaneously (e.g. pressAlt-Pfor the
Programming menu),
—OR—
2. pressEscto move the cursor...

EscHelp
MuteHeadsetI.D. Split
ParkBothRetrieve TrackerSerial ConfOverflowPage
LineTA P
Intercom
NJI *
8
BHU &
7
VGY ^
6
CFT %
5
XDR $
4
ZSE #
3
AW @
2
Q !
1
Silent
MKO (
9

:
:
+
=
?
/


_
-
PickMessagePrint
ScreenPause
Scroll
Lock
Page
Down Page
Up Home Insert
Delete
EndHold
A
n
s
w
e
r Num
Lock
#*
SysReq
Volume
DownVolume
Up
CtrlShift Ta b
Shift Caps Lock
Enter Backspace
Ctrl AltAlt
Break
QZ
GHI
PRS
OPERATOR
ABC
JKL
TUVDEF
MNO
WXY
Transfer
R
e
l
e
a
s
e
Num Caps Scroll
Lock
LockLock
1
4
7
02
5
83
6...

2.7.1 Using The Pull-Down Menu Features
Speed Dials

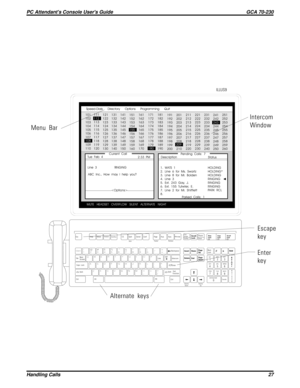

You can use the Speed Dials pull-down menu to view and/or dial one of 200 pre-programmed DXP
system speed dial numbers.
Directory
Selecting the Directory pull-down menu activates a window that contains lines and columns for you to
enter the appropriate intercom names and numbers for your system (see 3.1.4 “Directory—Creating And
Editing” ) . The Directory pull-down menu can be used to dial an intercom number—simply position the
cursor on the desired...

Programming
The Programming menu allows you to access programming functions that set the System’s
parameters. The options include the following:
—Set Date/Time
—Set Volume
—Speed Dials
—Line Greetings
—Other Greetings
—Text Messaging
—Keyboard Macros
—Tracker
NOTE:  Please refer to the Setting System Parameters chapter of this guide for information on how to use the
features in the Programming menu.
Quit
SelectingExit PC Attendantallows you to exit the PC Attendant system so that DXP system
programming...

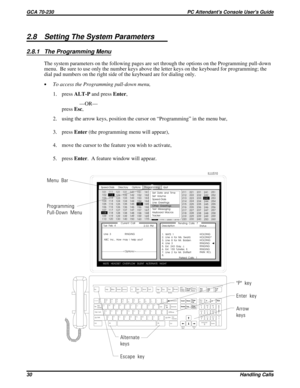

2.8 Setting The System Parameters
2.8.1 The Programming Menu
The system parameters on the following pages are set through the options on the Programming pull-down
menu. Be sure to use only the number keys above the letter keys on the keyboard for programming; the
dial pad numbers on the right side of the keyboard are for dialing only.
·To access the Programming pull-down menu,
1. pressALT-Pand pressEnter,
—OR—
pressEsc,
2. using the arrow keys, position the cursor on “Programming” in the menu bar,
3....

2.8.2 Setting The Date And Time
The current date and time appear in the Current Call window when the main screen is displayed.
·To change the date and time,
1. activate the Programming pull-down menu,
2. pressALT-Pand pressEnter,
—OR—
pressEscto move the cursor into the menu bar from the main screen, position the cursor on
“Programming,” and pressEnter,
3. move the cursor to highlight  “Set Date and Time,”
4. pressEnter(a small Date and Time window will appear),
5. type in the new date,
6. pressEnterto...

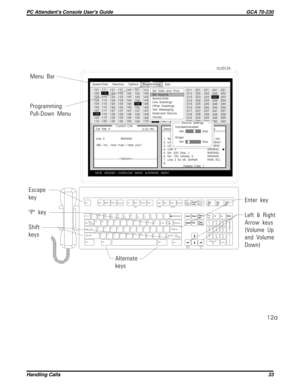

2.8.3 Setting The Volume
The PC Attendant’s handset and headset have a single volume control with seven separate levels that can
be adjusted through the Programming menu option “Set Volume.” As well, the ringer volume at the PC
Attendant console can be adjusted separately through this menu option.
·To change the handset/headset or ringer volume,
1. activate the Programming pull-down menu,
2. pressALT-Pand pressEnter,
—OR—
pressEscto move the cursor into the menu bar from the main screen, position the...

101
102
103
104
105
106
107
109
110111
113
114
115
116
117
118
119
120121
122
123
124
125
126
127
128
129
130131
132
133
134
135
136
137
138
139
140141
142
143
144
145
146
147
148
149
150151
152
153
154
156
157
158
159
160161
162
163
164
165
166
167
168
169
170171
172
173
174
175
176
177
178
179181
182
183
184
185
186
187
188
189
190191
192
193
194
195
196
197
198
199
200201
202
203
204
205
206
207
208
210211
212
213
214
215
216
217
218
219
220221
222
223
224
225
226
227
228
229
230231
232
233
234
235...

2.8.4 System Speed-Dial Directory—Editing and Creating
System speed dials (the DXP system provides 200 such numbers, the DXPPlusallows for 500) allow you
and the other users in your system to make outside calls without dialing an entire telephone number. The
Speed Dials option on the Programming pull-down menu allows you to program or edit speed dial
numbers. If your system has software release 7A or later, you must enter your station 10 password to edit
speed dial numbers. This is not required on...

2.8.5 Line Greetings
As an attendant, you may be called on to answer lines for many different departments or divisions within
the same company, or you may need to answer telephones for more than one company.  When call traffic
is heavy, it’s not always easy to remember what you are supposed to say when answering a particular line
(for example, “ABC Marketing” may be the required greeting on one line, and “ABC Company—How
may I direct your call?” may be required on another).
Line greetings are designed to...
