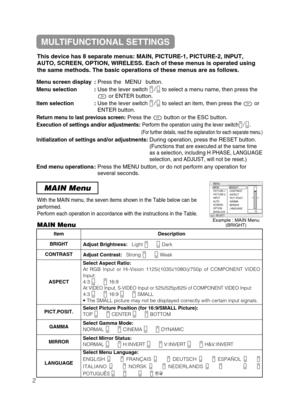

MAIN Menu
ItemDescription
BRIGHT Adjust Brightness:Light ñDark
CONTRASTAdjust Contrast:Strong ñWeak
ASPECT
Select Aspect Ratio:
At RGB Input or Hi-Vision 1125i(1035i/1080i)/750p of COMPONENT VIDEO
Input:
4:3 ñ16:9
At VIDEO Input, S-VIDEO Input or 525i/525p/625i of COMPONENT VIDEO Input:4:3 ñ16:9 ñSMALL
• The SMALL picture may not be displayed correctly with certain input signals.
PICT.POSIT.Select Picture Position (for 16:9/SMALL Picture):
TOP ñCENTER ñBOTTOM
GAMMASelect Gamma Mode:
NORMAL...

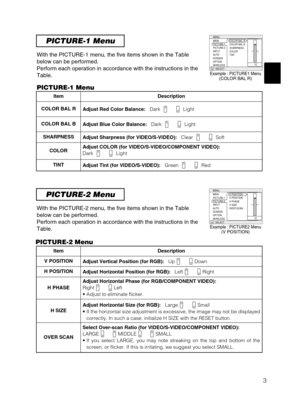

PICTURE-1 Menu
PICTURE-2 Menu
With the PICTURE-1 menu, the five items shown in the Table
below can be performed.
Perform each operation in accordance with the instructions in the
Table.
With the PICTURE-2 menu, the five items shown in the Table
below can be performed.
Perform each operation in accordance with the instructions in the
Table.
ItemDescription
COLOR BAL R Adjust Red Color Balance:Dark ñLight
COLOR BAL BAdjust Blue Color Balance:Dark ñLight
SHARPNESSAdjust Sharpness (for VIDEO/S-VIDEO):Clear...

MULTIFUNCTIONAL SETTINGS (continued)

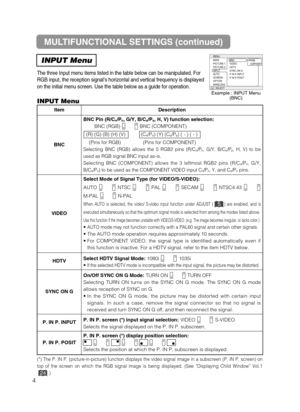

INPUT Menu
The three Input menu items listed in the table below can be manipulated. For
RGB input, the reception signal’s horizontal and vertical frequency is displayed
on the initial menu screen. Use the table below as a guide for operation.
4
Example : INPUT Menu
(BNC)
MENU
: SELECT
MAIN
PICTURE-1
PICTURE-2
INPUT
AUTO
SCREEN
OPTION
WIRELESSBNC
VIDEO
HDTV
SYNC ON G
P. IN P. INPUT
P. IN P. POSITRGBCOMPONENT
ItemDescription
BNC
BNC Pin (R/CR/PR, G/Y, B/CB/PB, H, V)...

5

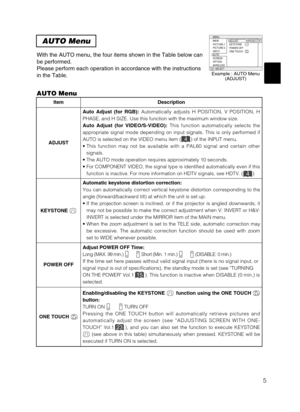

AUTO Menu
With the AUTO menu, the four items shown in the Table below can
be performed.
Please perform each operation in accordance with the instructions
in the Table.
ItemDescription
ADJUST
Auto Adjust (for RGB):Automatically adjusts H POSITION, V POSITION, H
PHASE, and H SIZE. Use this function with the maximum window size.
Auto Adjust (for VIDEO/S-VIDEO):This function automatically selects the
appropriate signal mode depending on input signals. This is only performed if
AUTO is selected on the VIDEO...

MULTIFUNCTIONAL SETTINGS (continued)
6

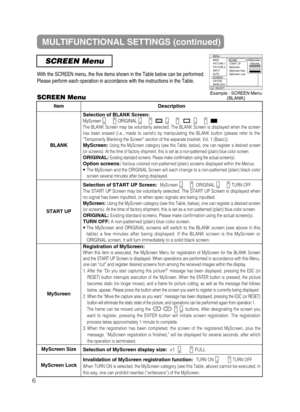

SCREEN Menu
With the SCREEN menu, the five items shown in the Table below can be performed.
Please perform each operation in accordance with the instructions in the Table.
SCREEN Menu
ItemDescription
BLANK
Selection of BLANK Screen:MyScreen ñORIGINAL ñ.. ñ. . ñ..The BLANK Screen may be voluntarily selected. The BLANK Screen is displayed when the screen
has been erased (i.e., made to vanish) by manipulating the BLANK button (please refer to the
“Temporarily...

7

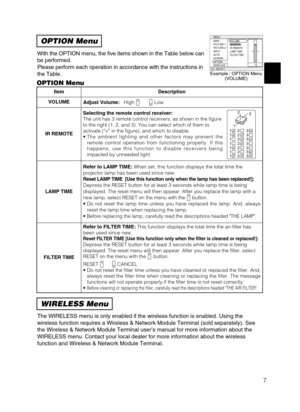

OPTION Menu
With the OPTION menu, the five items shown in the Table below can
be performed.
Please perform each operation in accordance with the instructions in
the Table.
WIRELESS Menu
The WIRELESS menu is only enabled if the wireless function is enabled. Using the
wireless function requires a Wireless & Network Module Terminal (sold separately). See
the Wireless & Network Module Terminal user’s manual for more information about the
WIRELESS menu. Contact your local dealer for more information about...

8

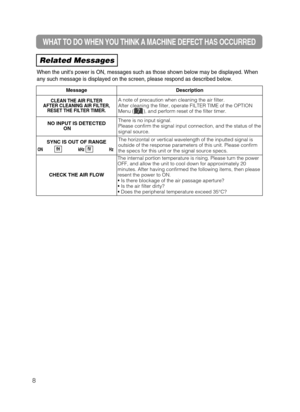

WHAT TO DO WHEN YOU THINK A MACHINE DEFECT HAS OCCURRED
Related Messages
When the units power is ON, messages such as those shown below may be displayed. When
any such message is displayed on the screen, please respond as described below.
MessageDescription
CLEAN THE AIR FILTER
AFTER CLEANING AIR FILTER,
RESET THE FILTER TIMER.A note of precaution when cleaning the air filter.
After cleaning the filter, operate FILTER TIME of the OPTION
Menu (       ), and perform reset of the filter timer.
NO INPUT...

9

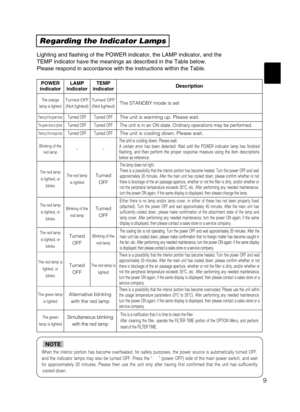

Regarding the Indicator Lamps
Lighting and flashing of the POWER indicator, the LAMP indicator, and the
TEMP indicator have the meanings as described in the Table below.
Please respond in accordance with the instructions within the Table.
POWER
indicatorLAMP
indicatorTEMP
indicatorDescription
The orange
lamp is lightedTurned OFF
(Not lighted)Turned OFF
(Not lighted)The STANDBY mode is set
Flashing of the green lampTurned OFFTurned OFFThe unit is warming up. Please wait.
The green lamp is lightedTurned...

10

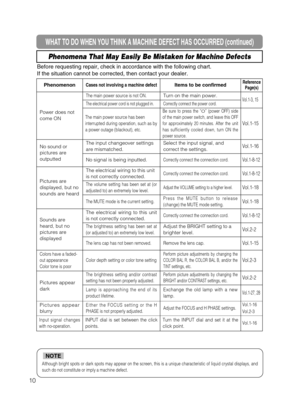

WHAT TO DO WHEN YOU THINK A MACHINE DEFECT HAS OCCURRED (continued)
Phenomena That May Easily Be Mistaken for Machine Defects
Before requesting repair, check in accordance with the following chart.
If the situation cannot be corrected, then contact your dealer.
Although bright spots or dark spots may appear on the screen, this is a unique characteristic of liquid crystal displays, and
such do not constitute or imply a machine defect.
NOTE
PhenomenonCases not involving a machine defectItems to be...

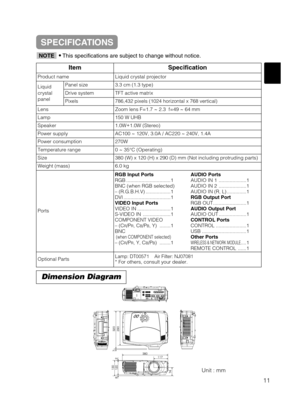

Dimension Diagram
Unit : mm





•This specifications are subject to change without notice.NOTE
SPECIFICATIONS
11
ItemSpecification
Product nameLiquid crystal projector
Liquid
crystal
panelPanel size3.3 cm (1.3 type)
Drive systemTFT active matrix
Pixels786,432 pixels (1024 horizontal x 768 vertical)
LensZoom lens F=1.7 ~ 2.3  f=49 ~ 64 mm
Lamp150 W UHB
Speaker1.0W+
1.0W (Stereo)
Power supplyAC100 ~ 120V, 3.0A / AC220 ~ 240V, 1.4A
Power consumption270W
Temperature range0 ~ 35°C...
