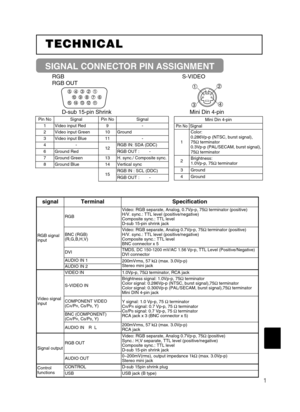

Page 51
1 TECHNICAL TECHNICAL SIGNAL CONNECTOR PIN ASSIGNMENT RGB RGB OUT D-sub 15-pin Shrink Mini Din 4-pinS-VIDEO Mini Din 4-pin Pin NoSignal 1 Color: 0.286Vp-p (NTSC, burst signal), 75Ωterminator 0.3Vp-p (PAL/SECAM, burst signal), 75Ωterminator 2Brightness: 1.0Vp-p, 75Ωterminator 3Ground 4Ground signalTerminalSpecification RGB signal input RGB Video: RGB separate, Analog, 0.7Vp-p, 75Ωterminator (positive) H/V. sync.: TTL level (positive/negative) Composite sync.: TTL level D-sub 15-pin shrink jack BNC (RGB)...

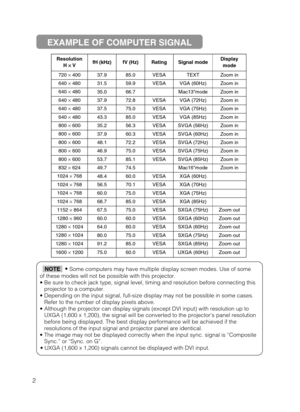

Page 52
2 EXAMPLE OF COMPUTER SIGNAL •Some computers may have multiple display screen modes. Use of some of these modes will not be possible with this projector. • Be sure to check jack type, signal level, timing and resolution before connecting this projector to a computer. • Depending on the input signal, full-size display may not be possible in some cases. Refer to the number of display pixels above. • Although the projector can display signals (except DVI input) with resolution up to UXGA (1,600 x 1,200),...

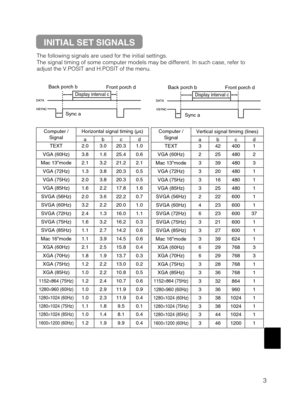

Page 53
3 The following signals are used for the initial settings. The signal timing of some computer models may be different. In such case, refer to adjust the V.POSIT and H.POSIT of the menu. DATA HSYNCDATA VSYNCDisplay interval c Back porch b Sync aFront porch d Display interval c Back porch b Sync aFront porch d Computer / SignalHorizontal signal timing (µs) abcd TEXT2.03.020.31.0 VGA (60Hz)3.81.625.40.6 Mac 13mode2.13.221.22.1 VGA (72Hz)1.33.820.30.5 VGA (75Hz)2.03.820.30.5 VGA (85Hz)1.62.217.81.6 SVGA...

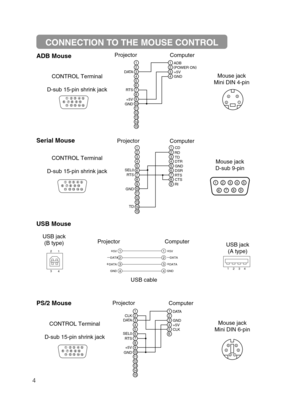

Page 54
4 123 4 5 6 78 910 11 12 13 14 15 CONNECTION TO THE MOUSE CONTROL 1 2 3 4 1 2 3 4 +5V — DATA +DATA GND +5V — DATA +DATA GND1 234 2 1 3 4 USB jack (B type) USB jack (A type)Projector USB cable Computer ADB Mouse 21 43 65 21 43 87 109 1211 1413 15 RTS GND+5VADB GND+5V ( POWER ON) D ATA 2143 Mouse jack Mini DIN 4-pin Projector Computer CONTROL Terminal D-sub 15-pin shrink jack Serial Mouse 21 43 65 21 43 65 87 10987 9 1211 1413 15 RICD RD TD DTR GND DSR CTS RTS RTS GND SEL0 TD 2143 6 5 897 Mouse jack...

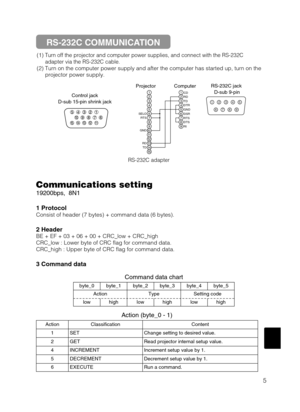

Page 55
5 (1) Turn off the projector and computer power supplies, and connect with the RS-232C adapter via the RS-232C cable. (2) Turn on the computer power supply and after the computer has started up, turn on the projector power supply. Control jack D-sub 15-pin shrink jack123456789101112131415 RD TD GND SELO RTS 123456789 CD RD TD DTR GND DSR RTS DTS RI 12345 67 89 RS-232C jack D-sub 9-pin Projector Computer Communications setting 19200bps, 8N1 1 Protocol Consist of header (7 bytes) + command data (6...

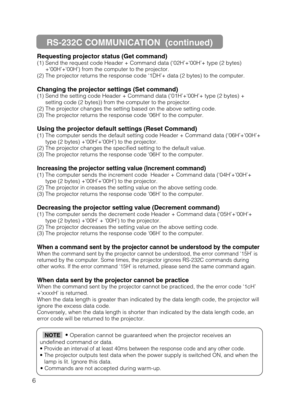

Page 56
6Requesting projector status (Get command) (1) Send the request code Header + Command data (‘02H’+‘00H’+ type (2 bytes) +‘00H’+‘00H’) from the computer to the projector. (2) The projector returns the response code ‘1DH’+ data (2 bytes) to the computer. Changing the projector settings (Set command) (1) Send the setting code Header + Command data (‘01H’+‘00H’+ type (2 bytes) + setting code (2 bytes)) from the computer to the projector. (2) The projector changes the setting based on the above setting code....

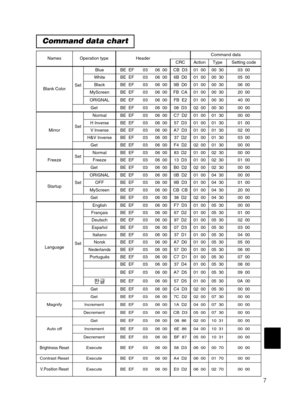

Page 57
7 Command data chart NamesOperation typeHeaderCommand data CRCActionTypeSetting code Blank ColorSet BlueBE EF0306 00CB D301 0000 3003 00 WhiteBE EF0306 006B D001 0000 3005 00 BlackBE EF0306 009B D001 0000 3006 00 MyScreenBE EF0306 00FB CA01 0000 3020 00 ORIGNALBE EF0306 00FB E201 0000 3040 00 GetBE EF0306 0008 D302 0000 3000 00 MirrorSet NormalBE EF0306 00C7 D201 0001 3000 00 H InverseBE EF0306 0057 D301 0001 3001 00 V lnverseBE EF0306 00A7 D301 0001...
Page 58
8 Command data chart (continued) NamesOperation typeHeaderCommand data CRCActionTypeSetting code H.Position ResetExecuteBE EF0306 00IC D306 0003 7000 00 H.Size ResetExecuteBE EF0306 0068 D206 0004 7000 00 Color Balance R ResetExecuteBE EF0306 0094 D306 0005 7000 00 Color Balance B ResetExecuteBE EF0306 00D0 D306 0006 7000 00 Sharpness ResetExecuteBE EF0306 00C4 D006 0009 7000 00 Color ResetExecuteBE EF0306 0080 D006 000A 7000 00 Tint ResetExecuteBE EF0306 007C...

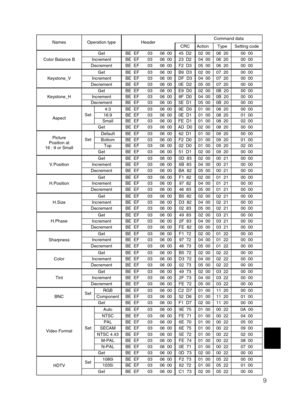

Page 59
9 NamesOperation typeHeaderCommand data CRCActionTypeSetting code Color Balance BGetBE EF0306 0045 D202 0006 2000 00IncrementBE EF0306 0023 D204 0006 2000 00DecrementBE EF0306 00F2 D305 0006 2000 00 Keystone_VGetBE EF0306 00B9 D302 0007 2000 00IncrementBE EF0306 00DF D304 0007 2000 00DecrementBE EF0306 000E D205 0007 2000 00 Keystone_HGetBE EF0306 00E9 D002 000B 2000 00IncrementBE EF0306 008F D004 000B 2000 00DecrementBE EF0306 005E D105 000B 2000 00...

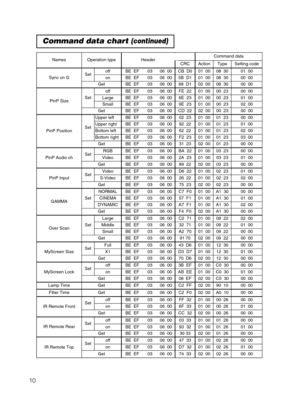

Page 60
10 Command data chart (continued) NamesOperation typeHeaderCommand data CRCActionTypeSetting code Sync on GSetoffBE EF0306 00CB D001 0008 3001 00 onBE EF0306 005B D101 0008 3000 00 GetBE EF0306 0068 D102 0008 3000 00 PinP SizeSet offBE EF0306 00FE 2201 0000 2300 00 LargeBE EF0306 006E 2301 0000 2301 00 SmallBE EF0306 009E 2301 0000 2302 00 GetBE EF0306 00CD 2202 0000 2300 00 PinP PositionSet Upper leftBE EF0306 0002 2301 0001 2300 00 Upper rightBE EF0306...
