Dukane Projector 8934A User Manual

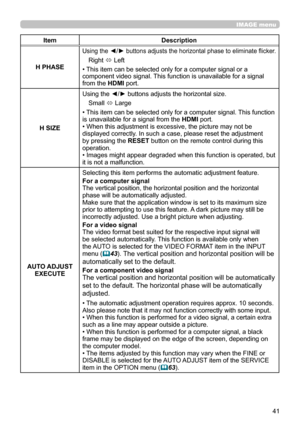

41
IMAGE menu
ItemDescription
H PHASE
Using the ◄/► buttons adjusts the horizontal phase to eliminate flicker.
Right  ó Left
• This item can be selected only for a computer signal or a
component video signal. This function is unavailable for a signal
from the HDMI port.
H SIZE Using the ◄/► buttons adjusts the horizontal size.
Small  ó Large
• This item can be selected only for a computer signal. This function
is unavailable for a signal from the  HDMI port.
• When this adjustment is excessive, the...

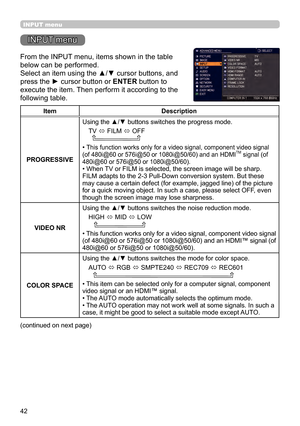

42
INPUT menu
INPUT menu
From the INPUT menu, items shown in the table
below can be performed.
Select an item using the ▲/▼ cursor buttons, and
press the ► cursor button or ENTER button to
execute the item. Then perform it according to the
following table.
ItemDescription
PROGRESSIVE Using the ▲/▼ buttons switches the progress mode.
TV  ó FILM
ó OFF

• This function works only for a video signal, component video signal
(of 480i@60 or 576i@50 or 1080i@50/60) and an HDMITM signal (of
480i@60 or...

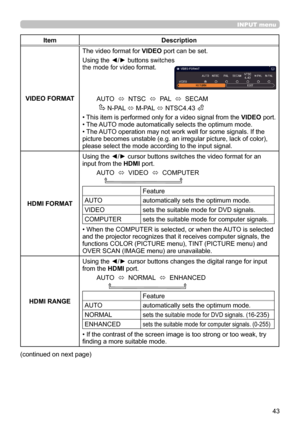

43
INPUT menu
ItemDescription
VIDEO FORMAT The video format for VIDEO port can be set.
Using the ◄/► buttons
switches
the mode for video format.
AUTO   ó  NTSC
ó  PAL
ó  SECAM
      N-PAL  ó M-PAL
ó NTSC4.43
• This item is performed only for a video signal from the  VIDEO port.
• The AUTO mode automatically selects the optimum mode.
• The AUTO operation may not work well for some signals. If the
picture becomes unstable (e.g. an irregular picture, lack of color),
please select the mode...

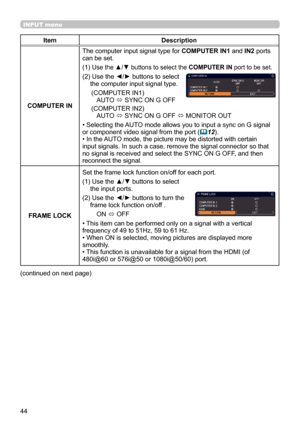

44
INPUT menu
ItemDescription
COMPUTER IN The computer input signal type for
COMPUTER IN1 and IN2 ports
can be set.
(1)
 Use the ▲/▼ buttons to select the  COMPUTER IN port to be set.
(2)  Use the ◄/► buttons to select
the computer input signal type.
     (COMPUTER IN1) AUTO  ó SYNC ON G OFF
     (COMPUTER IN2) AUTO  ó SYNC ON G OFF
ó MONITOR OUT
• Selecting the AUTO mode allows you to input a sync on G signal
or component video signal from the port (
 12).
• In the AUTO mode, the picture may be...

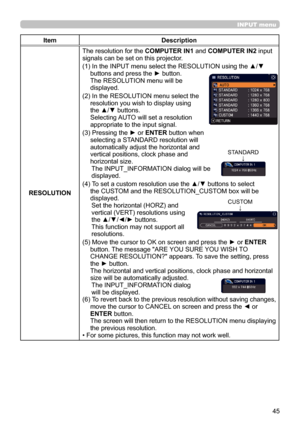

45
INPUT menu
ItemDescription
RESOLUTION The resolution for the
COMPUTER IN1 and COMPUTER IN2 input
signals can be set on this projector.
(1)
 In the INPUT menu select the RESOLUTION using the ▲/▼
buttons and press the ► button.
The RESOLUTION menu will be
displayed.
(2)
 In the RESOLUTION menu select the
resolution you wish to display using
the ▲/▼ buttons.
Selecting AUTO will set a resolution
appropriate to the input signal.
(3)
 Pressing the ► or ENTER button when
selecting a STANDARD...

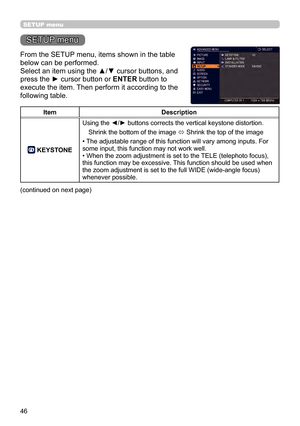

46
SETUP menu
SETUP menu
From the SETUP menu, items shown in the table
below can be performed.
Select an item using the ▲/▼ cursor buttons, and
press the ► cursor button or ENTER button to
execute the item. Then perform it according to the
following table.
ItemDescription
 KEYSTONEUsing the ◄/► buttons corrects the vertical keystone distortion.
Shrink the bottom of the image  ó Shrink the top of the image
• The adjustable range of this function will vary among inputs. For
some input, this function...

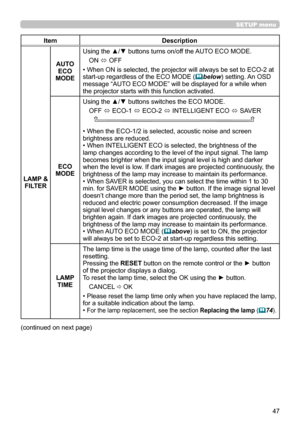

47
SETUP menu
ItemDescription
LAMP &  FILTER AUTO
ECO
MODE Using the ▲/▼ buttons turns on/off the AUTO ECO MODE.
ON  ó OFF
• When ON is selected, the projector will always be set to ECO-2 at
start-up regardless of the ECO MODE (
 below
) setting. An OSD
message “AUTO ECO MODE” will be displayed for a while when
the projector starts with this function activated.
ECO
MODE Using the ▲/▼ buttons switches the ECO MODE.
OFF  ó ECO-1
ó ECO-2
ó INTELLIGENT ECO
ó SAVER
• When the ECO-1/2 is selected,...

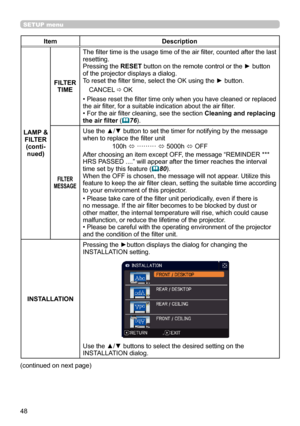

48
SETUP menu
ItemDescription
LAMP &  FILTER(conti-nued) FILTER
TIME The filter time is the usage time of the air filter, counted after the last
resetting.
Pressing the RESET button on the remote control or the ► button
of the projector displays a dialog.
To reset the filter time, select the OK using the ► button.
CANCEL
 ð OK
•
Please reset the filter time only when you have cleaned or replaced
the air filter, for a suitable indication about the air filter.
• For the air filter cleaning, see the...

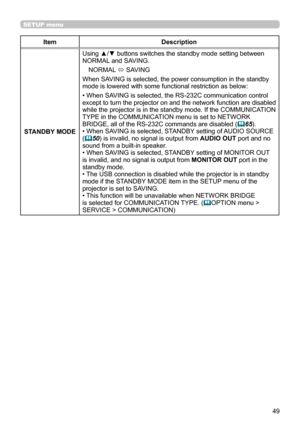

49
ItemDescription
STANDBY MODE Using ▲/▼ buttons switches the standby mode setting between
NORMAL and SAVING.
NORMAL  ó SAVING
When SAVING is selected, the power consumption in the standby
mode is lowered with some functional restriction as below:
• When SAVING is selected, the RS-232C communication control
except to turn the projector on and the network function are disabled
while the projector is in the standby mode. If the COMMUNICATION
TYPE in the COMMUNICATION menu is set to NETWORK
BRIDGE,...

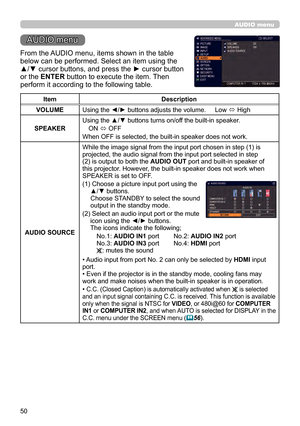

50
AUDIO menu
AUDIO menu
From the AUDIO menu, items shown in the table
below can be performed. Select an item using the
▲/▼ cursor buttons, and press the ► cursor button
or the ENTER button to execute the item. Then
perform it according to the following table.

ItemDescription
VOLUME Using the ◄/► buttons adjusts the volume.     Low
ó High
SPEAKER Using the ▲/▼ buttons turns on/off the built-in speaker.
ON  ó OFF
When OFF is selected, the built-in speaker does not work.
AUDIO SOURCE While the image...
