Dukane Projector 8934A User Manual

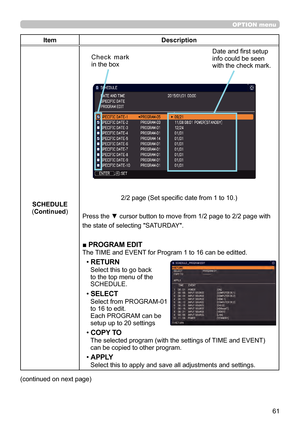

61
OPTION menu
ItemDescription
SCHEDULE
(Continued ) 2/2 page (Set specific date from 1 to 10.)
Press the ▼ cursor button to move from 1/2 page to 2/2 page with
the state of selecting "SATURDAY".
■ PROGRAM EDIT
The TIME and EVENT for Program 1 to 16 can be editted.
• RETURN
Select this to go back
to the top menu of the
SCHEDULE.
• SELECT
Select from PROGRAM-01
to 16 to edit.
Each PROGRAM can be
setup up to 20 settings
• COPY TO
The selected program (with the settings of TIME and EVENT)
can...

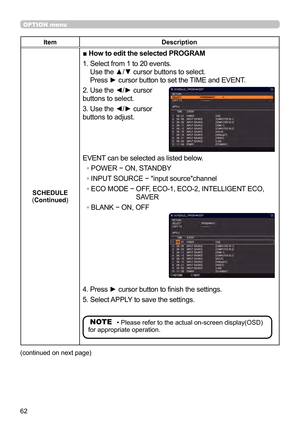

62
OPTION menu
ItemDescription
SCHEDULE
(Continued )
■ How to edit the selected PROGRAM
1.
 Select from 1 to 20 events.
Use the ▲/▼ cursor buttons to select.
Press ► cursor button to set the TIME and EVENT.
2. Use the ◄/► cursor
buttons to select.
3. Use the ◄/► cursor
buttons to adjust.
EVENT can be selected as listed below. ◦ POWER − ON, ST

ANDBY
◦ INPUT SOURCE − "input source"channel
◦
ECO MODE −  OFF, ECO-1, ECO-2, INTELLIGENT ECO,
SAVER
◦ BLANK − ON, OFF
4. Press ► cursor button to...

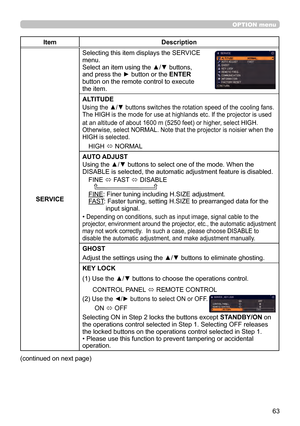

63
OPTION menu
ItemDescription
SERVICE Selecting this item displays the SERVICE
menu.
Select an item using the ▲/▼ buttons,
and press the ► button or the ENTER
button on the remote control to execute
the item.
ALTITUDE
Using the ▲/▼ buttons switches the rotation speed of the cooling fans.
The HIGH is the mode for use at highlands etc. If the projector is used
at an altitude of about 1600 m (5250 feet) or higher, select HIGH.
Otherwise, select NORMAL. Note that the projector is noisier when the...

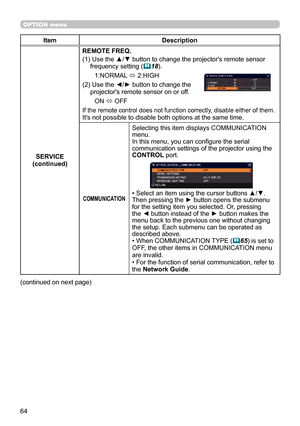

64
OPTION menu
ItemDescription
SERVICE
(continued) REMOTE FREQ.
(1)
  Use the ▲/▼ button to change the projector's remote sensor
frequency setting
(
18).
1:NORMAL  ó 2:HIGH
(2)
  Use the ◄/► button to change the
projector's remote sensor on or off. ON  ó OFF
If the remote control does not function correctly, disable either of them.It's not possible to disable both options at the same time.
COMMUNICATION
Selecting this item displays COMMUNICATION
menu.
In this menu, you can configure the...

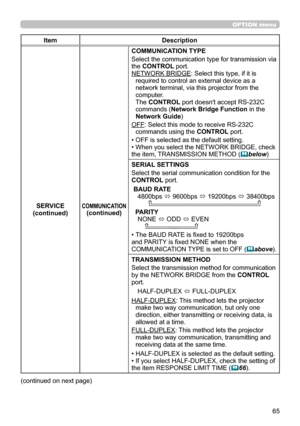

65
OPTION menu
ItemDescription
SERVICE
(continued)
COMMUNICATION(continued)
COMMUNICATION TYPE
Select the communication type for transmission via
the CONTROL port.
NETWORK BRIDGE: Select this type, if it is  required to control an external device as a
network terminal, via this projector from the
computer.
The CONTROL port doesn't accept RS-232C
commands (Network Bridge Function  in the
Network Guide)
OFF: Select this mode to receive RS-232C  commands using the  CONTROL port.
• OFF is selected...

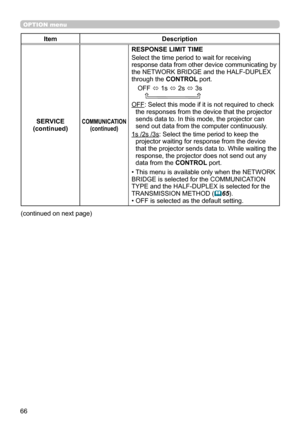

66
OPTION menu
ItemDescription
SERVICE
(continued)
COMMUNICATION (continued)
RESPONSE LIMIT TIME
Select the time period to wait for receiving
response data from other device communicating by
the NETWORK BRIDGE and the HALF-DUPLEX
through the CONTROL port.
OFF  ó 1s
ó 2s
ó 3s

OFF: Select this mode if it is not required to check  the responses from the device that the projector
sends data to. In this mode, the projector can
send out data from the computer continuously.
1s /2s /3s: Select the...

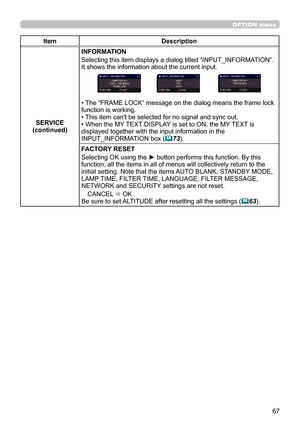

67
OPTION menu
ItemDescription
SERVICE
(continued) INFORMATION
Selecting this item displays a dialog titled “INPUT_INFORMATION”.
It shows the information about the current input.
• The “FRAME LOCK” message on the dialog means the frame lock
function is working.
• This item can't be selected for no signal and sync out.
• When the MY TEXT DISPLAY is set to ON, the MY TEXT is
displayed together with the input information in the
INPUT_INFORMATION box (

73).
FACTORY RESET
Selecting OK using the ►...

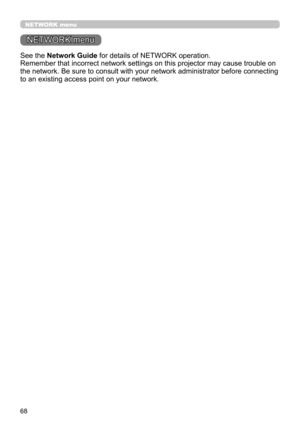

68
NETWORK menu
NETWORK menu
See the Network Guide for details of NETWORK operation.
Remember that incorrect network settings on this projector may cause trouble on
the network. Be sure to consult with your network administrator before connecting
to an existing access point on your network.

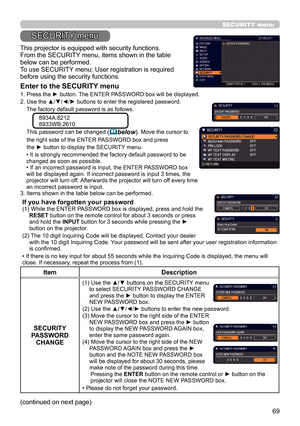

69
SECURITY menu
(continued on next page) This projector is equipped with security functions.
From the SECURITY menu, items shown in the table
below can be performed.
To use SECURITY menu: User registration is required
before using the security functions.
Enter to the SECURITY menu
1.  Press the ► button. The ENTER PASSWORD box will be displayed.
2.
 Use the ▲/▼/◄/► buttons to enter the registered password.
    The factory default password is as follows.


    This password can be changed...

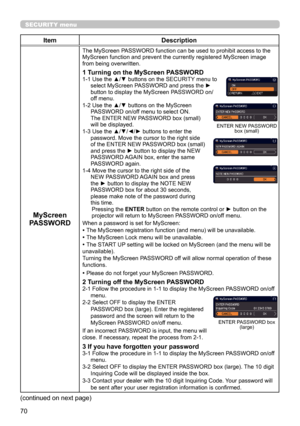

70
SECURITY menu
ItemDescription
MyScreen
PASSWORD
The MyScreen PASSWORD function can be used to prohibit access to the
MyScreen function and prevent the currently registered MyScreen image
from being overwritten.
1 Turning on the MyScreen PASSWORD1-1  Use the ▲/▼ buttons on the SECURITY menu to
select MyScreen PASSWORD and press the ►
button to display the MyScreen PASSWORD on/
off menu.
1-2
 Use the ▲/▼ buttons on the MyScreen
PASSWORD on/off menu to select ON.
The ENTER NEW PASSWORD box...
