Video Input
Use	the	Point 	◄►	buttons 	to 	adjust 	the 	gamma 	value 	to
obtain	a	better	balance	of	contrast	(from	0	to	15).
Gamma
Press	 the	Point	◄	button	 to	decrease	 the	sharpness	 of	the
image;	 press	the	Point	►	button	 to	increase	 the	sharpness
of	the	image	(from	0	to	15).
Sharpness
An	interlaced	 video	signal	 can	be	displayed	 in	progressive
mode.	Select	one	of	the	following	options.
	Off	.........	Disabled.
	 L1
	..........	For	an	active	picture.
	 L2	..........	For	a	still	picture....

42
Video Input
This	projector	has	the	picture	screen	resize	function,	which	enables	you	to	customize	the	image	size.
Normal
Screen Size Adjustment
Screen Menu1
2
Provide	the	image	at	the	4:3	normal	video	aspect	ratio.
Custom
Note:
	 •	When	no	signal	is	detected,	Normal	is	set
automatically.
	 •	The	adjustable	range	for	Scale H/V	and
Position H/V	is	limited	depending	on	the
input	signal.
	 •	wide	cannot	be	operated	when	720p,
1035i	or	1080i	is	selected	in	the	 AV
System	Menu	(p.38).
wide
Provide	the...

43
Setting
Setting
Language
The	language	used	in	the	On-Screen	Menu	is	available	in
English,	German,	French,	Italian,	Spanish,	Portuguese,
Dutch,	Swedish,	Finnish,	Polish,	Hungarian,	Romanian,
Russian,	Chinese,	Korean,	japanese,Thai	and	Turkish.
Setting Menu
Press	the	MENU	button	to	display	the	On-Screen
Menu.	Press	the	Point	▲▼	buttons	to	select	Setting
and	press	the	Point	►	or	the	SELECT	button	to	access
the	submenu	items.
1
2Use	the	Point	▲▼	buttons	to	select	the	desired	item
and	then	press	the...

44
Setting
Note:
	 •	Auto Keystone	corrects	vertical	distortion	only,
not	correct	horizontal	distortion.
	 •	The	 Auto	Keystone	function	cannot	work	when
the	Ceiling	feature	is	set	On	in	the	Setting	menu
(p.49).
	 •	Perfect	correction	of	the	image	distortion	cannot
be	ensured	with	the	 Auto	setup	function.	If	the
distortion	is	not	corrected	properly	by	pressing	the
AUTO	SETUP	or	the	AUTO	SET 	button,	adjust
manually	by	pressing	the	KEYSTONE	button	on
the	remote	control	or	selecting	Keystone	in...

45
Setting
Keystone
This	function	is	used	to	store	or	reset	the	keystone
correction	when	the	AC	power	cord	is	unplugged.
	Store	.......	Keep 	the 	keystone 	correction 	even 	when 	the
AC	power	cord	is	unplugged.
	 Reset	.......	Release	 the	keystone	 correction	 when	the	AC
power	cord	is	unplugged.
To	correct	keystone	distortion,	press	the	SELECT 	button.
Keystone	appears	on	the	screen.	Use	the	Point	▲▼	buttons
to	correct	keystone	distortion	(p.23).
Background
Select	the	background	screen	for	when...

46
Setting
Logo (Logo and Logo PIN code lock settings)
Logo selectThis	function	allows	you	to	customize	the	screen	logo	with
Logo select,	capture,	Logo PIN code lock	and	Logo PIN
code change
	functions.
Note:
	 		When	On	is	selected	in	the	Logo	PIN	code	lock	function,
Logo select	and	Capture	functions	cannot	be	selected.
Logo select
This	function	decides	on	the	starting-up	display	from
among	following	options.
	User	........	Show	the	image	you	captured.
	 Default	....	Show	the	factory-set	logo....

47
Setting
Capture
Capture
This	function	enables	you	to	capture	an	image	being
projected	to	use	it	for	a	starting-up	display	or	interval	of
presentations.
Select	Capture	and	press	the	SELECT	button.
A	confirmation	box	appears	and	select	yes	to	capture	the
projected	image.
After 	capturing 	the 	projected 	image, 	go 	to 	the 	Logo 	select
function	 and	set	it	to	User.	Then	 the	captured	 image	will	be
displayed	the	next	time	you	turn	on	the	projector.
To	cancel	the	capture	function,	select	yes	in...

48
Setting
Enter a Logo PIN code
Use	the	Point	▲▼	buttons	to	enter	a	number.	Press	the
Point	◄►	buttons	to	fix	the	number	and	move	the	red
frame	pointer	to	the	next	box.	The	number	changes	to
.	If	you	fixed	an	incorrect	number,	use	the	Point	◄►
buttons	to	move	the	pointer	to	the	number	you	want	to
correct,	and	then	enter	the	correct	number.
Repeat	this	step	to	complete	entering	a	four-digit
number.
After	entering	 the	four-digit	 number,	move	the	pointer	 to
Set.	Press	 the	SELECT 	button	 so...

49
Setting
Ceiling
Rear
Ceiling
When	this	function	 is	set	 to	On,	the	 picture	 will	be	top/
bottom 	and 	left/right 	reversed. 	This 	function 	is 	used 	to
project	the	image	from	a	ceiling-mounted	projector.
Rear
When	 this	function	 is	set	 to	On,	the	 picture	 will	be	left/right
reversed. 	This 	function 	is 	used 	to 	project 	the 	image 	from
rear	of	the	screen.
Terminal
TerminalThe
COMPUTER	 IN	2/MONITOR	 OUT	terminal	 on	the	 back
of	the	 projector	 is	switchable	 for	computer	 input	or...

50
Setting

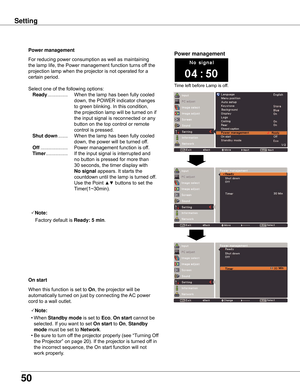

Power management
Time	left	before	Lamp	is	off.
Power management
For	reducing	power	consumption	as	well	as	maintaining
the	lamp	life,	the	Power	management	function	turns	off	the
projection	lamp	when	the	projector	is	not	operated	for	a
certain	period.
Select	one	of	the	following	options:
Ready	...............	 When	the	lamp	has	been	fully	cooled
down,	the	POWER	indicator	changes
to	green	blinking.	In	this	condition,
the	projection	lamp	will	be	turned	on	if
the	input	signal	is	reconnected...
