user manual
Washer-dryer
EWW 126410 W


Electrolux. Thinking of you.
Share more of our thinking at www.electrolux.com
Contents
Safety information    2
Product description    4
Control panel    5
First use    8
Personalisation    8
Daily use    9
Use - Drying    12
Helpful hints and tips    13
Drying Hints    14 Washing programmes    15
Drying Programmes    18
Care and cleaning    18
What to do if…    23
Technical data    25
Consumption values    26
Installation    26
Electrical connection    29
Environment concerns    30
  Subject to change...

Installation
• This appliance is heavy. Care should be
taken when moving it.
• When unpacking the appliance, check that it is not damaged. If  in doubt, do not use it
and contact the Service Centre.
• All packing and transit bolts must be re- moved before use. Serious damage can
occur to the product an d to property if this
is not adhered to. See relevant section in
the user manual.
• After having installe d the appliance, check
that it is not  standing on the inlet and drain
hose and the worktop  is...

clockwise until the groove is horizontal. If
necessary use a coin.To disable this device and restore the pos-
sibility of closing the  door, rotate the but-
ton counterclockwise  until the groove is
vertical.
Product description
Your new appliance meets all modern requir ements for effective treatment of laundry
with low water, energy and detergent consum ption. Its new washing system allows total
use of detergent and reduces wate r consumption so saving energy.
12
3
4
5
6
1Detergent dispenser drawer...

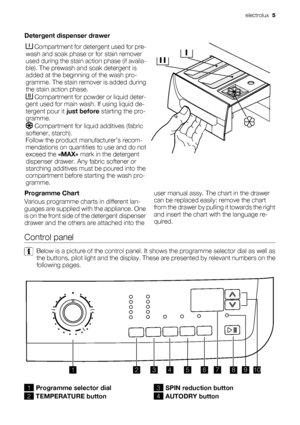

Detergent dispenser drawer
 Compartment for detergent used for pre-
wash and soak phase or for stain remover
used during the stain  action phase (if availa-
ble). The prewash and soak detergent is
added at the beginning of the wash pro-
gramme. The stain remover is added during
the stain action phase.
 Compartment for powder or liquid deter-
gent used for main wash. If using liquid de-
tergent pour it  just before starting the pro-
gramme.
 Compartment for liquid additives (fabric
softener, starch)....

5DRYING TIME button
6DELAY START button
7Display
8
START/PAUSE button
9EXTRA RINSE pilot light
10 TIME MANAGER buttons

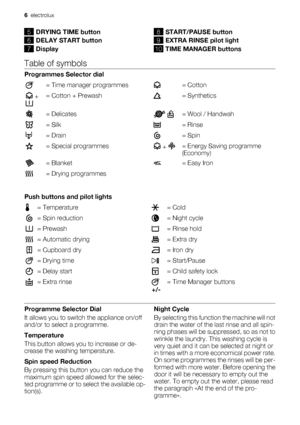

Table of symbols
Programmes Selector dial
= Time manager programmes  = Cotton
 += Cotton + Prewash  = Synthetics
= Delicates   = Wool / Handwah
= Silk  = Rinse
= Drain  = Spin
= Special programmes   + = Energy Saving programme
(Economy)
= Blanket  = Easy Iron
= Drying programmes

Push buttons and pilot lights
= Temperature  = Cold
= Spin reduction  = Night cycle
= Prewash  =...

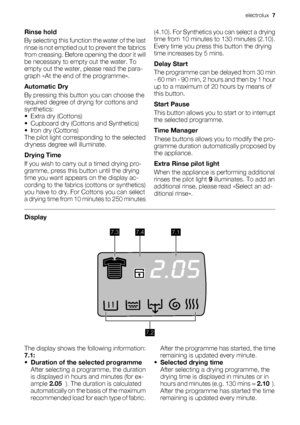

Rinse hold
By selecting this function the water of the last
rinse is not emptied out to prevent the fabrics
from creasing. Before opening the door it will
be necessary to empty out the water. To
empty out the water, please read the para-
graph «At the end of the programme».
Automatic Dry
By pressing this butt on you can choose the
required degree of drying for cottons and
synthetics:
•Extra dry (Cottons)
• Cupboard dry (Cottons and Synthetics)
• Iron dry (Cottons)
The pilot light corresponding to the...

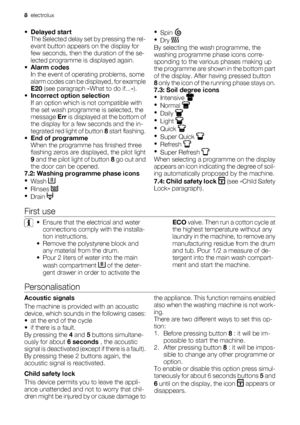

•Delayed start
The Selected delay set by pressing the rel-
evant button appears on the display for
few seconds, then the duration of the se-
lected programme is displayed again.
• Alarm codes
In the event of operating problems, some
alarm codes can be displayed, for example
E20  (see paragraph «What to do if...»).
• Incorrect option selection
If an option which is not compatible with
the set wash programme is selected, the
message  Err is displayed at the bottom of
the display for a few seconds and the...

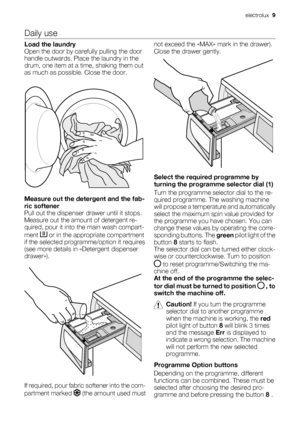

Daily use
Load the laundry
Open the door by carefully pulling the door
handle outwards. Place the laundry in the
drum, one item at a ti me, shaking them out
as much as possible. Close the door.
Measure out the detergent and the fab-
ric softener
Pull out the dispenser dr awer until it stops.
Measure out the amount of detergent re-
quired, pour it into  the main wash compart-
ment
 or in the appropriate compartment
if the selected programme/option it requires
(see more details in «Detergent dispenser...

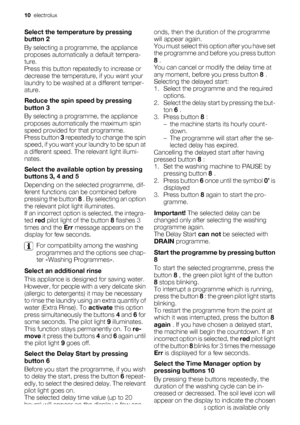

Select the temperature by pressing
button 2
By selecting a programme, the appliance
proposes automatically a default tempera-
ture.
Press this button repeatedly to increase or
decrease the temperature, if you want your
laundry to be washed at a different temper-
ature.
Reduce the spin speed by pressing
button 3
By selecting a programme, the appliance
proposes automatically the maximum spin
speed provided for that programme.
Press button  3 repeatedly to change the spin
speed, if you want your laundry to...
