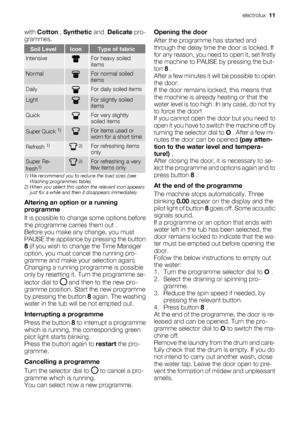

with Cotton  , Synthetic  and  Delicate  pro-
grammes.
Soil LevelIconType of fabric
IntensiveFor heavy soiled
items
NormalFor normal soiled
items
DailyFor daily soiled items
LightFor slightly soiled
items
QuickFor very slightly
soiled items
Super Quick 1)For items used or
worn for a short time
Refresh 1) 2)For refreshing items
only
Super Re-
fresh1) 2)For refreshing a very
few items only
1) We recommend you to reduce the load sizes (see
Washing programmes table).
2) When you select this option the...

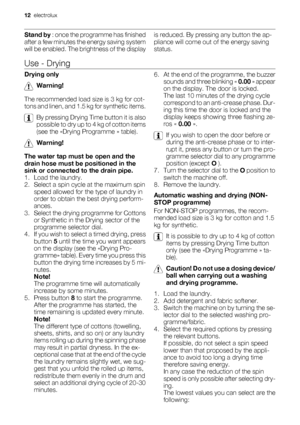

Stand by : once the programme has finished
after a few minutes the  energy saving system
will be enabled. The brightness of the display is reduced. By pressing
 any button the ap-
pliance will come out of the energy saving
status.
Use - Drying
Drying only
Warning!
The recommended load size is 3 kg for cot-
tons and linen, and 1.5 kg for synthetic items.
By pressing Drying Time button it is also
possible to dry up to 4 kg of cotton items
(see the «Drying Programme » table).
Warning!
The water tap must be...

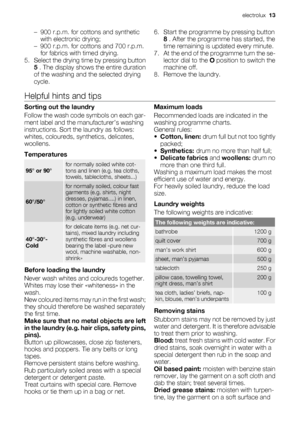

– 900 r.p.m. for cottons and syntheticwith electronic drying;
– 900 r.p.m. for cottons and 700 r.p.m. for fabrics with timed drying.
5. Select the drying time by pressing button
5 . The display shows the entire duration
of the washing and the selected drying
cycle. 6. Start the programme
by pressing button
8  . After the programme has started, the
time remaining is u pdated every minute.
7. At the end of the pr ogramme turn the se-
lector dial to the  O position to switch the
machine off.
8. Remove the...

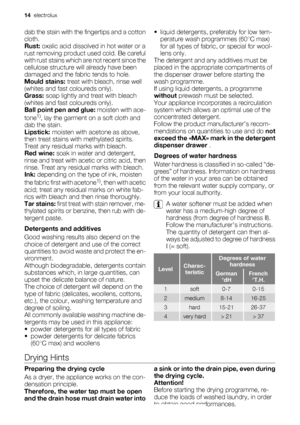

dab the stain with the fingertips and a cotton
cloth.
Rust: oxalic acid dissolved in hot water or a
rust removing product used cold. Be careful
with rust stains which  are not recent since the
cellulose structure w ill already have been
damaged and the fabric tends to hole.
Mould stains:  treat with bleach, rinse well
(whites and fast coloureds only).
Grass:  soap lightly and treat with bleach
(whites and fast coloureds only).
Ball point pen and glue:  moisten with ace-
tone
1), lay the garment on a...

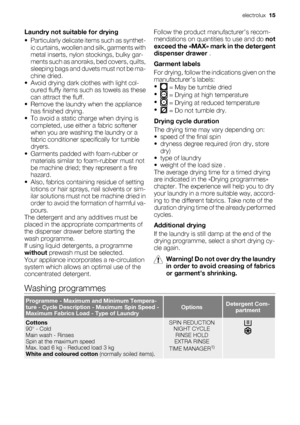

Laundry not suitable for drying
• Particularly delicate items such as synthet-
ic curtains, woollen and silk, garments with
metal inserts, nylon stockings, bulky gar-
ments such as anorak s, bed covers, quilts,
sleeping bags and duvets must not be ma-
chine dried.
• Avoid drying dark clothes with light col- oured fluffy items such as towels as these
can attract the fluff.
• Remove the laundry  when the appliance
has finished drying.
• To avoid a static ch arge when drying is
completed, use either  a...

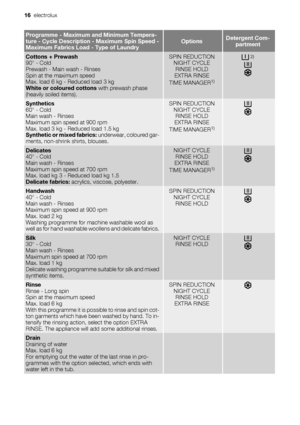

Programme - Maximum and Minimum Tempera-
ture - Cycle Description - Maximum Spin Speed -
Maximum Fabrics Load - Type of LaundryOptionsDetergent Com-
partment
Cottons + Prewash
90° - Cold
Prewash - Main wash - Rinses
Spin at the maximum speed
Max. load 6 kg - Reduced load 3 kg
White or coloured cottons  with prewash phase
(heavily soiled items).SPIN REDUCTION NIGHT CYCLERINSE HOLD
EXTRA RINSE
TIME MANAGER
1)
 2)
Synthetics
60° - Cold
Main wash - Rinses
Maximum spin speed at 900 rpm
Max. load 3 kg -...

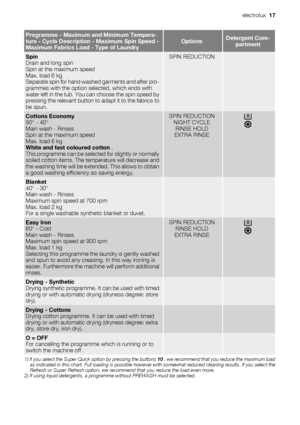

Programme - Maximum and Minimum Tempera-
ture - Cycle Description - Maximum Spin Speed -
Maximum Fabrics Load - Type of LaundryOptionsDetergent Com-
partment
Spin
Drain and long spin
Spin at the maximum speed
Max. load 6 kg
Separate spin for hand wash ed garments and after pro-
grammes with the option selected, which ends with
water left in the tub. You can choose the spin speed by
pressing the relevant button to adapt it to the fabrics to
be spun.SPIN REDUCTION
Cottons Economy
90° - 40°
Main wash -...

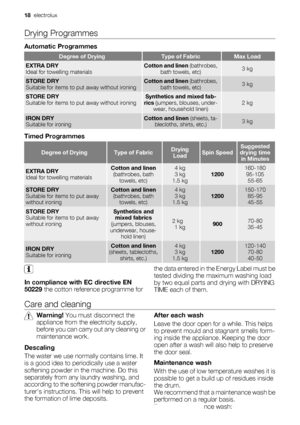

Drying Programmes
Automatic Programmes
Degree of DryingType of FabricMax Load
EXTRA DRY
Ideal for towelling materialsCotton and linen (bathrobes,
bath towels, etc)3 kg
STORE DRY
Suitable for items to put away without ironingCotton and linen  (bathrobes,
bath towels, etc)3 kg
STORE DRY
Suitable for items to put away without ironingSynthetics and mixed fab-
rics  (jumpers, blouses, under-
wear, household linen)2 kg
IRON DRY
Suitable for ironingCotton and linen  (sheets, ta-
blecloths, shirts, etc.)3 kg...

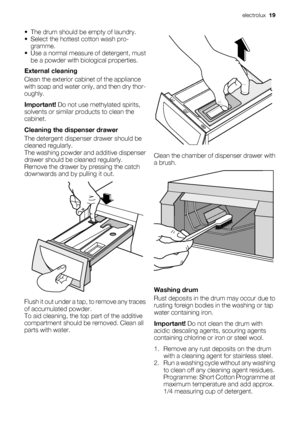

• The drum should be empty of laundry.
• Select the hottest cotton wash pro-gramme.
• Use a normal measure of detergent, must
be a powder with biological properties.
External cleaning
Clean the exterior cabin et of the appliance
with soap and water on ly, and then dry thor-
oughly.
Important!  Do not use methylated spirits,
solvents or similar products to clean the
cabinet.
Cleaning the dispenser drawer
The detergent dispense r drawer should be
cleaned regularly.
The washing powder an d additive...

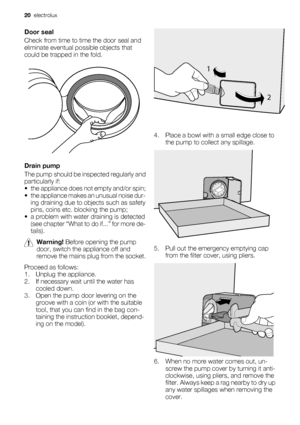

Door seal
Check from time to time the door seal and
eliminate eventual possible objects that
could be trapped in the fold.
Drain pump
The pump should be in spected regularly and
particularly if:
• the appliance does not empty and/or spin;
• the appliance makes an unusual noise dur- ing draining due to objects such as safety
pins, coins etc. blocking the pump;
• a problem with water draining is detected (see chapter “What to do if...” for more de-
tails).
Warning!  Before opening the pump
