Configuration Menu Functions
Configuration Menu
TW500_English
(Setting is not possible when composite video, S-Video or analogue-RGB signals are
being input.)

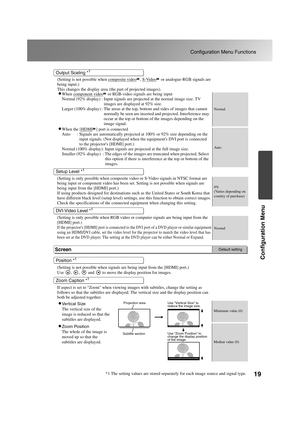

This changes the display area (the part of projected images).
•When component video or RGB-video signals are being input
Normal (92% display) : Input signals are projected at the normal image size. TV
images are displayed at 92% size.
Larger (100% display) : The areas at the top, bottom and sides of images that cannot
normally be seen are...

20
Configuration Menu Functions
TW500_English
(If the aspect mode is set to Wide, keystone correction cannot be set.)

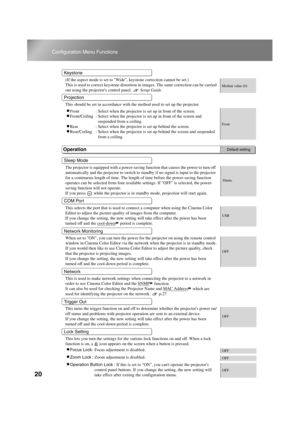

This is used to correct keystone distortion in images. The same correction can be carried
out using the projectors control panel. Setup Guide
Median value (0)
This should be set in accordance with the method used to set up the projector.
•Front : Select when the projector is set up in front of the screen.
•Front/Ceiling : Select when the projector is set up in front of the screen and...

21
Configuration Menu Functions
Configuration Menu
TW500_English

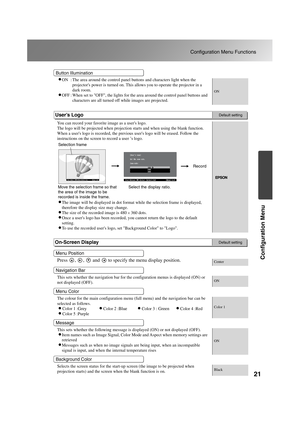

•ON : The area around the control panel buttons and characters light when the
projectors power is turned on. This allows you to operate the projector in a
dark room.
•OFF : When set to OFF, the lights for the area around the control panel buttons and
characters are all turned off while images are projected.ON
You can record your favorite image as a users logo.
The logo will be projected when projection starts and when using the blank...

22
Configuration Menu Functions
TW500_English
Reset menu

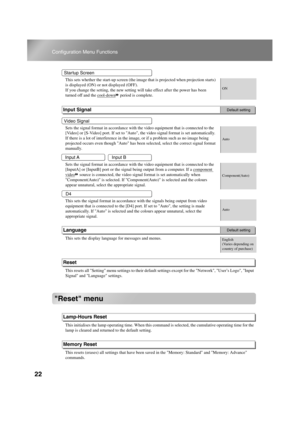

This sets whether the start-up screen (the image that is projected when projection starts)
is displayed (ON) or not displayed (OFF).
If you change the setting, the new setting will take effect after the power has been
turned off and the cool-down
 period is complete.
ON
Sets the signal format in accordance with the video equipment that is connected to the
[Video] or [S-Video] port. If set to Auto, the video signal format is set automatically.
If...

23
Configuration Menu Functions
Configuration Menu
TW500_English
Using the Configuration Menus
Displaying a menu
Selecting a menu item
Use   and   to select a menu item, then press  .
Changing settings
Example:
If you press   when an item with   next to it is selected, the selection screen for that item
will be displayed.
To return to a previous screen, press   or select [Return] and then press  .
When setting is complete
Press .
This resets all configuration menu settings to their default settings. The...

24
TW500_English
Preparation for Using Cinema Color Editor

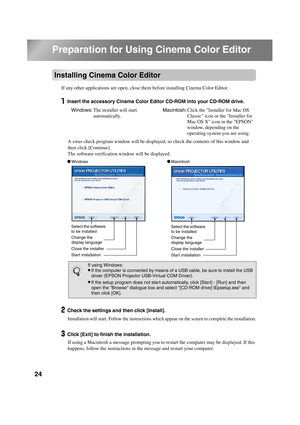

Installing Cinema Color Editor
If any other applications are open, close them before installing Cinema Color Editor.
Insert the accessory Cinema Color Editor CD-ROM into your CD-ROM drive.
A virus check program window will be displayed, so check the contents of this window and
then click [Continue].
The software verification window will be displayed.
Check the settings and then click [Install].
Installation will start. Follow the instructions...

25
Preparation for Using Cinema Color Editor
Adjusting projected images using a computer
TW500_English

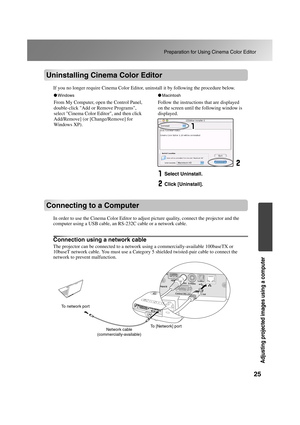

Uninstalling Cinema Color Editor
If you no longer require Cinema Color Editor, uninstall it by following the procedure below.
Connecting to a Computer
In order to use the Cinema Color Editor to adjust picture quality, connect the projector and the
computer using a USB cable, an RS-232C cable or a network cable.
Connection using a network cable
The projector can be connected to a network using a...

26
Preparation for Using Cinema Color Editor
TW500_English

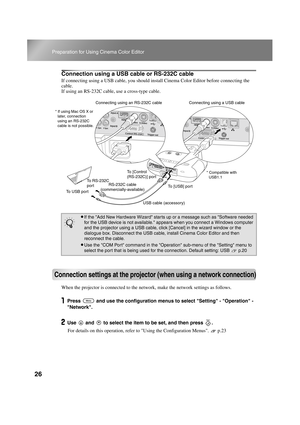

Connection using a USB cable or RS-232C cable
If connecting using a USB cable, you should install Cinema Color Editor before connecting the
cable.
If using an RS-232C cable, use a cross-type cable.
Connection settings at the projector (when using a network connection)
When the projector is connected to the network, make the network settings as follows.
Press   and use the configuration menus to select Setting - Operation -
Network.
Use   and...

27
Preparation for Using Cinema Color Editor
Adjusting projected images using a computer
TW500_English

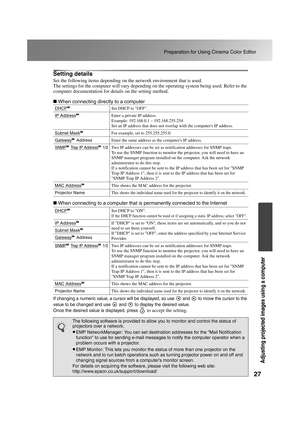

Setting details
Set the following items depending on the network environment that is used.
The settings for the computer will vary depending on the operating system being used. Refer to the
computer documentation for details on the setting method.
 When connecting directly to a computer
 When connecting to a computer that is permanently connected to the Internet
If changing a numeric value, a cursor...

28
TW500_English

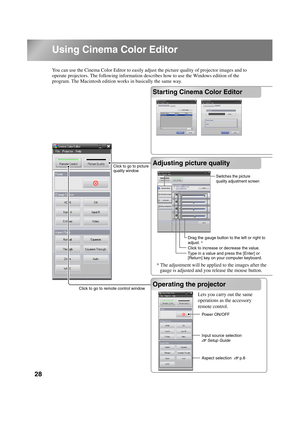

Using Cinema Color Editor
You can use the Cinema Color Editor to easily adjust the picture quality of projector images and to
operate projectors. The following information describes how to use the Windows edition of the
program. The Macintosh edition works in basically the same way.
Starting Cinema Color Editor
Adjusting picture quality
Operating the projector
Click to go to remote control window
Drag the gauge button to the left or right to
adjust. *
Click to increase or decrease the...
