Using Cinema Color Editor
Adjusting projected images using a computer
TW500_English

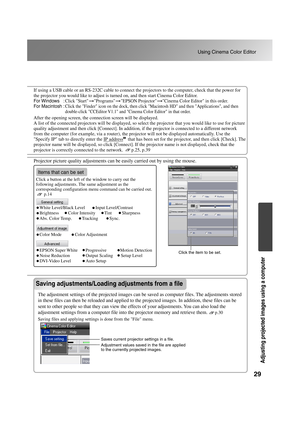

Saving adjustments/Loading
adjustments from a file
If using a USB cable or an RS-232C cable to connect the projectors to the computer, check that the power for
the projector you would like to adjust is turned on, and then start Cinema Color Editor.
For Windows :Click Start     Programs     EPSON Projector     Cinema Color Editor in this order.
For Macintosh :Click the Finder icon on the dock, then click Macintosh HD...

30
Using Cinema Color Editor
TW500_English

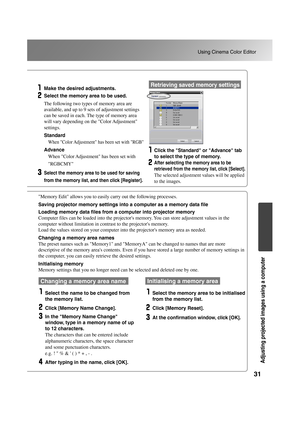

Saving customised settings
into memory
Saving/loading memory settings and
editing memory area names

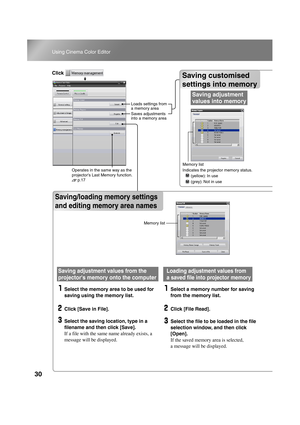

Saving customised
settings into memory
Select the memory area to be used for
saving using the memory list.
Click [Save in File].
Select the saving location, type in a
filename and then click [Save].
If a file with the same name already exists, a
message will be displayed.
Saving adjustment
values into memory
Operates in the same way as the
projectors Last...

31
Using Cinema Color Editor
Adjusting projected images using a computer
TW500_English
Make the desired adjustments.
Select the memory area to be used.
The following two types of memory area are
available, and up to 9 sets of adjustment settings
can be saved in each. The type of memory area
will vary depending on the Color Adjustment
settings.
Standard
When Color Adjustment has been set with RGB
Advance
When Color Adjustment has been set with
RGBCMY
Select the memory area to be used for saving
from...

32
TW500_English
Problem Solving

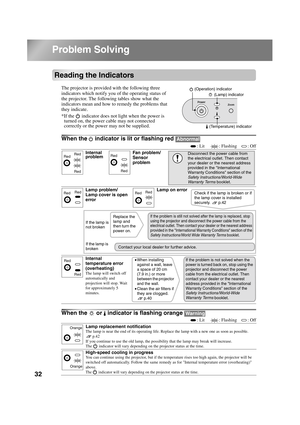

Reading the Indicators
The projector is provided with the following three
indicators which notify you of the operating status of
the projector. The following tables show what the
indicators mean and how to remedy the problems that
they indicate.
*If the   indicator does not light when the power is
turned on, the power cable may not connected
correctly or the power may not be supplied.
When the  indicator is lit or flashing red
When the   or   indicator is flashing...

33
Problem Solving
Troubleshooting
TW500_English

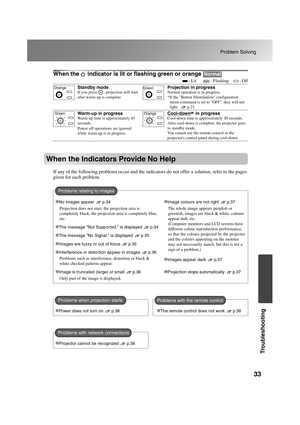

When the   indicator is lit or flashing green or orange
When the Indicators Provide No Help
If any of the following problems occur and the indicators do not offer a solution, refer to the pages
given for each problem.
                                             : Lit      : Flashing    : Off
Standby mode
If you press  , projection will start
after warm-up is complete.
Projection in progress
Normal operation is in progress.
*If the Button Illumination...

34
Problem Solving
TW500_English

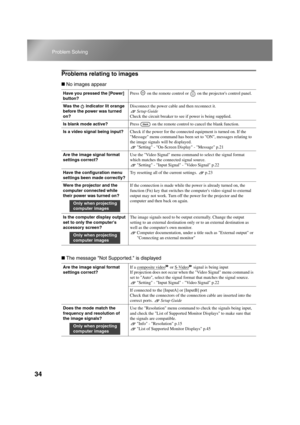

Problems relating to images
 No images appear
 The message Not Suppor ted. is displayed
Have you pressed the [Power]
button?Press   on the remote control or   on the projectors control panel.
Was the   indicator lit orange
before the power was turned
on?Disconnect the power cable and then reconnect it.
Setup Guide
Check the circuit breaker to see if power is being supplied.
Is blank mode active?Press   on the remote control to cancel the blank function.
Is a video...

35
Problem Solving
Troubleshooting
TW500_English

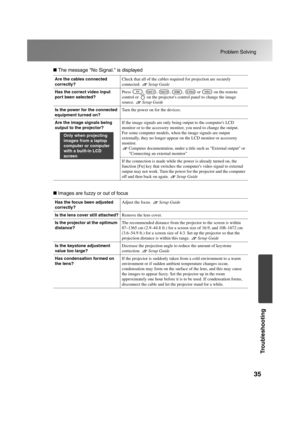

 The message No Signal. is displayed
 Images are fuzzy or out of focus
Are the cables connected
correctly?Check that all of the cables required for projection are securely
connected. Setup Guide
Has the correct video input
port been selected?Press  ,  ,  ,  ,   or   on the remote
control or   on the projectors control panel to change the image
source. Setup Guide
Is the power for the connected
equipment turned on?Turn the power on for the devices....

36
Problem Solving
TW500_English

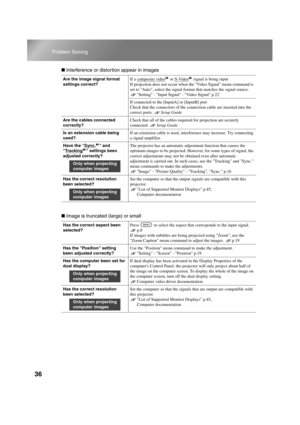

 Interference or distor tion appear in images
 Image is truncated (large) or small
Are the image signal format
settings correct?If a composite video or S-Video signal is being input
If projection does not occur when the Video Signal menu command is
set to Auto, select the signal format that matches the signal source.
Setting - Input Signal - Video Signal p.22
If connected to the [InputA] or [InputB] port
Check that the connectors of the connection cable are inserted...

37
Problem Solving
Troubleshooting
TW500_English

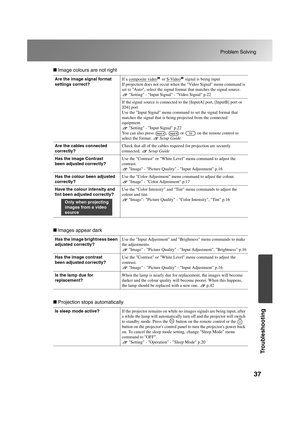

 Image colours are not right
 Images appear dark
 Projection stops automatically
Are the image signal format
settings correct?If a composite video or S-Video signal is being input
If projection does not occur when the Video Signal menu command is
set to Auto, select the signal format that matches the signal source.
Setting - Input Signal - Video Signal p.22
If the signal source is connected to the [InputA] port, [InputB] port or
[D4] port
Use the Input...

38
Problem Solving
TW500_English

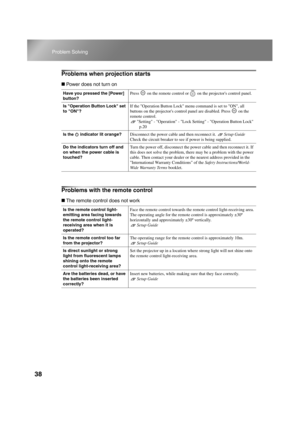

Problems when projection starts
 Power does not turn on
Problems with the remote control
 The remote control does not work
Have you pressed the [Power]
button?Press   on the remote control or   on the projectors control panel.
Is Operation Button Lock set
to ON?If the Operation Button Lock menu command is set to ON, all
buttons on the projectors control panel are disabled. Press   on the
remote control.
Setting - Operation - Lock Setting - Operation Button Lock
p.20...
