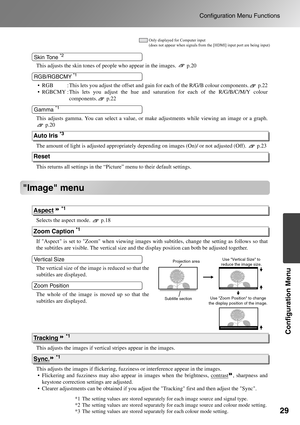

29
Configuration Menu Functions
Configuration Menu
Image menu
This adjusts the skin tones of people who appear in the images.  p.20
• RGB : This lets you adjust the offset and gain for each of the R/G/B colour components. p.22
•
RGBCMY : This lets you adjust the hue and saturation for each of the R/G/B/C/M/Y colour
components. p.22
This adjusts gamma. You can select a value, or make adjustments while viewing an image or a graph.
p.20
The amount of light is adjusted appropriately depending on images...

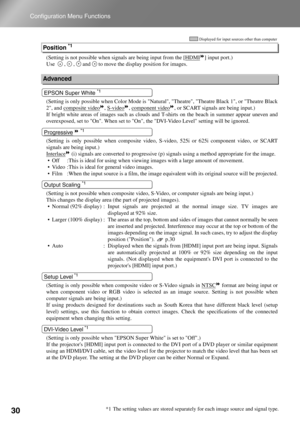

30
Configuration Menu Functions
(Setting is not possible when signals are being input from the [HDMI ] input port.)
Use  , , and to move the display position for images.
(Setting is only possible when Color Mode is Natural, Theatre, Theatre Black 1, or Theatre Black
2, and composite video
 , S-video , component video , or SCART signals are being input.)
If bright white areas of images such as clouds and T-shirts on the beach in summer appear uneven and
overexposed, set to On. When set to On, the...

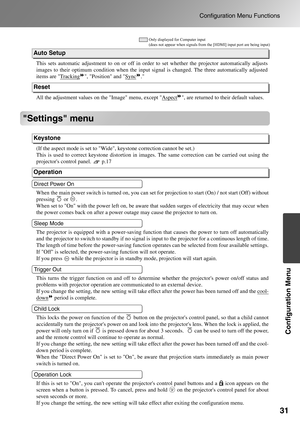

31
Configuration Menu Functions
Configuration Menu
Settings menu
This sets automatic adjustment to on or off in order to set whether the projector automatically adjusts
images to their optimum condition when the input signal is changed. The three automatically adjusted
items are Tracking
 , Position and Sync .
All the adjustment values on the Image menu, except Aspect
, are returned to their default values.
(If the aspect mode is set to Wide, keystone correction cannot be set.)
This is used to correct...

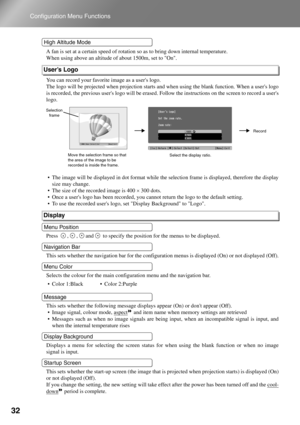

32
Configuration Menu Functions
A fan is set at a certain speed of rotation so as to bring down internal temperature.
When using above an altitude of about 1500m, set to On.
You can record your favorite image as a users logo.
The logo will be projected when projection starts and when using the blank function. When a users logo
is recorded, the previous users logo will be erased. Follow the instructions on the screen to record a users
logo.
• The image will be displayed in dot format while the selection...

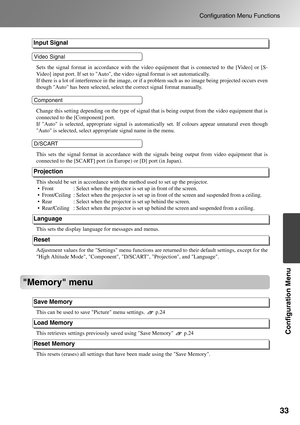

33
Configuration Menu Functions
Configuration Menu
Memory menu
Sets the signal format in accordance with the video equipment that is connected to the [Video] or [S-
Video] input port. If set to Auto, the video signal format is set automatically.
If there is a lot of interference in the image, or if a problem such as no image being projected occurs even
though Auto has been selected, select the correct signal format manually.
Change this setting depending on the type of signal that is being output from...

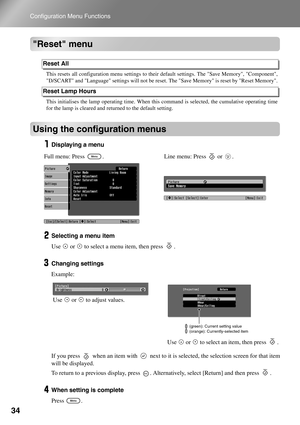

34
Configuration Menu Functions
Reset menu
Using the configuration menus
Displaying a menu
Selecting a menu item
Use   or   to select a menu item, then press  .
Changing settings
Example:
If you press   when an item with   next to it is selected, the selection screen for that item
will be displayed.
To return to a previous display, press  . Alternatively, select [Return] and then press  .
When setting is complete
Press .
This resets all configuration menu settings to their default settings. The Save...

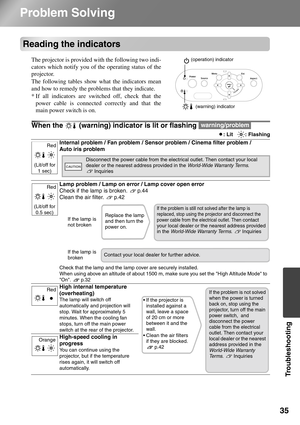

35
Troubleshooting
Problem Solving
Reading the indicators
The projector is provided with the following two indi-
cators which notify you of the operating status of the
projector.
The following tables show what the indicators mean
and how to remedy the problems that they indicate.
* If all indicators are switched off, check that the
power cable is connected correctly and that the
main power switch is on.
When the   (warning) indicator is lit or flashing
: Lit    : Flashing
Internal problem / Fan...

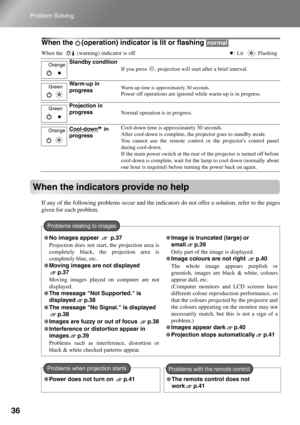

36
Problem Solving
When the  (operation) indicator is lit or flashing
When the  (warning) indicator is off: Lit    : Flashing
When the indicators provide no help
If any of the following problems occur and the indicators do not offer a solution, refer to the pages
given for each problem.
Standby condition
If you press  , projection will start after a brief interval.
Warm-up in
progress
Warm-up time is approximately 30 seconds.
Power off operations are ignored while warm-up is in progress.
Projection in...

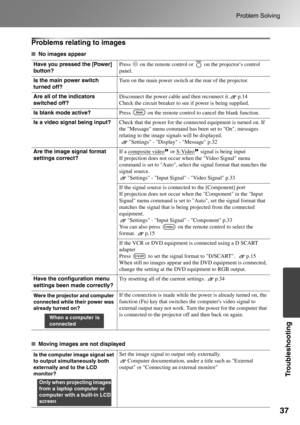

37
Problem Solving
Troubleshooting
Problems relating to images
■No images appear
■Moving images are not displayed Have you pressed the [Power]
button?Press   on the remote control or   on the projector’s control
panel.
Is the main power switch
turned off?Turn on the main power switch at the rear of the projector.
Are all of the indicators
switched off?Disconnect the power cable and then reconnect it. p.14
Check the circuit breaker to see if power is being supplied.
Is blank mode active?Press   on...

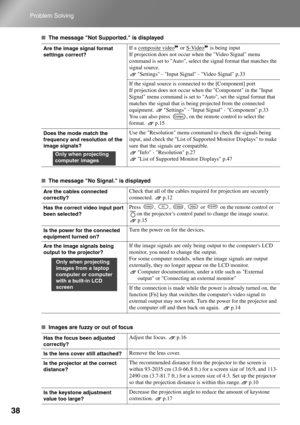

38
Problem Solving
■The message Not Supported. is displayed
■The message No Signal. is displayed
■Images are fuzzy or out of focus
Are the image signal format
settings correct?If a composite video or S-Video is being input
If projection does not occur when the Video Signal menu
command is set to Auto, select the signal format that matches the
signal source.
Settings - Input Signal - Video Signal p.33
If the signal source is connected to the [Component] port
If projection does not occur when the...
