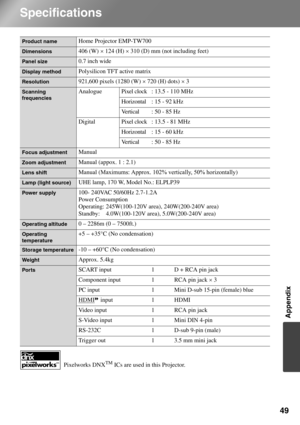

Page 51
49 Appendix Specifications Product nameHome Projector EMP-TW700 Dimensions406 (W) × 124 (H) × 310 (D) mm (not including feet) Panel size0.7 inch wide Display methodPolysilicon TFT active matrix Resolution921,600 pixels (1280 (W) × 720 (H) dots) × 3 Scanning frequenciesAnalogue Pixel clock : 13.5 - 110 MHz Horizontal : 15 - 92 kHz Vertical : 50 - 85 Hz Digital Pixel clock : 13.5 - 81 MHz Horizontal : 15 - 60 kHz Vertical : 50 - 85 Hz Focus adjustmentManual Zoom adjustmentManual (appox. 1 : 2.1) Lens...

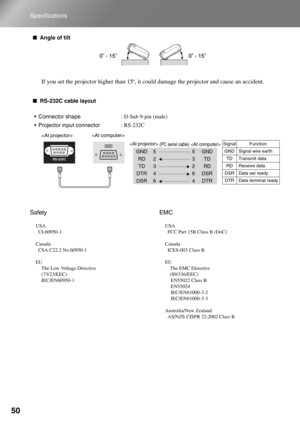

Page 52
50
Specifications
■Angle of tilt
If you set the projector higher than 15º, it could damage the projector and cause an accident.
■RS-232C cable layout
Safety
USA
UL60950-1
Canada
CSA C22.2 No.60950-1
EU
The Low Voltage Directive
(73/23/EEC)
IEC/EN60950-1
EMC
USA
FCC Part 15B Class B (DoC)
Canada
ICES-003 Class B
EU
The EMC Directive
(89/336/EEC)
EN55022 Class B
EN55024
IEC/EN61000-3-2
IEC/EN61000-3-3
Australia/New Zealand
AS/NZS CISPR 22:2002 Class B
Connector shape: D-Sub 9-pin...

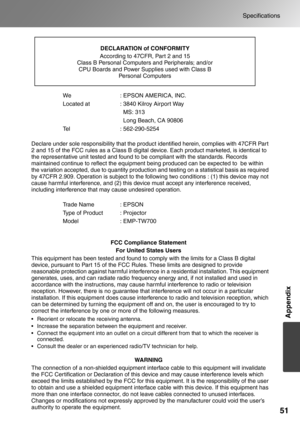

Page 53
51 Specifications Appendix We : EPSON AMERICA, INC. Located at : 3840 Kilroy Airport Way MS: 313 Long Beach, CA 90806 Tel : 562-290-5254 Declare under sole responsibility that the product identified herein, complies with 47CFR Part 2 and 15 of the FCC rules as a Class B digital device. Each product marketed, is identical to the representative unit tested and found to be compliant with the standards. Records maintained continue to reflect the equipment being produced can be expected to be within...

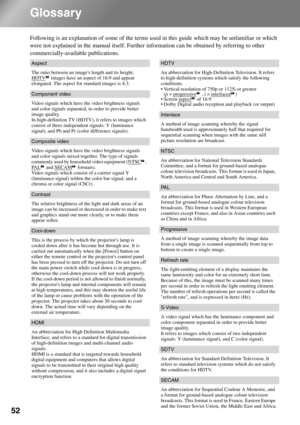

Page 54
52 Glossary Following is an explanation of some of the terms used in this guide which may be unfamiliar or which were not explained in the manual itself. Further information can be obtained by referring to other commercially-available publications. Aspect The ratio between an images length and its height. HDTV images have an aspect of 16:9 and appear elongated. The aspect for standard images is 4:3. Component video Video signals which have the video brightness signals and color signals separated,...

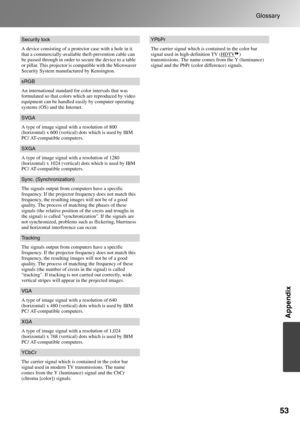

Page 55
53 Glossary Appendix Security lock A device consisting of a protector case with a hole in it that a commercially-available theft-prevention cable can be passed through in order to secure the device to a table or pillar. This projector is compatible with the Microsaver Security System manufactured by Kensington. sRGB An international standard for color intervals that was formulated so that colors which are reproduced by video equipment can be handled easily by computer operating systems (OS) and...

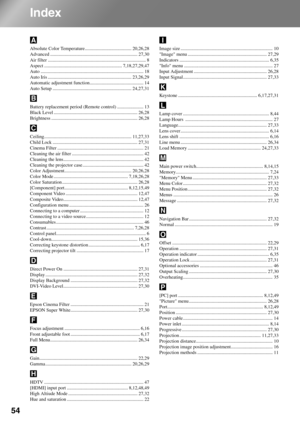

Page 56
54 Index Absolute Color Temperature....................................... 20,26,28 Advanced ......................................................................... 27,30 Air filter .................................................................................. 8 Aspect ................................................................. 7,18,27,29,47 Auto ...................................................................................... 18 Auto Iris...

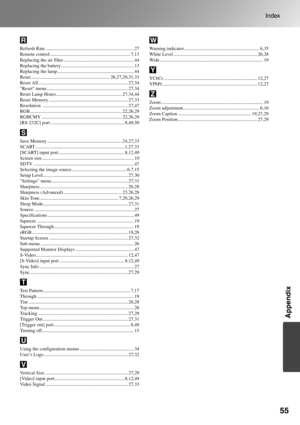

Page 57
55 Index Appendix Refresh Rate .......................................................................... 27 Remote control ................................................................... 7,13 Replacing the air filter ........................................................... 44 Replacing the battery............................................................. 13 Replacing the lamp................................................................ 44 Reset...
Page 58
Page 59

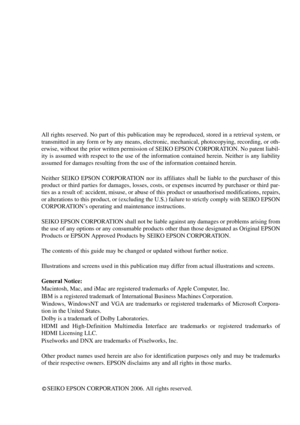

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or oth- erwise, without the prior written permission of SEIKO EPSON CORPORATION. No patent liabil- ity is assumed with respect to the use of the information contained herein. Neither is any liability assumed for damages resulting from the use of the information contained herein. Neither SEIKO EPSON CORPORATION nor...
Page 60

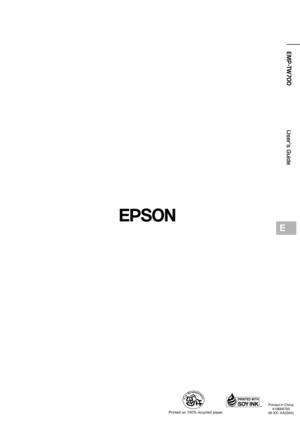

Printed on 100% recycled paper. E Printed in China 410668700 06.XX-.XA(G04)
