Fujitsu P55xts51 Users Manual

E-31
English
Deutsch
Espa
ñol
Fran
çais
Italiano
Portugu
ês
日 本 語
Póññêèé
中文

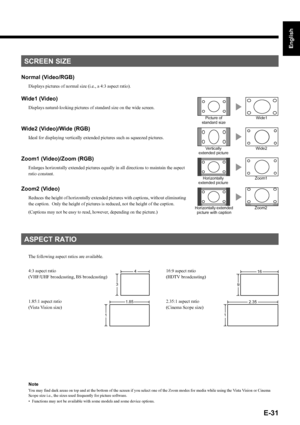

Normal (Video/RGB)
Displays pictures of normal size (i.e., a 4:3 aspect ratio).
Wide1 (Video)
Displays natural-looking pictures of standard size on the wide screen.
Wide2 (Video)/Wide (RGB)
Ideal for displaying vertically extended pictures such as squeezed pictures.
Zoom1 (Video)/Zoom (RGB)
Enlarges horizontally extended pictures equally in all directions to maintain the aspect
ratio constant.
Zoom2 (Video)
Reduces the height...

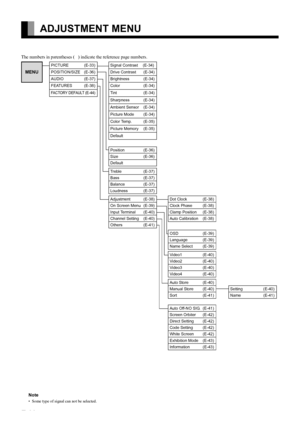

E-32
ADJUSTMENT MENU
The numbers in parentheses (   ) indicate the reference page numbers.
MENU
PICTURE (E-33) Signal Contrast (E-34)
POSITION/SIZE (E-36) Drive Contrast (E-34)
AUDIO (E-37) Brightness (E-34)
FEATURES (E-38) Color (E-34)
FACTORY DEFAULT(E-44)Tint (E-34)
Sharpness (E-34)
Ambient Sensor (E-34)
Picture Mode (E-34)
Color Temp. (E-35)
Picture Memory (E-35)
Default
Position (E-36)
Size (E-36)
Default
Treble (E-37)
Bass (E-37)
Balance (E-37)
Loudness (E-37)
Adjustment (E-38) Dot Clock (E-38)
On...

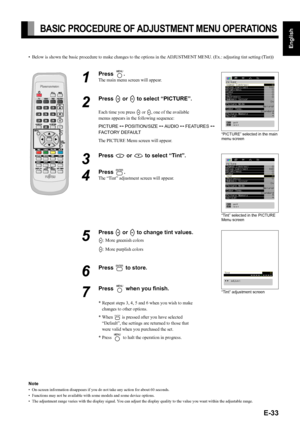

E-33
English
Deutsch
Espa
ñol
Fran
çais
Italiano
Portugu
ês
日 本 語
Póññêèé
中文
BASIC PROCEDURE OF ADJUSTMENT MENU OPERATIONS
• Below is shown the basic procedure to make changes to the options in the ADJUSTMENT MENU. (Ex.: adjusting tint setting (Tint))
1
Press ;.
The main menu screen will appear.
2
Press E or F to select “PICTURE”.
Each time you press E or F, one of the available
menus appears in the following sequence:
PICTURE < POSITION/SIZE < AUDIO < FEATURES <
FA C TO RY  D E FA U LT
The PICTURE...

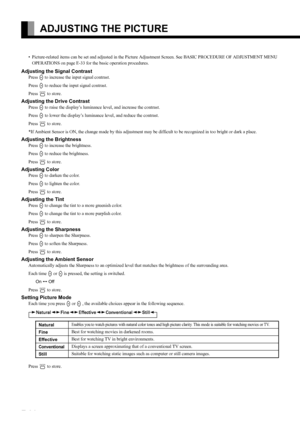

E-34
ADJUSTING THE PICTURE
• Picture-related items can be set and adjusted in the Picture Adjustment Screen. See BASIC PROCEDURE OF ADJUSTMENT MENU
OPERATIONS on page E-33 for the basic operation procedures.
Adjusting the Signal Contrast
Press F to increase the input signal contrast.
Press
E to reduce the input signal contrast.
Press
< to store.
Adjusting the Drive Contrast
Press F to raise the display’s luminance level, and increase the contrast.
Press
E to lower the display’s luminance level, and...

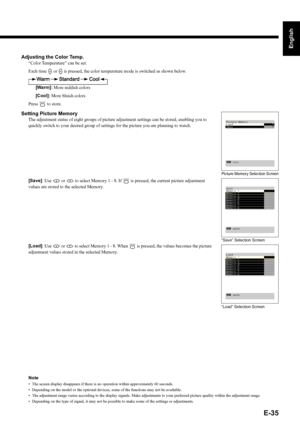

E-35
English
Deutsch
Espa
ñol
Fran
çais
Italiano
Portugu
ês
日 本 語
Póññêèé
中文
Adjusting the Color Temp.
“Color Temperature” can be set.
Each time
E or F is pressed, the color temperature mode is switched as shown below.
[Warm]: More reddish colors
[Cool]: More bluish colors
Press
< to store.
Setting Picture Memory
The adjustment status of eight groups of picture adjustment settings can be stored, enabling you to
quickly switch to your desired group of settings for the picture you are planning to...

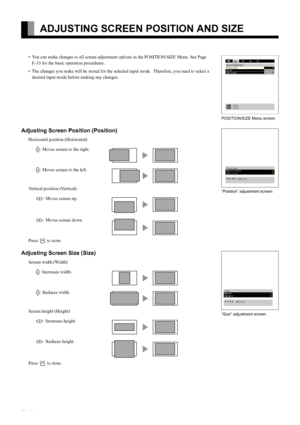

E-36
ADJUSTING SCREEN POSITION AND SIZE
• You can make changes to all screen adjustment options in the POSITION/SIZE Menu. See Page
E-33 for the basic operation procedures.
• The changes you make will be stored for the selected input mode.  Therefore, you need to select a
desired input mode before making any changes.
Adjusting Screen Position (Position)
Horizontal position (Horizontal)
F: Moves screen to the right.
E: Moves screen to the left.
Vertical position (Vertical)
C: Moves screen up.
D: Moves...

E-37
English
Deutsch
Espa
ñol
Fran
çais
Italiano
Portugu
ês
日 本 語
Póññêèé
中文

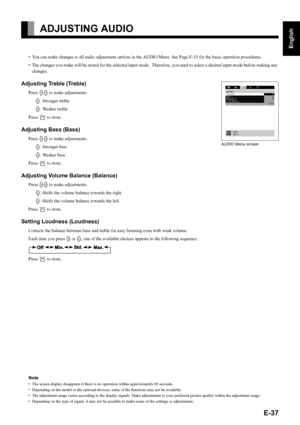

ADJUSTING AUDIO
• You can make changes to all audio adjustment options in the AUDIO Menu. See Page E-33 for the basic operation procedures.
• The changes you make will be stored for the selected input mode.  Therefore, you need to select a desired input mode before making any
changes.
Adjusting Treble (Treble)
Press EF to make adjustments.
F: Stronger treble
E: Weaker treble
Press
< to store.
Adjusting Bass (Bass)
Press EF to...

E-38

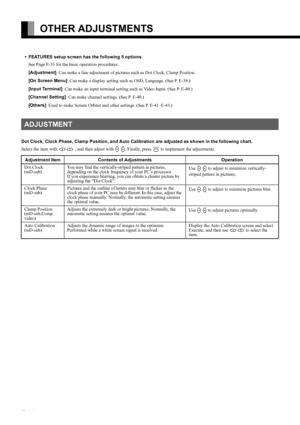

OTHER ADJUSTMENTS
• FEATURES setup screen has the following 5 options.
See Page E-33 for the basic operation procedures.
[Adjustment]: Can make a fine adjustment of pictures such as Dot Clock, Clamp Position.
[On Screen Menu]: Can make a display setting such as OSD, Language. (See P. E-39.)
[Input Terminal]: Can make an input terminal setting such as Video Input. (See P. E-40.)
[Channel Setting]: Can make channel settings. (See P. E-40.)
[Others]: Used to make Screen Orbiter and other settings. (See...

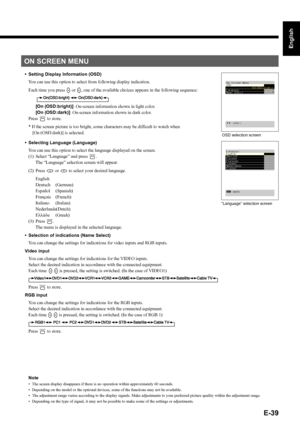

E-39
English
Deutsch
Espa
ñol
Fran
çais
Italiano
Portugu
ês
日 本 語
Póññêèé
中文
• Setting Display Information (OSD)
You can use this option to select from following display indication.
Each time you press
E or F, one of the available choices appears in the following sequence:
[On (OSD:bright)]: On-screen information shown in light color.
[On (OSD:dark)]: On-screen information shown in dark color.
Press
< to store.
* If the screen picture is too bright, some characters may be difficult to watch when
 [On...

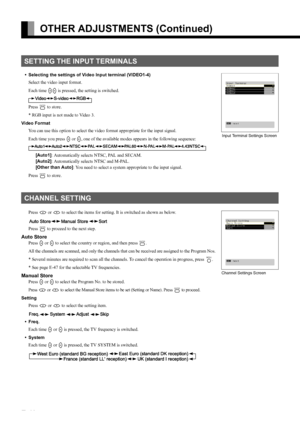

E-40
OTHER ADJUSTMENTS (Continued)
• Selecting the settings of Video Input terminal (VIDEO1-4)
Select the video input format.
Each time
EF is pressed, the setting is switched.
Press
< to store.
* RGB input is not made to Video 3.
Video Format
You can use this option to select the video format appropriate for the input signal.
Each time you press
E or F, one of the available modes appears in the following sequence:
[Auto1]: Automatically selects NTSC, PAL and SECAM.
[Auto2]: Automatically selects NTSC...
