26 Replacing Components in Your Gateway Profile 4 www.gateway.com 5Remove the hard drive cage from your computer. 6Disconnect the drive cable and power cable and set the drive cage aside. Note the location and orientation of each cable. You will reconnect these cables later. 09561.book Page 26 Wednesday, October 29, 2003 6:43 PM
Page 32

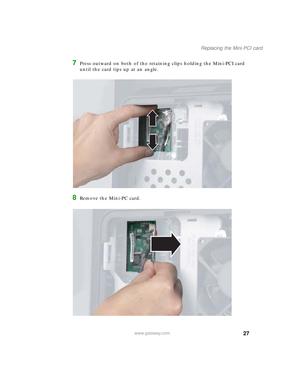

27 Replacing the Mini PCI card www.gateway.com 7Press outward on both of the retaining clips holding the Mini-PCI card until the card tips up at an angle. 8Remove the Mini-PC card. 09561.book Page 27 Wednesday, October 29, 2003 6:43 PM
Page 33
28 Replacing Components in Your Gateway Profile 4 www.gateway.com 9Remove the cable from the Mini-PCI card. 10Connect the cable to the new Mini-PCI card. 09561.book Page 28 Wednesday, October 29, 2003 6:43 PM
Page 34

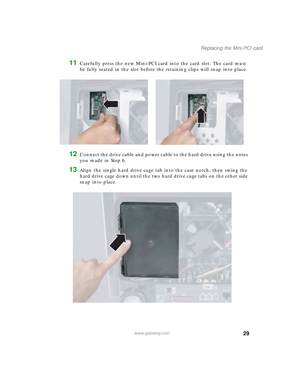

29 Replacing the Mini PCI card www.gateway.com 11Carefully press the new Mini-PCI card into the card slot. The card must be fully seated in the slot before the retaining clips will snap into place. 12Connect the drive cable and power cable to the hard drive using the notes you made in Step 6. 13Align the single hard drive cage tab into the case notch, then swing the hard drive cage down until the two hard drive cage tabs on the other side snap into place. 09561.book Page 29 Wednesday, October 29,...
Page 35
30 Replacing Components in Your Gateway Profile 4 www.gateway.com 14Make sure that all of the internal cables are arranged inside the case so they will not be pinched when you close the case. 15Align the access panel tabs into the case notches. 16Swing the access panel down into place and secure it with the two screws removed in Step 2. Access panel tabs 09561.book Page 30 Wednesday, October 29, 2003 6:43 PM
Page 36

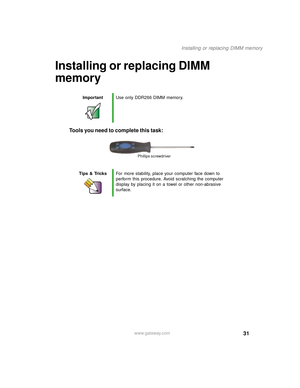

31 Installing or replacing DIMM memory www.gateway.com Installing or replacing DIMM memory Tools you need to complete this task: ImportantUse only DDR266 DIMM memory. Tips & TricksFor more stability, place your computer face down to perform this procedure. Avoid scratching the computer display by placing it on a towel or other non-abrasive surface. Phillips screwdriver 09561.book Page 31 Wednesday, October 29, 2003 6:43 PM
Page 37
32 Replacing Components in Your Gateway Profile 4 www.gateway.com To install or replace DIMM memory: 1Turn off the computer and prepare it by following the instructions in “Preparing your computer” on page 4. 2Remove the two screws that secure the access panel to the back of the computer case. Screws 09561.book Page 32 Wednesday, October 29, 2003 6:43 PM
Page 38
33 Installing or replacing DIMM memory www.gateway.com 3With your hands positioned on each side of the case, swing the access panel up and away from the case and set the access panel aside. 4Find the memory module banks, sometimes called add-in slots, on your system board. Memory modules 09561.book Page 33 Wednesday, October 29, 2003 6:43 PM
Page 39
34 Replacing Components in Your Gateway Profile 4 www.gateway.com 5If you are removing a memory module from the memory module bank, gently pull the plastic tabs away from the sides of the memory module and remove it. - OR - If you are adding a memory module to an empty memory module bank, gently pull the plastic tabs away from the sides of the memory module bank. 6Align the notch on the new memory module with the notch on the memory module bank and press firmly into the bank. The tabs on the sides...
Page 40
35 Installing or replacing DIMM memory www.gateway.com 8Align the access panel tabs into the case notches. 9Swing the access panel down into place and secure it with the two screws removed in Step 2. 10Reconnect the external cables and power cord. 11Turn on your computer. Windows starts and the Windows desktop appears. 12In Windows XP, click Start, Control Panel, then click Performance and Maintenance (if in Category View). Click/Double-click System. The amount of memory in your computer is shown at...
