Probe Overview
LOGIQ 5 Basic User Manual 17-19
Direction 2300002-100 Rev. 2

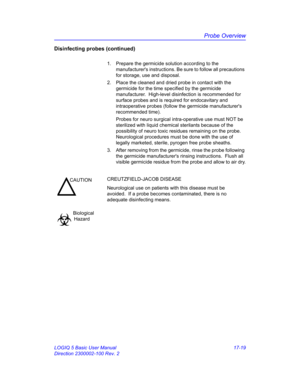

Disinfecting probes (continued)
1.  Prepare the germicide solution according to the
manufacturers instructions. Be sure to follow all precautions
for storage, use and disposal.
2.  Place the cleaned and dried probe in contact with the
germicide for the time specified by the germicide
manufacturer.  High-level disinfection is recommended for
surface probes and is required for endocavitary and
intraoperative probes (follow...

Probes and Biopsy
17-20 LOGIQ 5 Basic User Manual
Direction 2300002-100 Rev. 2

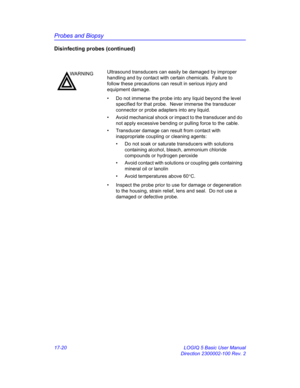

Disinfecting probes (continued)
WARNINGUltrasound transducers can easily be damaged by improper
handling and by contact with certain chemicals.  Failure to
follow these precautions can result in serious injury and
equipment damage.
•  Do not immerse the probe into any liquid beyond the level
specified for that probe.  Never immerse the transducer
connector or probe adapters into any liquid.
•  Avoid mechanical shock or...

Probe Overview
LOGIQ 5 Basic User Manual 17-21
Direction 2300002-100 Rev. 2

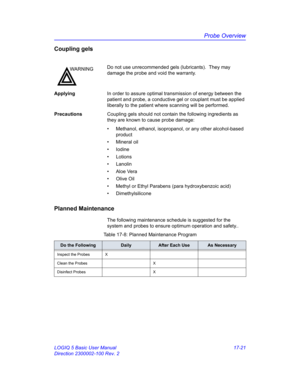

Coupling gels
ApplyingIn order to assure optimal transmission of energy between the
patient and probe, a conductive gel or couplant must be applied
liberally to the patient where scanning will be performed.
PrecautionsCoupling gels should not contain the following ingredients as
they are known to cause probe damage:
•  Methanol, ethanol, isopropanol, or any other alcohol-based
product
• Mineral oil
• Iodine
• Lotions
•...

Probes and Biopsy
17-22 LOGIQ 5 Basic User Manual
Direction 2300002-100 Rev. 2

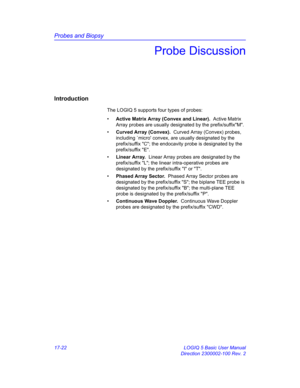

Probe Discussion
Introduction
The LOGIQ 5 supports four types of probes:
• Active Matrix Array (Convex and Linear).  Active Matrix
Array probes are usually designated by the prefix/suffixM.
• Curved Array (Convex).  Curved Array (Convex) probes,
including `micro convex, are usually designated by the
prefix/suffix C; the endocavity probe is designated by the
prefix/suffix E.
• Linear Array.  Linear Array probes are...

Probe Discussion
LOGIQ 5 Basic User Manual 17-23
Direction 2300002-100 Rev. 2

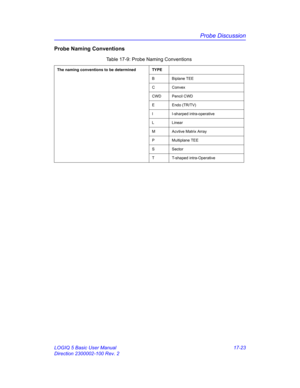

Probe Naming Conventions
Table 17-9: Probe Naming Conventions
The naming conventions to be determined TYPE
B Biplane TEE
C Convex
CWD Pencil CWD
E Endo (TR/TV)
I I-sharped intra-operative
L Linear
M Acvtive Matrix Array
P Multiplane TEE
SSector
T T-shaped intra-Operative

Probes and Biopsy
17-24 LOGIQ 5 Basic User Manual
Direction 2300002-100 Rev. 2

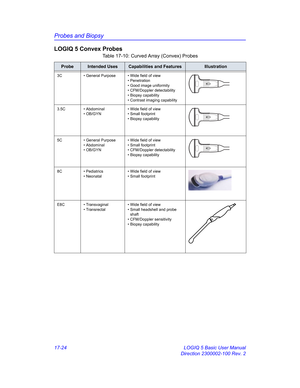

LOGIQ 5 Convex Probes
Table 17-10: Curved Array (Convex) Probes
ProbeIntended UsesCapabilities and FeaturesIllustration
3C • General Purpose • Wide field of view
• Penetration
• Good image uniformity
• CFM/Doppler detectability
• Biopsy capability
• Contrast imaging capability
3.5C • Abdominal
• OB/GYN• Wide field of view
• Small footprint
• Biopsy capability
5C • General Purpose
• Abdominal
• OB/GYN• Wide field of view
•...

Probe Discussion

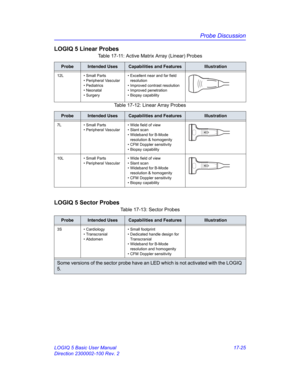

LOGIQ 5 Basic User Manual 17-25
Direction 2300002-100 Rev. 2
LOGIQ 5 Linear Probes
LOGIQ 5 Sector Probes
Table 17-11: Active Matrix Array (Linear) Probes
ProbeIntended UsesCapabilities and FeaturesIllustration
12L • Small Parts
• Peripheral Vascular
• Pediatrics
• Neonatal
• Surgery• Excellent near and far field
resolution
• Improved contrast resolution
• Improved penetration
• Biopsy capability
Table 17-12: Linear Array Probes
ProbeIntended UsesCapabilities and FeaturesIllustration
7L...

Probes and Biopsy

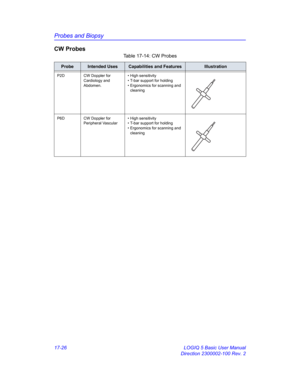

17-26 LOGIQ 5 Basic User Manual
Direction 2300002-100 Rev. 2
CW Probes
Table 17-14: CW Probes
ProbeIntended UsesCapabilities and FeaturesIllustration
P2D CW Doppler for
Cardiology and
Abdomen.• High sensitivity
• T-bar support for holding
• Ergonomics for scanning and
cleaning
P6D CW Doppler for
Peripheral Vascular• High sensitivity
• T-bar support for holding
• Ergonomics for scanning and
cleaning

Biopsy Special Concerns
LOGIQ 5 Basic User Manual 17-27
Direction 2300002-100 Rev. 2

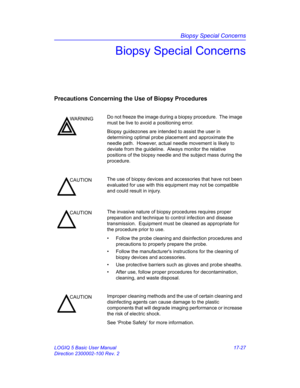

Biopsy Special Concerns
Precautions Concerning the Use of Biopsy Procedures
WARNINGDo not freeze the image during a biopsy procedure.  The image
must be live to avoid a positioning error.
Biopsy guidezones are intended to assist the user in
determining optimal probe placement and approximate the
needle path.  However, actual needle movement is likely to
deviate from the guideline.  Always monitor the relative...

Probes and Biopsy
17-28 LOGIQ 5 Basic User Manual
Direction 2300002-100 Rev. 2

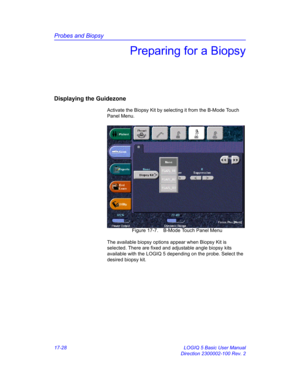

Preparing for a Biopsy
Displaying the Guidezone
Activate the Biopsy Kit by selecting it from the B-Mode Touch
Panel Menu.
 Figure 17-7. B-Mode Touch Panel Menu
The available biopsy options appear when Biopsy Kit is
selected. There are fixed and adjustable angle biopsy kits
available with the LOGIQ 5 depending on the probe. Select the
desired biopsy kit.
