Safety
Vivid7/Vivid7 PRO Users Manual467
FC092326-03

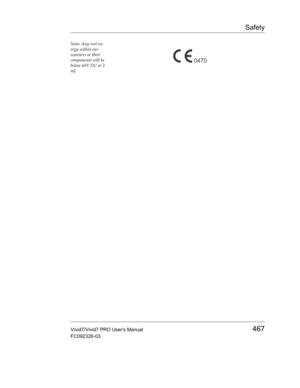

Note: Any rest en-
ergy within our
scanners or their
components will be
below 60V DC or 2
mJ.
0470

Safety
468Vivid7/Vivid7 PRO Users Manual
FC092326-03

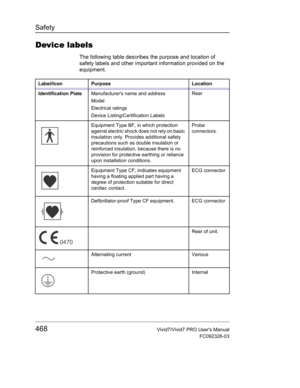

Device labels
The following table describes the purpose and location of
safety labels and other important information provided on the
equipment.
Label/Icon Purpose Location
Identification PlateManufacturers name and address
Model
Electrical ratings
Device Listing/Certification LabelsRear
Equipment Type BF, in which protection
against electric shock does not rely on basic
insulation only. Provides additional safety
precautions such as double...

Safety
Vivid7/Vivid7 PRO Users Manual469
FC092326-03
Earth (ground) Internal
Equipotentiality: indicates terminal to be
used for connecting equipotential
conductors when interconnecting
(grounding) with other equipment.Rear of unit
Attention - Consult accompanying
documents: alerts the user to refer to the
user documentation when complete
information cannot be provided on the label.Various
CAUTION - Dangerous voltage: used to
indicate electric shock hazards.Various
ATTENTION - Observe precaution...

Safety
470Vivid7/Vivid7 PRO Users Manual
FC092326-03
This precaution is intended to prevent injury
that may result if one person attempts to
move the unit over considerable distances
or on an incline due to the weight of the unit.Rear of unit
(Identification
plate)

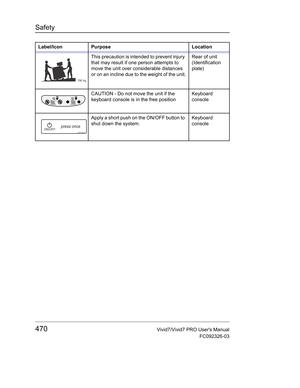

CAUTION - Do not move the unit if the
keyboard console is in the free positionKeyboard
console
Apply a short push on the ON/OFF button to
shut down the system.Keyboard
console Label/Icon Purpose Location
190 kg

Safety
Vivid7/Vivid7 PRO Users Manual471
FC092326-03

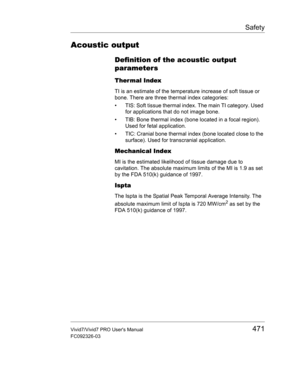

Acoustic output
Definition of the acoustic output
parameters
Ther mal Index
TI is an estimate of the temperature increase of soft tissue or
bone. There are three thermal index categories:
•  TIS: Soft tissue thermal index. The main TI category. Used
for applications that do not image bone.
•  TIB: Bone thermal index (bone located in a focal region).
Used for fetal application.
•  TIC: Cranial bone thermal index (bone located close to the
surface)....

Safety
472Vivid7/Vivid7 PRO Users Manual
FC092326-03

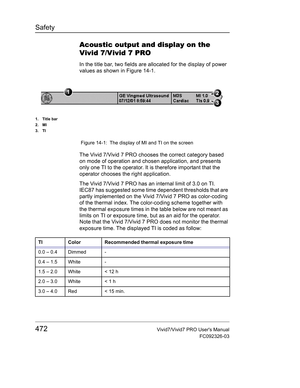

Acoustic output and display on the
Vivid7/Vivid7PRO
In the title bar, two fields are allocated for the display of power
values as shown in Figure 14-1.
 Figure 14-1: The display of MI and TI on the screen
The Vivid 7/Vivid 7 PRO chooses the correct category based
on mode of operation and chosen application, and presents
only one TI to the operator. It is therefore important that the
operator chooses the right application.
The Vivid 7/Vivid 7 PRO...

Safety
Vivid7/Vivid7 PRO Users Manual473
FC092326-03

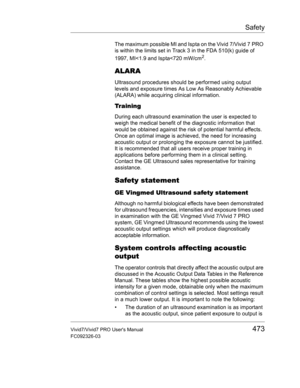

The maximum possible MI and Ispta on the Vivid 7/Vivid 7 PRO
is within the limits set in Track 3 in the FDA 510(k) guide of
1997, MI

Safety
474Vivid7/Vivid7 PRO Users Manual
FC092326-03
directly related to the exposure time.
•  Better image quality yields faster clinical results, making it
possible to complete the relevant ultrasound examination
more rapidly. Therefore, any control that improves the
quality of the examination can help to reduce patient
exposure, even though it may not directly affect acoustic
output.

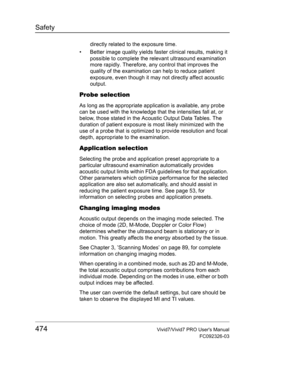

Probe selection
As long as the appropriate application is available, any probe
can be used with the knowledge...

Safety
Vivid7/Vivid7 PRO Users Manual475
FC092326-03

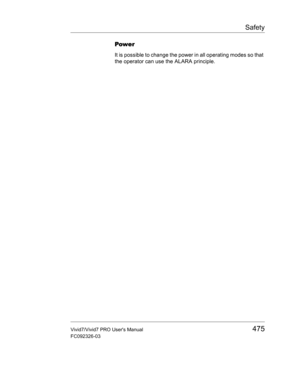

Power
It is possible to change the power in all operating modes so that
the operator can use the ALARA principle.

Safety
476Vivid7/Vivid7 PRO Users Manual
FC092326-03

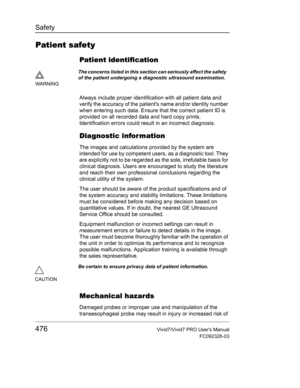

Patient safety
Patient identification
Always include proper identification with all patient data and
verify the accuracy of the patients name and/or identity number
when entering such data. Ensure that the correct patient ID is
provided on all recorded data and hard copy prints.
Identification errors could result in an incorrect diagnosis.
Diagnostic infor mation
The images and calculations provided by the system are
intended for use by competent...
