11 GASOLINES CONTAINING ALCOHOL If you decide to use a gasoline containing alcohol (gasohol), be sure it’s octane rating is at least as high as that recommended by Honda. There are two types of ‘‘gasohol’’: one containing ethanol, and the other containing methanol. Do not use gasohol that contains more than 10% ethanol. Do not use gasoline containing methanol (methyl or wood alcohol) that does not also contain cosolvents and corrosion inhibitors for methanol. Never use gasoline containing more than 5%...
Page 12
12 STARTING THE ENGINE FUEL VALVE ……ON CLOSE…… CHOKE LEVER CLOSE O ON N Turn the fuel valve to the ON position. Move the choke lever to the CLOSED position. Do not use the choke if the engine is warm or the air temperature is high. 2. 1.
Page 13

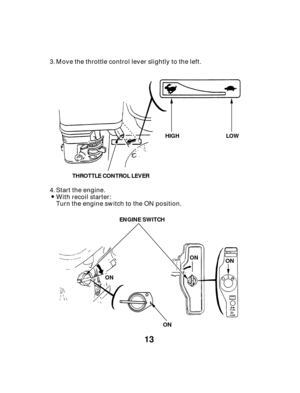

13 ENGINE SWITCH THROTTLE CONTROL LEVER HIGH ON ON ON ON LOW Move the throttle control lever slightly to the left. With recoil starter: Start the engine. Turn the engine switch to the ON position. 3. 4.
Page 14
14 Do not allow the starter grip to snap back against the engine. Return it gently to prevent damage to the starter. ENGINE SWITCHSTART With electric starter (where equipped): Turn the engine switch to the START position and hold it there until the engine starts. Pull the starter grip lightly until resistance is felt, then pull briskly. Do not use the electric starter for more than 5 seconds at a time. If the engine fails to start, release the key and wait 10 seconds before operating the starter again....
Page 15

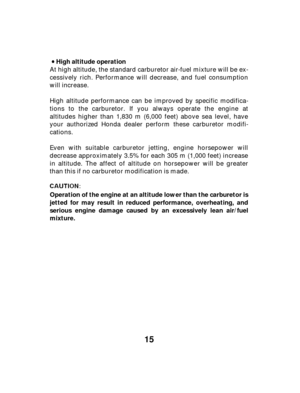

15 High altitude operation Operation of the engine at an altitude lower than the carburetor is jetted for may result in reduced performance, overheating, and serious engine damage caused by an excessively lean air/fuel mixture. At high altitude, the standard carburetor air-fuel mixture will be ex- cessively rich. Performance will decrease, and fuel consumption will increase. Even with suitable carburetor jetting, engine horsepower will decrease approximately 3.5% for each 305 m (1,000 feet) increase in...
Page 16
16 OPERATION O OP PE EN N HIGH LOW CHOKE LEVER ……OPEN THROTTLE CONTROL LEVER As the engine warms up, gradually move the choke lever to the OPEN position. Position the throttle control lever for the desired engine speed. 1. 2.
Page 17
17 Oil alert system If the engine stops and will not restart, check the engine oil level (page ) before troubleshooting in other areas. Circuit breaker (for electric starter)(Where equipped) ON CIRCUIT BREAKER OFF The Oil Alert System is designed to prevent engine damage caused by an insufficient amount of oil in the crankcase. Before the oil level in the crankcase can fall below a safe limit, the Oil Alert System will automatically stop the engine (the engine switch will remain in the ON position). The...
Page 18
18 STOPPING THE ENGINE OFF LOW THROTTLE CONTROL LEVER FUEL VALVE O OF FF FO OF FF F ENGINE SWITCH OFF OFF…… OFF To stop the engine in an emergency, turn the engine switch to the OFF position. Under normal conditions, use the following procedure: Move the throttle control lever fully to the right. Turn the fuel valve to the OFF position. Turn the engine switch to the OFF position. 1. 2. 3.
Page 19
µ µ 19 MAINTENANCE Shut off the engine before performing any maintenance. The engine should be serviced by an authorized Honda dealer unless the owner has proper tools and service data and feels he is mechanically qualified. Use only genuine Honda parts or their equivalent. The use of replacement parts which are not of equivalent quality may damage the engine. Maintenance Schedule To prevent accidental start-up, turn OFF the engine switch key and disconnect the spark plug cap. These items should be...
