ТЕЛЕВИЗОР
ЦВЕТНОГО ИЗОБРАЖЕНИЯ
С ЖИДКОКРИСТАЛЛИЧЕСКИМ  ЭКРАНОМ И ВСТРОЕННЫМDVD-ПРОИГРЫВАТЕЛЕМ
LCD TV WITH BUILT-IN DVD
PLAYER
Руководство по эксплуатации
Instruction manual
H-LCDVD2200


Display
Goto
Preview
Audio
Subtitle
Angle
Mute
Zoom
Repeat A-B
Step
Volume
MP3/JPEG playback
DVD setting System setup
Language setup
Audio setup
Digital setup
General information
Troubleshooting Causes of interference
Accessories
Specifications
Table of contents
Before you start
Utilization of the product
Important safeguards
Connection
Connection
Outdoor antenna connection
Other connections
Operation
Control elements  Front and lateral panel
 Back panel
Remote controller Changing the battery
General...

23
Table of contentsBefore you start
If you want to dispose this product, do not mix it with general household waste. There is
a separate collection system for used electronic products in accordance with legislation
that requires proper treatment, recovery and recycling. Please contact your local authorities for the correct method of disposal. By doing so,
you will ensure that your disposed product undergoes the necessar y treatment, recovery
and recycling and thus prevent potential negative effects...

4
Before you start
•  Please place the product on a flat surface
in a well-ventilated location. Keep it away from
the burning-light, direct sunlight, vibration,
high-temperature and humidity. Store the
product with a temperature from –20
0C ~500C;
otherwise you may destroy the product.  •  Do not place any vase, potted plant, cup,
medicine and any container with water on this
product. If the liquid is spilt, it may cause the
fire, electric shock or breakdown. •  Do not install it at the place on...

5
Сonnection

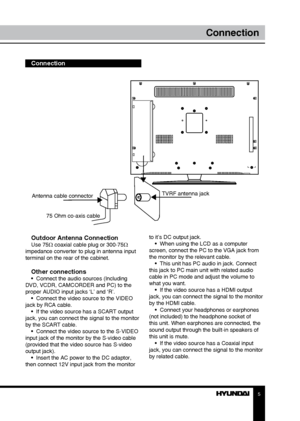

Outdoor Antenna ConnectionUse 75Ω coaxial cable plug or 300-75Ω
impedance converter to plug in antenna input
terminal on the rear of the cabinet.
Other connections•  Connect the audio sources (Including
DVD, VCDR, CAMCORDER and PC) to the
proper AUDIO input jacks ‘L’ and ‘R’. •  Connect the video source to the VIDEO
jack by RCA cable. •  If the video source has a SCART output
jack, you can connect the signal to the monitor
by the SCART cable. •  Connect the video source to the S-VIDEO...

6
Operation
Control elements
Front and lateral panel

              1. PLAY/PAUSE button
              2. STOP button
              3. OPEN/CLOSE button
              4. TV/AV button
              5. CH+/UP cursor button
              6. CH-/DOWN cursor button
              7. VOL+/RIGHT cursor button
              8. VOL-/LEFT cursor button
              9. MENU button
            10. POWER button
Back panel
1. Power cord socket
2. HDMI input
3. VGA input
4. SCART connector
5. DVD...

7
Operation
Remote controller (RC)
1.  POWER button
2.  Number buttons
3.  ASPECT button
4.  VOL+/VOL- buttons
5.  DISPLAY button
6.  ENTER button/cursor buttons (
///)
7.  LCD MENU button
8.  P.MODE button
9.  INPUT button
10. HOLD/STOP button
11. TEXT/PLAY/PAUSE button
12.
/INDEX button
13. /SIZE button 14.
 button
15.  button
16. D.MENU button
17. TITLE button
18. PROGRAM/red button
19. INTRO/green button
20. AUTO/OPEN/CLOSE buttons
21. MUTE button
22.
 button
23. NICAM button
24. CH+/CH- button...

89
OperationOperation

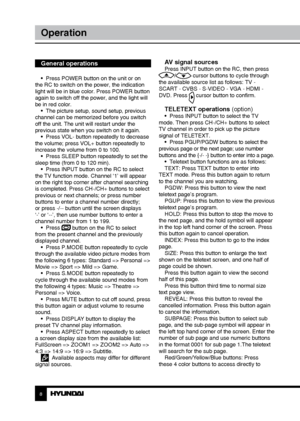

General operations
•  Press POWER button on the unit or on
the RC to switch on the power, the indication
light will be in blue color. Press POWER button
again to switch off the power, and the light will
be in red color. •  The picture setup, sound setup, previous
channel can be memorized before you switch
off the unit. The unit will restart under the
previous state when you switch on it again. •  Press VOL- button repeatedly to decrease
the volume; press VOL+ button...

89
OperationOperation
corresponding color page displayed at the
lower parts of teletext screen.

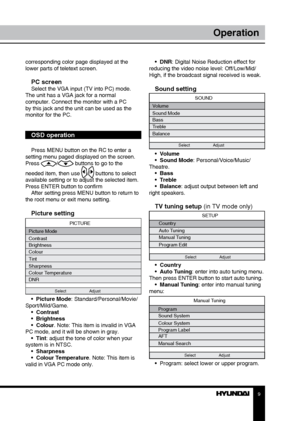

PC screenSelect the VGA input (TV into PC) mode.
The unit has a VGA jack for a normal
computer. Connect the monitor with a PC
by this jack and the unit can be used as the
monitor for the PC.
OSD operation
Press MENU button on the RC to enter a
setting menu paged displayed on the screen.
Press
/ buttons to go to the
needed item, then use
/ buttons to select
available setting or to adjust the selected...

10
Operation
•  Sound System: select corresponding
sound system. •  Colour System: select corresponding
colour system. •  Program Label: this item allows you to
name a channel, or rename the program
that you named also. In this item, you could
move white cursor by
/ buttons, and input
available character by
/ buttons.   If you wish to delete the character, you
have to press / buttons until the
current cursor disappears.  •  AFT: this item allows you to fine tune
a channel selected due to weak...
