Hyundai H Lcdvd2200 Instruction Manual

11

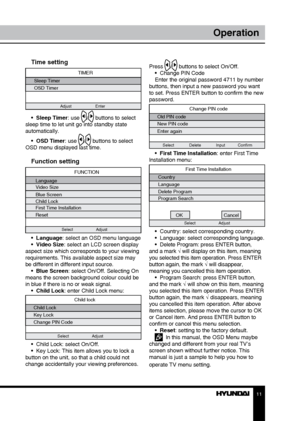

Operation
Press / buttons to select On/Off.
•  Change PIN Code
Enter the original password 4711 by number
buttons, then input a new password you want
to set. Press ENTER button to confirm the new
password.
Change PIN code
Old PIN code
New PIN code
Enter again
Select             Delete             Input           Confirm
•  First Time Installation: enter First Time
Installation menu:
First Time Installation
Country
Language
Delete Program
Program Search
OK Cancel
Select Adjust
•  Country: select...

1213

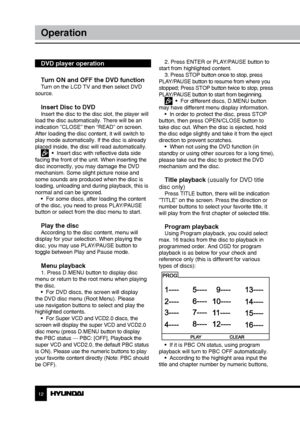

OperationOperation
DVD player operation
Turn ON and OFF the DVD function
Turn on the LCD TV and then select DVD
source.
Insert Disc to DVDInsert the disc to the disc slot, the player will
load the disc automatically. There will be an
indication ”CLOSE” then “READ” on screen.
After loading the disc content, it will switch to
play mode automatically. If the disc is already
placed inside, the disc will read automatically.
  •  Insert disc with reflective data side
facing the front of the unit....

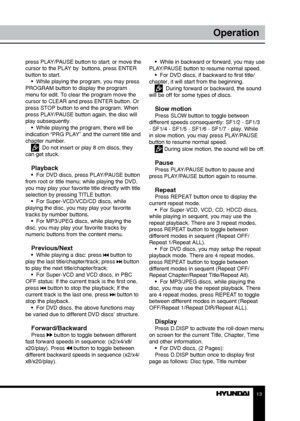

1213
OperationOperation
press PLAY/PAUSE button to start; or move the
cursor to the PLAY by  buttons, press ENTER
button to start.
•  While playing the program, you may press
PROGRAM button to display the program
menu for edit. To clear the program move the
cursor to CLEAR and press ENTER button. Or
press STOP button to end the program. When
press PLAY/PAUSE button again, the disc will
play subsequently. •  While playing the program, there will be
indication “PRG PLAY” and the current title and...

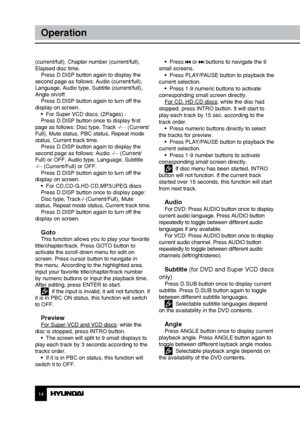

14
Operation
(current/full), Chapter number (current/full),
Elapsed disc time.Press D.DISP button again to display the
second page as follows: Audio (current/full),
Language, Audio type, Subtitle (current/full),
Angle on/off. Press D.DISP button again to turn off the
display on screen. •  For Super VCD discs, (2Pages) :
Press D.DISP button once to display first
page as follows: Disc type, Track -/- - (Current/
Full), Mute status, PBC status, Repeat mode
status, Current track time. Press D.DISP...

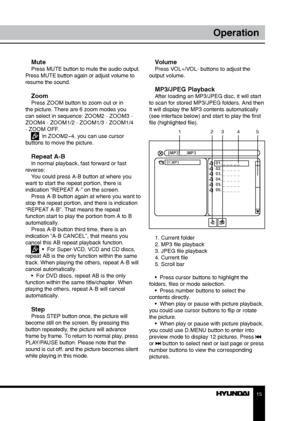

15
Operation
MutePress MUTE button to mute the audio output.
Press MUTE button again or adjust volume to
resume the sound.
ZoomPress ZOOM button to zoom out or in
the picture. There are 6 zoom modes you
can select in sequence: ZOOM2 - ZOOM3 -
ZOOM4 - ZOOM1/2 - ZOOM1/3 - ZOOM1/4
- ZOOM OFF.
  In ZOOM2~4, you can use cursor
buttons to move the picture.
Repeat A-BIn normal playback, fast forward or fast
reverse: You could press A-B button at where you
want to start the repeat portion, there is...

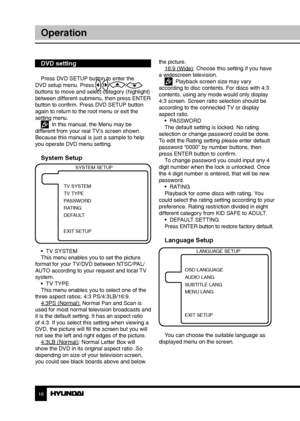

16
Operation
DVD setting
Press DVD SETUP button to enter the
DVD setup menu. Press ///
buttons to move and select category (highlight)
between different submenu, then press ENTER
button to confirm. Press DVD SETUP button
again to return to the root menu or exit the
setting menu.
  In this manual, the Menu may be
different from your real TV’s screen shown.
Because this manual is just a sample to help
you operate DVD menu setting.
System Setup
SYSTEM SETUP
TV SYSTEM
TV TYPE
PASSWORD
RATING...

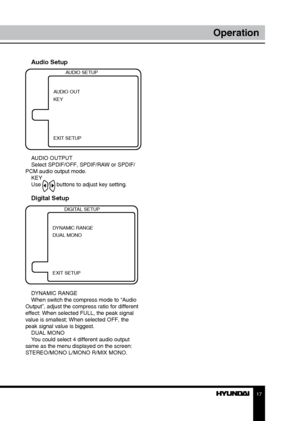

17
Operation
Audio Setup
AUDIO SETUP
AUDIO OUT
KEY
EXIT SETUP
AUDIO OUTPUT
Select SPDIF/OFF, SPDIF/RAW or SPDIF/
PCM audio output mode. KEY
Use
/ buttons to adjust key setting.
Digital Setup
DIGITAL SETUP
DYNAMIC RANGE
DUAL MONO
EXIT SETUP
DYNAMIC RANGE
When switch the compress mode to “Audio
Output”, adjust the compress ratio for different
effect: When selected FULL, the peak signal
value is smallest; When selected OFF, the
peak signal value is biggest. DUAL MONO
You could select 4 different audio...

1819
General informationGeneral information
Troubleshooting
Below is a table describing simple measures that can help you eliminate most problems likely
to emerge when this unit is in use. If below measures do not help, turn to a service center or to the
nearest dealer.
Symptom Cause Solution
No picture, no
sound, and no
indicator light The power cord is not plugged in.
Contrast, brightness, sharpness, color
and volume are all in the minimum
value or TV is in mute mode. Plug the power cord in....

1819
General informationGeneral information

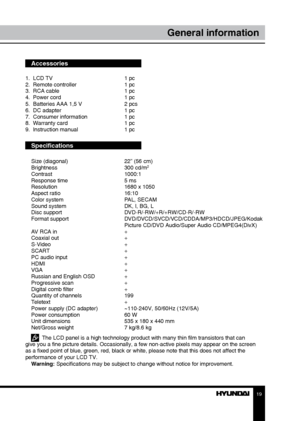

Accessories
1.  LCD TV     1 pc
2.  Remote controller    1 pc
3.  RCA cable      1 pc
4.  Power cord      1 pc
5.  Batteries ААА 1,5 V    2 pcs
6.  DC adapter      1 pc
7.  Consumer information    1 pc
8.  Warranty card      1 pc
9.  Instruction manual    1 pc
Specifications
Size (diagonal)     22” (56 cm)
Brightness      300 cd/m2
Contrast     1000:1
Response time      5 ms
Resolution      1680 x 1050
Aspect ratio      16:10
Color system      PAL, SECAM
Sound...

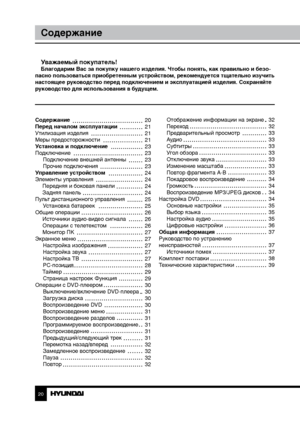

Отображение информации на экране
Переход
Предварительный просмотр
Аудио
Субтитры
Угол обзора
Отключение звука
Изменение масштаба
Повтор фрагмента А-В
Покадровое воспроизведение
Громкость
Воспроизведение MP3/JPEG дисков
Настройка DVD Основные настройки
Выбор языка
Настройка аудио
Цифровые настройки
Общая информация
Руководство по устранению
неисправностей Источники помех
Комплект поставки
Технические характеристики
20 21
СодержаниеПеред началом эксплуатации
Уважаемый покупатель!Благодарим Вас за покупку...
