ТЕЛЕВИЗОР ЦВЕТНОГО ИЗОБРАЖЕНИЯ С ЖИДКОКРИСТАЛЛИЧЕСКИМ ЭКРАНОМ (LCD) LED TV Руководство по эксплуатации Instruction manual H-LED2202-F
Page 2
Table of contents Before you start Utilization of the product Important safeguards Stand installation Accessories Connection ConnectionOutdoor antenna connection Other connections Operation Control elements Front and lateral panel Back panel Remote controller Changing the battery General operations AV signal sources Teletext operations PC screen OSD operation Picture setting Sound setting TV Setting Function setting PC setup General information Troubleshooting Causes of interference...
Page 3
23 Table of contentsBefore you start If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. Please contact your local authorities for the correct method of disposal. By doing so, you will ensure that your disposed product undergoes the necessar y treatment, recovery and recycling and thus prevent potential negative effects...
Page 4
4 Before you start • Please place the product on a flat surface in a well-ventilated location. Keep it away from the burning-light, direct sunlight, vibration, high-temperature and humidity. Store the product with a temperature from –20 0C ~500C; otherwise you may destroy the product. • Do not place any vase, potted plant, cup, medicine and any container with water on this product. If the liquid is spilt, it may cause the fire, electric shock or breakdown. • Do not install it at the place on...
Page 5
5 Сonnection Outdoor Antenna ConnectionUse 75Ω coaxial cable plug or 300-75Ω impedance converter to plug in antenna input terminal on the rear of the cabinet. Other connections• Connect the audio sources (Including DVD, VCDR, CAMCORDER and PC) to the proper stereo audio input jacks ‘L’ and ‘R’. • Connect the video source to the composite video jack by RCA cable. • If the video source has a SCART output jack, you can connect the signal to the monitor by the SCART cable. • Insert the power cord...
Page 6
6 Operation Control elements Front and top panel 1. MENU button 2. CH+/CH- buttons 3. VOL+/VOL- buttons 4. INPUT button 5. POWER button 6. IR sensor 7. Power indicator Back panel 1. TVRF antenna socket 2. Stereo audio input 3. Composite video input 4. Component (YPbPr) input 5. Power socket 6. HDMI input 7. VGA input 8. PC audio input 9. SCART connector 10. Headphone output 12 345 6 7 1...
Page 7

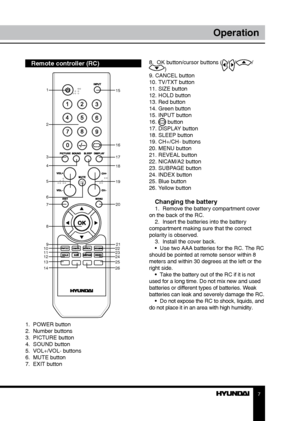

7 Operation Remote controller (RC) 1. POWER button 2. Number buttons 3. PICTURE button 4. SOUND button 5. VOL+/VOL- buttons 6. MUTE button 7. EXIT button8. OK button/cursor buttons ( ///) 9. CANCEL button 10. TV/TXT button 11. SIZE button 12. HOLD button 13. Red button 14. Green button 15. INPUT button 16. button 17. DISPLAY button 18. SLEEP button 19. CH+/CH- buttons 20. MENU button 21. REVEAL button 22. NICAM/A2 button 23. SUBPAGE button 24. INDEX button 25. Blue button 26. Yellow button...
Page 8

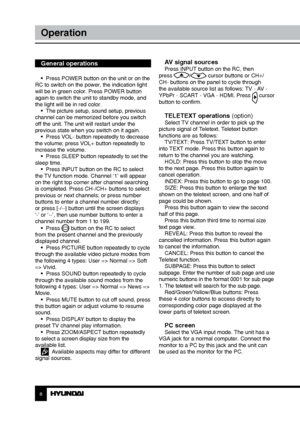

89 OperationOperation General operations • Press POWER button on the unit or on the RC to switch on the power, the indication light will be in green color. Press POWER button again to switch the unit to standby mode, and the light will be in red color. • The picture setup, sound setup, previous channel can be memorized before you switch off the unit. The unit will restart under the previous state when you switch on it again. • Press VOL- button repeatedly to decrease the volume; press VOL+...
Page 9
89 OperationOperation OSD operation Press MENU button on the RC to enter the OSD menu. Use / buttons to select a setting page displayed on the screen. Press button to go the page. Press / buttons to select the needed item, then use / buttons to select available setting or to adjust the selected item. Press OK button to confirm. After setting, press MENU button to return to the root menu or press EXIT button to exit menu setting. Picture setting Move Select Exit Picture mode Brightness...
Page 10
10 Operation with / buttons. • Fine tune: perform fine adjustment of the current frequency. • Skip: select On/Off. When set On, the corresponding channel will be skipped while listing channels up/down. • Sound system: select the sound system. • Channel swap: Press button to go to swap menu. Under CHANNEL1 and CHANNEL2 select channel numbers you want to swap, then press button to confirm operation. Function setting Move Select Exit Language Blue back TTX language Color temp. Reset Function...
