DISHWASHER Please read this manual carefully before operating your dishwasher. Retain it for future reference. OWNERS MANUAL MODEL : LD - 9230(1)W(S,M)H LD - 9230(1)W(S,M)HB LD - 9240(1)W(S,M)H LD - 9240(1)W(S,M)HB LD - 9250(1)W(M)HB
Page 2
CONTENTS SAFETY AND CAUTION 3 INSTALLATION INSTRUCTIONS 5 PARTS NAME 9 FUNCTION OF CONTROL BUTTON 10 HOW TO USE AND OPERATE 14 OPERATING SEQUENCE 20 PROGRAM 21 USER MAINTENANCE INSTRUCTIONS 22 TROUBLE SHOOTING GUIDE 23 SPECIFICATION
Page 3
3 SAFETY AND CAUTION • Please read this manual carefully before using the dishwasher for the first time. • This manual contains very important notes regarding the installation, use and maintenance of your dishwasher. • The manufacturer can not be responsible for problems caused by ignoring these safety and caution instructions. • This dishwasher is designed for normal household use. • Do not use the dishwasher for industrial and commercial use, or other purpose. • The appliance is not intended for use by...
Page 4
4 SAFETY AND CAUTION GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment- grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances. WARNING - Improper connection of the...
Page 5

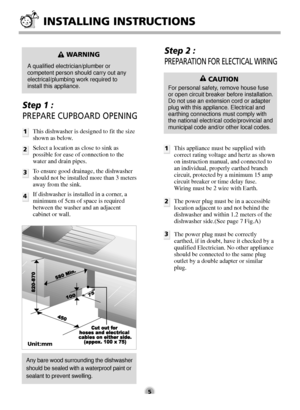

Unit:mm Step 1 : PREPARE CUPBOARD OPENINGStep 2 : PREPARATION FOR ELECTICAL WIRING 1 2 3This appliance must be supplied with correct rating voltage and hertz as shown on instruction manual, and connected to an individual, properly earthed branch circuit, protected by a minimum 15 amp circuit breaker or time delay fuse. Wiring must be 2 wire with Earth. The power plug must be in a accessible location adjacent to and not behind the dishwasher and within 1.2 meters of the dishwasher side.(See page 7...
Page 6
INSTALLATION INSTRUCTIONS 6 Step 3 : PREPARING THE DISHWASHER FOR INSTALLATION 1 2Lay the dishwasher on its back. Adjust the legs to the required height as shown in below figure. Step 4 : INSTALLING THE DISHWASHER IN CUPBOARD 1 2 Before sliding the dishwasher into the cupboard opening, all necessary height and balancing adjustments should be made using a spanner. Slide the dishwasher into the cabinet opening carefully. Make sure that the drain hose inside the cabinet is not kinked or stretched....
Page 7

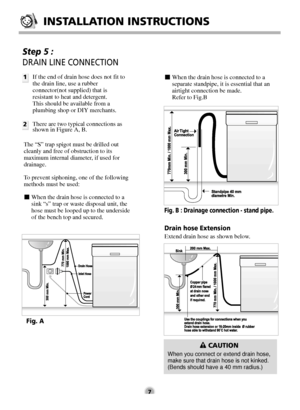

Step 5 : DRAIN LINE CONNECTION 1 2If the end of drain hose does not fit to the drain line, use a rubber connector(not supplied) that is resistant to heat and detergent. This should be available from a plumbing shop or DIY merchants. There are two typical connections as shown in Figure A, B. The “S” trap spigot must be drilled out cleanly and free of obstruction to its maximum internal diameter, if used for drainage. To prevent siphoning, one of the following methods must be used: ■When the drain hose is...
Page 8
INSTALLATION INSTRUCTIONS 8 Step 6 : WATER SUPPLY CONNECTION 1 2 Connect the water supply hose to the water tap as shown.(Some models consist of an inlet valve and hose.) This dishwasher may be fed with either hot or cold water. If the water can not be maintained below 65ºC, the dishwasher must be connected to cold water. When connecting, the sealant tape or sealing compound to avoid water leaks. Make sure that the line is not kinked or sharply bent. Step 7 : FINAL CHECK AND ASSEMBLING 1 2Securely hand...
Page 9
1. Control Panel 2. Front Cover 3. Process Monitor 4. Power Switch 5. Drain Hose 6. Inlet Hose 7. Power Cord 8. Adjust Leg 9. Door Handle 10. Lower Cover11. Upper Rack 12. Cutlery Basket 13. Detergent And Rinse Aid Dispenser 14. Upper Spray Arm 15. Lower Spray Arm 16. Filter ASM 17. Lower Rack 18. Salt Container Cap ※The appearance and specifications may vary without notice. PARTS NAME 9 Funnel(1EA) Inlet hose(1EA) 1 34 5 6 7 8 2
