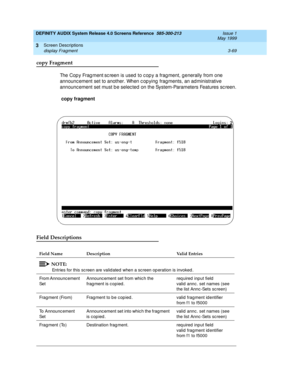

Lucent Technologies Definity Audix System Release 4.0 Screens Reference Manual

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions
3-69 display Fragment
3
copy Fragment
The Cop y Frag ment sc reen is used  to c op y a frag ment, g enerally from one
announc ement set to another. When c op ying  fragments, an administrative
announc ement set must b e selec ted  on the System-Parameters Features sc reen.
 copy fragment

Field Descriptions
Field Name Description Valid Entries
NOTE:
Entries for this sc reen are valid ated  when a...

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions
3-70 Help
3
3Help
The AUDIX Command  Line Help sc reen d esc rib es the kind s of help  that are
availab le with the DEFINITY AUDIX System ad ministration and  maintenanc e
p roc ed ures.
help
Th e  H e l p
 screen has two d isp lay only p ag es.

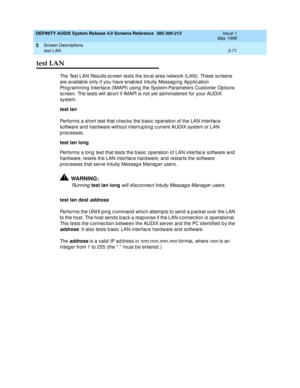

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions
3-71 test LAN
3
test LAN
The Test LAN Results sc reen tests the local area network (LAN). These screens
are availab le only if you have enab led  Intuity Messag ing  Ap plic ation
Prog ramming  Interfac e (IMAPI) using  the System-Parameters Customer Op tions
sc reen. The tests will ab ort if IMAPI is not yet ad ministered  for your AUDIX
system.
test lan

Performs a short test that checks the...

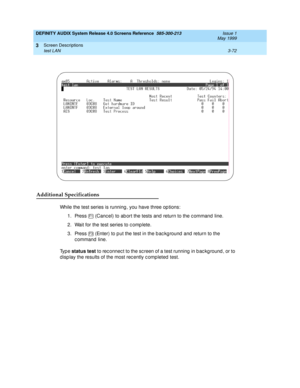

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions
3-72 test LAN
3
Additional Specifications
While the test series is running , you have three op tions:
1. Press   (Canc el) to ab ort the tests and  return to the c ommand  line.
2. Wait for the test series to c omp lete.
3. Press   (Enter) to p ut the test in the b ac kg round  and  return to the
c ommand  line.
Ty p e  status test
 to rec onnec t to the sc reen of a test running  in b ac kg round ,...

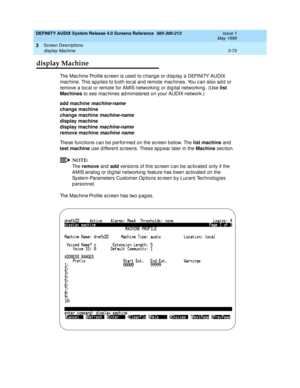

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions
3-73 display Machine
3
display Machine
The Mac hine Profile sc reen is used  to c hang e or d isp lay a DEFINITY AUDIX
mac hine. This ap p lies to b oth loc al and  remote mac hines. You c an also ad d  or
remove a loc al or remote for AMIS networking or d ig ital networking . (Use list
Machines
 to see mac hines ad ministered  on your AUDIX network.)
add machine

machine-name
change machine...

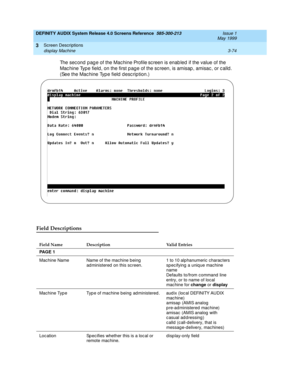

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions
3-74 display Machine
3
The second page of the Machine Profile sc reen is enab led  if the value of the
Mac hine Typ e field , on the first p age of the sc reen, is amisap , amisac , or c alld .
(See the Machine Type field description.)
Field Descriptions
Field Name Description Valid Entries
PA G E  1
Mac hine Name Name of the mac hine being
administered  on this screen. 1 to 10 alp hanumeric...

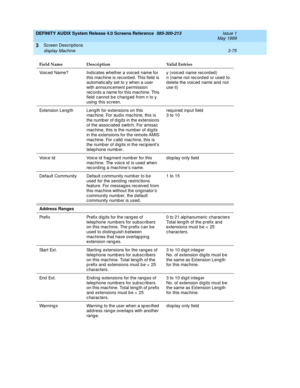

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions
3-75 display Machine
3
Voiced  Name? Ind icates whether a voic ed  name for
this mac hine is rec ord ed. This field  is
automatic ally set to y when a user
with announcement p ermission
rec ords a name for this machine. This
field c annot b e c hang ed  from n to y
using  this screen. y (voic ed  name record ed )
n (name not rec ord ed  or used  to
d elete the voiced  name and  not
use it)...

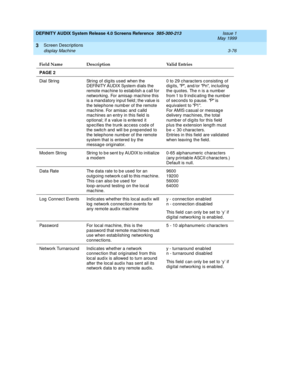

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions
3-76 display Machine
3
PAGE 2
Dial String String of dig its used  when the
DEFINITY AUDIX System d ials the
remote mac hine to estab lish a call for
networking . For amisap mac hine this
is a mand atory inp ut field ; the value is
the telephone numb er of the remote
mac hine. For amisac and  c alld
mac hines an entry in this field  is
optional; if a value is entered it
sp ecifies the trunk...

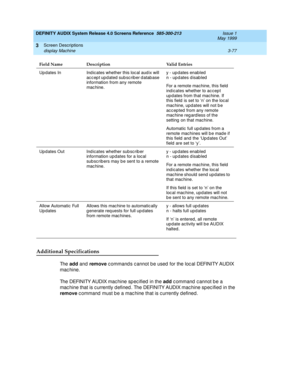

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions
3-77 display Machine
3
Additional Specifications
Th e  add
 and  remove
 c ommand s c annot b e used  for the loc al DEFINITY AUDIX
mac hine.
The DEFINITY AUDIX mac hine sp ec ified  in the add
 c ommand  c annot b e a
mac hine that is c urrently d efined . The DEFINITY AUDIX mac hine sp ec ified  in the
remove
 c ommand  must b e a mac hine that is c urrently d efined .
Up dates In Ind icates...

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions
3-78 list Machines
3

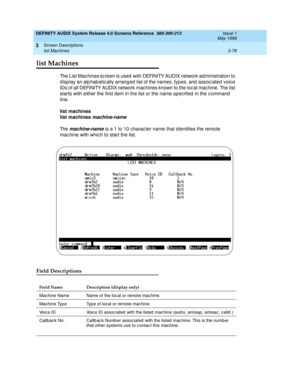

list Machines
The List Machines sc reen is used  with DEFINITY AUDIX network administration to
d isp lay an alp hab etic ally arrang ed  list of the names, typ es, and  assoc iated  voic e
IDs of all DEFINITY AUDIX network mac hines known to the loc al mac hine. The list
starts with either the first item in the list or the name spec ified in the c ommand
line.
list machines...
