Lucent Technologies Definity Audix System Release 4.0 Screens Reference Manual

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions

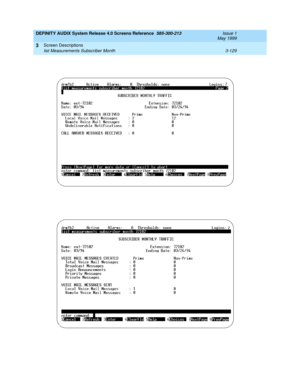

3-129 list Measurements Subscriber Month
3

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions
3-130 list Measurements Subscriber Month
3

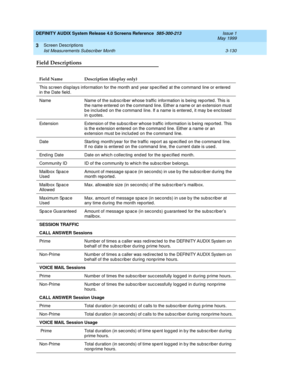

Field Descriptions
Field Name Description (display only)
This sc reen d isp lays information for the month and  year spec ified  at the c ommand  line or entered
in the Date field.
Name Name of the sub scrib er whose traffic  information is being  rep orted . This is
the name entered  on the c ommand  line. Either a name or an extension must
b e includ ed...

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions

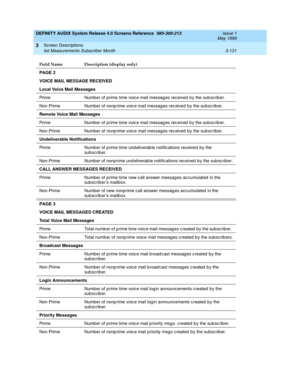

3-131 list Measurements Subscriber Month
3
PAGE 2
VOICE MAIL MESSAGE RECEIVED
Local Voice Mail Messages
Prime Numb er of p rime time voic e mail messag es rec eived  b y the sub sc rib er.
Non-Prime Number of nonp rime voice mail messages rec eived  by the subscrib er.
Remote Voice Mail Messages
Prime Number of p rime time voic e mail messag es rec eived  b y the sub sc rib er.
Non-Prime Number of...

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions

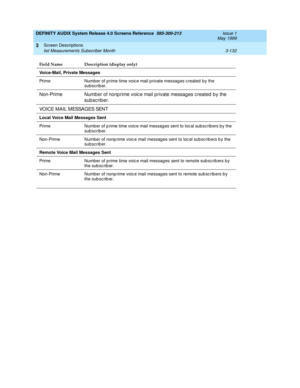

3-132 list Measurements Subscriber Month
3
Voice-Mail, Private Messages
Prime Number of p rime time voic e mail p rivate messages c reated  b y the
subscrib er.
Non-Prime Numb er of nonp rime voic e mail p rivate messag es c reated  b y the
sub scrib er.
VOI C E M A I L  M ESSA G ES SEN T
Local Voice Mail Messages Sent
Prime Number of p rime time voice mail messag es sent to loc al subsc rib ers...

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions

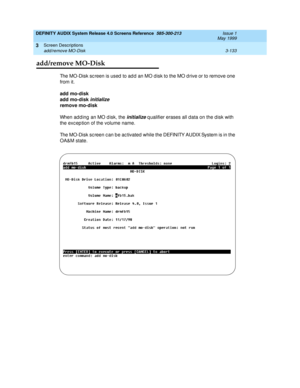

3-133 add/remove MO-Disk
3
add/remove MO-Disk
The MO-Disk sc reen is used  to ad d  an MO disk to the MO d rive or to remove one
from it.
add mo-disk
add mo-disk
initialize
remove mo-disk
When ad d ing  an MO d isk, the
initialize q ualifier erases all data on the d isk with
the exc ep tion of the volume name.
The MO-Disk sc reen c an b e ac tivated  while the DEFINITY AUDIX System is in the
OA&M...

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions
3-134 add/remove MO-Disk
3

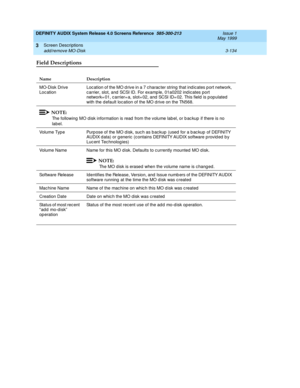

Field Descriptions
Name Description
MO-Disk Drive
Loc ationLoc ation of the MO d rive in a 7 charac ter string  that ind icates p ort network,
c arrier, slot, and  SCSI ID. For examp le, 01a0202 ind icates port
network= 01, c arrier= a, slot= 02, and  SCSI ID= 02. This field  is p opulated
with the d efault location of the MO d rive on the TN568.
NOTE:
The following...

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions

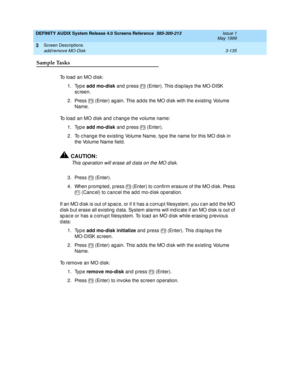

3-135 add/remove MO-Disk
3
Sample Tasks
To load  an MO disk:
1. Type add mo-disk
 and  p ress   (Enter). This d isp lays the MO-DISK
sc reen.
2. Press   (Enter) ag ain. This add s the MO d isk with the existing  Volume
Name.
To load  an MO disk and  c hang e the volume name:
1. Type add mo-disk
 and  p ress   (Enter).
2. To c hange the existing  Volume Name, typ e the name for this MO disk in
the...

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions

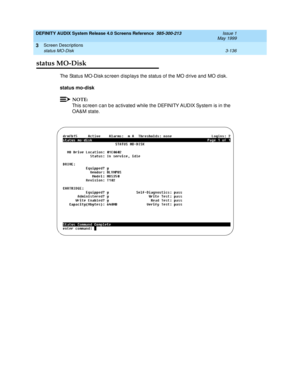

3-136 status MO-Disk
3
status MO-Disk
The Status MO-Disk sc reen d isp lays the status of the MO d rive and  MO d isk.
status mo-disk
NOTE:
This sc reen c an b e ac tivated  while the DEFINITY AUDIX System is in the
OA&M state.

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions

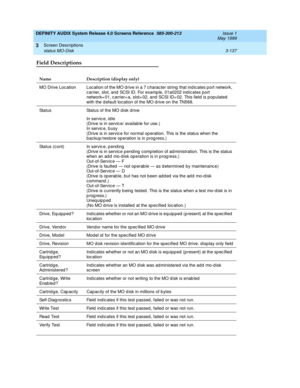

3-137 status MO-Disk
3
Field Descriptions
Name Description (display only)
MO Drive Loc ation Loc ation of the MO d rive in a 7 c harac ter string  that ind ic ates p ort network,
c arrier, slot, and  SCSI ID. For examp le, 01a0202 ind icates port
network= 01, c arrier= a, slot= 02, and  SCSI ID= 02. This field  is p opulated
with the d efault location of the MO d rive on the TN568.
Status Status...

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions

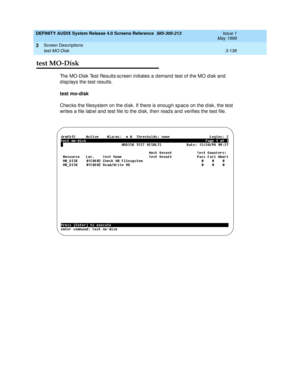

3-138 test MO-Disk
3
test MO-Disk
The MO-Disk Test Results sc reen initiates a d emand  test of the MO d isk and
d isp lays the test results.
test mo-disk
Chec ks the filesystem on the d isk. If there is enoug h sp ac e on the d isk, the test
writes a file lab el and  test file to the d isk, then read s and  verifies the test file.
