NEC Neax2000 Ivs Feature Programming Manual

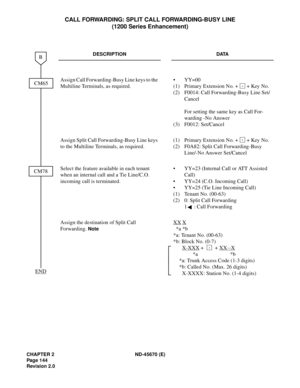

CHAPTER 2 ND-45670 (E)
Pag e 1 44
Revision 2.0
CALL FORWARDING: SPLIT CALL FORWARDING-BUSY LINE
(1200 Series Enhancement)
DESCRIPTION DATA
Assign Call Forwarding-Busy Line keys to the
Multiline Terminals, as required.• YY=00
(1) Primary Extension No. + + Key No.
(2) F0014: Call Forwarding-Busy Line Set/
Cancel
For setting the same key as Call For-
warding -No Answer
(3) F0012: Set/Cancel
Assign Split Call Forwarding-Busy Line keys
to the Multiline Terminals, as required.(1) Primary Extension No. + +...

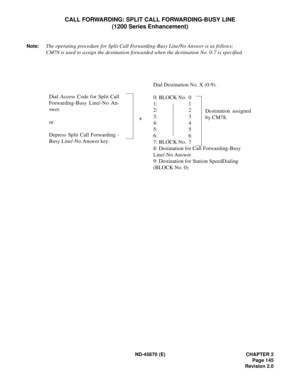

ND-45670 (E) CHAPTER 2
Page 145
Revision 2.0
CALL FORWARDING: SPLIT CALL FORWARDING-BUSY LINE
(1200 Series Enhancement)
Note:The operating procedure for Split Call Forwarding-Busy Line/No Answer is as follows:
CM78 is used to assign the destination forwarded when the destination No. 0-7 is specified.
Dial Destination No. X (0-9).
0: BLOCK No. 0
1: 1
2: 2
3: 3
4: 4
5: 5
6: 6
7: BLOCK No. 7
8: Destination for Call Forwarding-Busy
Line/-No Answer
9: Destination for Station SpeedDialing
(BLOCK No. 0)
+
Dial...

CHAPTER 2 ND-45670 (E)
Pag e 1 46
Revision 2.0

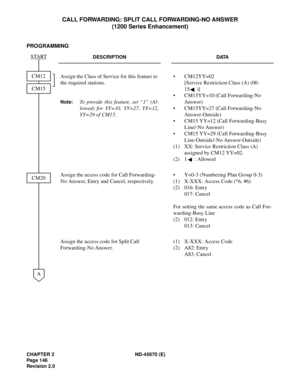

CALL FORWARDING: SPLIT CALL FORWARDING-NO ANSWER
(1200 Series Enhancement)
PROGRAMMING
DESCRIPTION DATA
Assign the Class of Service for this feature to
the required stations.
Note:To provide this feature, set “1” (Al-
lowed) for YY=10, YY=27, YY=12,
YY=29 of CM15.• CM12YY=02
[Service Restriction Class (A) (00-
15 )]
• CM15YY=10 (Call Forwarding-No
Answer)
• CM15YY=27 (Call Forwarding-No
Answer-Outside)
• CM15 YY=12 (Call Forwarding-Busy
Line/-No...

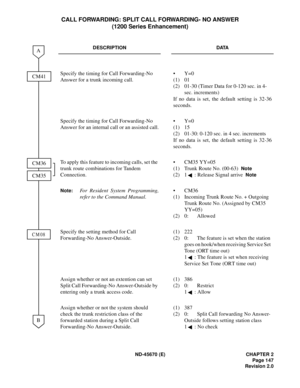

ND-45670 (E) CHAPTER 2
Page 147
Revision 2.0
CALL FORWARDING: SPLIT CALL FORWARDING- NO ANSWER
(1200 Series Enhancement)
DESCRIPTION DATA
Specify the timing for Call Forwarding-No
Answer for a trunk incoming call.•Y=0
(1) 01
(2) 01-30 (Timer Data for 0-120 sec. in 4-
sec. increments)
If no data is set, the default setting is 32-36
seconds.
Specify the timing for Call Forwarding-No
Answer for an internal call or an assisted call.•Y=0
(1) 15
(2) 01-30: 0-120 sec. in 4 sec. increments
If no data is set,...

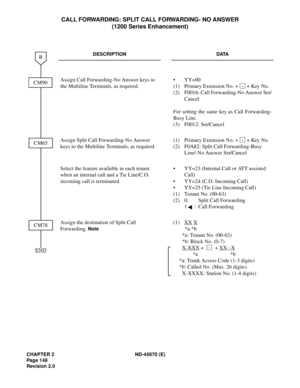

CHAPTER 2 ND-45670 (E)
Pag e 1 48
Revision 2.0
CALL FORWARDING: SPLIT CALL FORWARDING- NO ANSWER
(1200 Series Enhancement)
DESCRIPTION DATA
Assign Call Forwarding-No Answer keys to
the Multiline Terminals, as required.• YY=00
(1) Primary Extension No. + + Key No.
(2) F0016: Call Forwarding-No Answer Set/
Cancel
For setting the same key as Call Forwarding-
Busy Line.
(3) F0012: Set/Cancel
Assign Split Call Forwarding-No Answer
keys to the Multiline Terminals, as required.(1) Primary Extension No. + +...

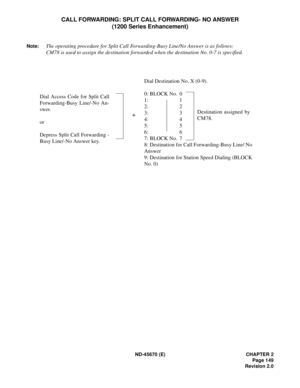

ND-45670 (E) CHAPTER 2
Page 149
Revision 2.0
CALL FORWARDING: SPLIT CALL FORWARDING- NO ANSWER
(1200 Series Enhancement)
Note:The operating procedure for Split Call Forwarding-Busy Line/No Answer is as follows:
CM78 is used to assign the destination forwarded when the destination No. 0-7 is specified.
Dial Destination No. X (0-9).
0: BLOCK No. 0
1: 1
2: 2
3: 3
4: 4
5: 5
6: 6
7: BLOCK No. 7
8: Destination for Call Forwarding-Busy Line/ No
Answer
9: Destination for Station Speed Dialing (BLOCK
No. 0)
+...

CHAPTER 2 ND-45670 (E)
Pag e 1 50
Revision 2.0

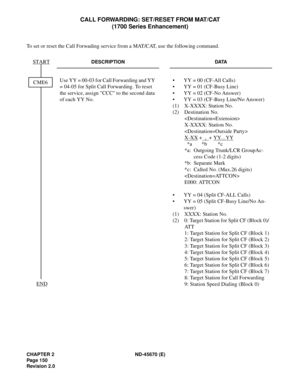

CALL FORWARDING: SET/RESET FROM MAT/CAT
(1700 Series Enhancement)
To set or reset the Call Forwading service from a MAT/CAT, use the following command.
DESCRIPTION DATA
Use YY = 00-03 for Call Forwarding and YY
= 04-05 for Split Call Forwarding. To reset
the service, assign CCC to the second data
of each YY No.• YY = 00 (CF-All Calls)
• YY = 01 (CF-Busy Line)
• YY = 02 (CF-No Answer)
• YY = 03 (CF-Busy Line/No Answer)
(1) X-XXXX: Station No.
(2)...

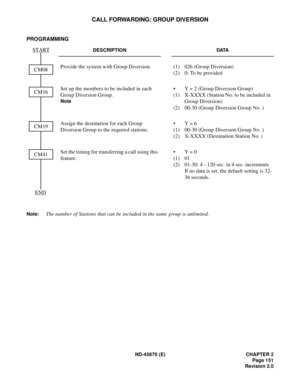

ND-45670 (E) CHAPTER 2
Page 151
Revision 2.0
CALL FORWARDING: GROUP DIVERSION
PROGRAMMING
Note:The number of Stations that can be included in the same group is unlimited.
DESCRIPTION DATA
Provide the system with Group Diversion. (1) 026 (Group Diversion)
(2) 0: To be provided
Set up the members to be included in each
Group Diversion Group.
Note
• Y = 2 (Group Diversion Group)
(1) X-XXXX (Station No. to be included in
Group Diversion)
(2) 00-30 (Group Diversion Group No. )
Assign the destination for...

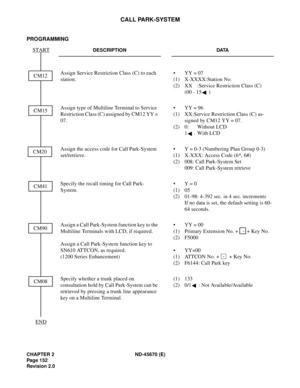

CHAPTER 2 ND-45670 (E)
Pag e 1 52
Revision 2.0
CALL PARK-SYSTEM
PROGRAMMING
DESCRIPTION DATA
Assign Service Restriction Class (C) to each
station.• YY = 07
(1) X-XXXX:Station No.
(2) XX :Service Restriction Class (C)
(00 - 15 )
Assign type of Multiline Terminal to Service
Restriction Class (C) assigned by CM12 YY =
07.• YY = 96
(1) XX:Service Restriction Class (C) as-
signed by CM12 YY = 07.
(2) 0: Without LCD
1
:With LCD
Assign the access code for Call Park-System
set/retrieve.• Y = 0-3 (Numbering...

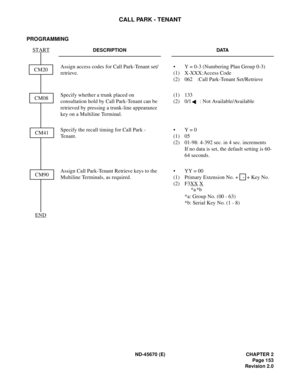

ND-45670 (E) CHAPTER 2
Page 153
Revision 2.0
CALL PARK - TENANT
PROGRAMMING
DESCRIPTION DATA
Assign access codes for Call Park-Tenant set/
retrieve.• Y = 0-3 (Numbering Plan Group 0-3)
(1) X-XXX:Access Code
(2) 062 :Call Park-Tenant Set/Retrieve
Specify whether a trunk placed on
consultation hold by Call Park-Tenant can be
retrieved by pressing a trunk-line appearance
key on a Multiline Terminal.(1) 133
(2) 0/1  : Not Available/Available
Specify the recall timing for Call Park -
Tenant.•Y = 0
(1) 05...
