NEC Neax2000 Ivs Feature Programming Manual

CHAPTER 2 ND-45670 (E)
Pag e 1 64
Revision 2.0
CLASS OF SERVICE
PROGRAMMING

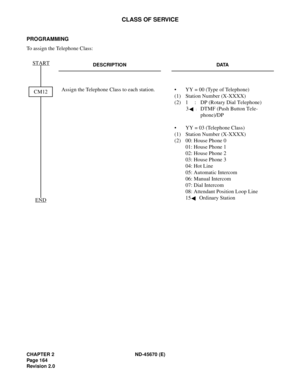

To assign the Telephone Class:
DESCRIPTION DATA
Assign the Telephone Class to each station.  • YY = 00 (Type of Telephone)
(1) Station Number (X-XXXX)
(2) 1 : DP (Rotary Dial Telephone)
3
:DTMF (Push Button Tele-
phone)/DP
• YY = 03 (Telephone Class)
(1) Station Number (X-XXXX)
(2) 00: House Phone 0
01: House Phone 1
02: House Phone 2
03: House Phone 3
04: Hot Line
05: Automatic Intercom
06: Manual Intercom
07: Dial...

ND-45670 (E) CHAPTER 2
Page 165
Revision 2.0
CLASS OF SERVICE

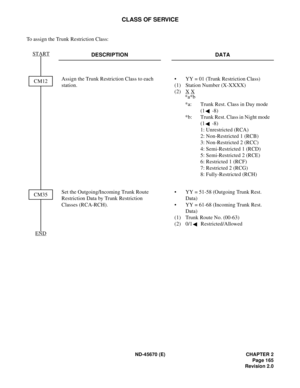

To assign the Trunk Restriction Class:
DESCRIPTION DATA
Assign the Trunk Restriction Class to each
station. • YY = 01 (Trunk Restriction Class)
(1) Station Number (X-XXXX)
(2) X
 X
*a: Trunk Rest. Class in Day mode
(1 -8)
*b: Trunk Rest. Class in Night mode
(1 -8)
1: Unrestricted (RCA)
2: Non-Restricted 1 (RCB)
3: Non-Restricted 2 (RCC)
4: Semi-Restricted 1 (RCD)
5: Semi-Restricted 2 (RCE)
6: Restricted 1 (RCF)
7: Restricted 2 (RCG)
8:...

CHAPTER 2 ND-45670 (E)
Pag e 1 66
Revision 2.0
CLASS OF SERVICE

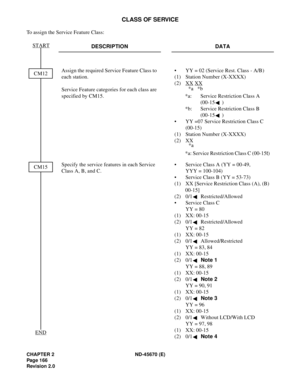

To assign the Service Feature Class:
DESCRIPTION DATA
Assign the required Service Feature Class to
each station.
Service Feature categories for each class are
specified by CM15.• YY = 02 (Service Rest. Class - A/B)
(1) Station Number (X-XXXX)
(2) XX
 XX
*a: Service Restriction Class A
(00-15 )
*b: Service Restriction Class B
(00-15 )
• YY =07 Service Restriction Class C
(00-15)
(1) Station Number (X-XXXX)
(2) XX
*a: Service...

ND-45670 (E) CHAPTER 2
Page 167
Revision 2.0
CLASS OF SERVICE

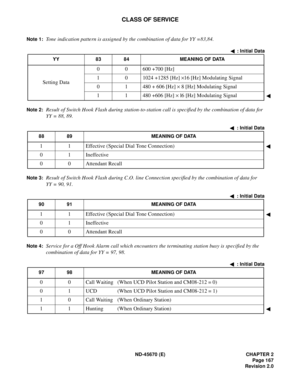

Note 1:Tone indication pattern is assigned by the combination of data for YY =83,84.
Note 2:Result of Switch Hook Flash during station-to-station call is specified by the combination of data for
YY = 88, 89.
Note 3:Result of Switch Hook Flash during C.O. line Connection specified by the combination of data for
YY = 90, 91.
Note 4:Service for a Off Hook Alarm call which encounters the terminating station busy is specified by the...

CHAPTER 2 ND-45670 (E)
Pag e 1 68
Revision 2.0

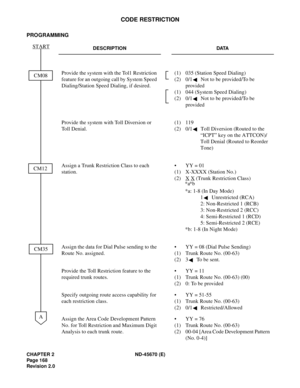

CODE RESTRICTION
PROGRAMMING
DESCRIPTION DATA
Provide the system with the Tol1 Restriction
feature for an outgoing call by System Speed
Dialing/Station Speed Dialing, if desired.(1) 035 (Station Speed Dialing)
(2) 0/1  Not to be provided/To be
provided
(1) 044 (System Speed Dialing)
(2) 0/1  Not to be provided/To be
provided
Provide the system with Toll Diversion or
Toll Denial.(1) 119
(2) 0/1  Toll Diversion (Routed to the
“ICPT” key on the...

ND-45670 (E) CHAPTER 2
Page 169
Revision 2.0
CODE RESTRICTION
DESCRIPTION DATA

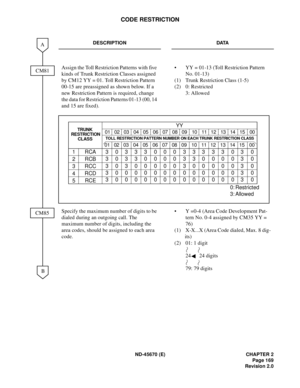

Assign the Toll Restriction Patterns with five
kinds of Trunk Restriction Classes assigned
by CM12 YY = 01. Toll Restriction Pattern
00-15 are preassigned as shown below. If a
new Restriction Pattern is required, change
the data for Restriction Patterns 01-13 (00, 14
and 15 are fixed).• YY = 01-13 (Toll Restriction Pattern
No. 01-13)
(1) Trunk Restriction Class (1-5)
(2) 0: Restricted
3: Allowed
Specify the maximum...

CHAPTER 2 ND-45670 (E)
Pag e 1 70
Revision 2.0
CODE RESTRICTION
DESCRIPTION DATA

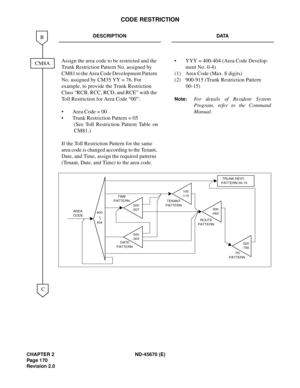

Assign the area code to be restricted and the
Trunk Restriction Pattern No. assigned by
CM81 to the Area Code Development Pattern
No. assigned by CM35 YY = 76. For
example, to provide the Trunk Restriction
Class “RCB, RCC, RCD, and RCE” with the
Toll Restriction for Area Code “00”:
• Area Code = 00
• Trunk Restriction Pattern = 05
(See Toll Restriction Pattern Table on
CM81.)
If the Toll Restriction Pattern for the...

ND-45670 (E) CHAPTER 2
Page 171
Revision 2.0
CODE RESTRICTION
DESCRIPTION DATA

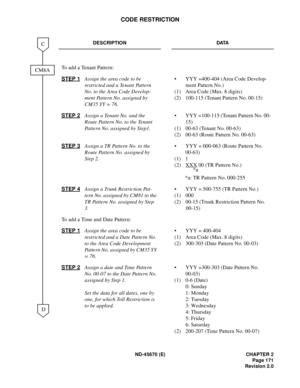

To add a Tenant Pattern:
STEP 1
Assign the area code to be
restricted and a Tenant Pattern
No. to the Area Code Develop-
ment Pattern No. assigned by
CM35 YY = 76. • YYY =400-404 (Area Code Develop-
ment Pattern No.)
(1) Area Code (Max. 8 digits)
(2) 100-115 (Tenant Pattern No. 00-15)
STEP 2
Assign a Tenant No. and the
Route Pattern No. to the Tenant
Pattern No. assigned by Step1.• YYY =100-115 (Tenant Pattern No. 00-...

CHAPTER 2 ND-45670 (E)
Pag e 1 72
Revision 2.0
CODE RESTRICTION
DESCRIPTION DATA

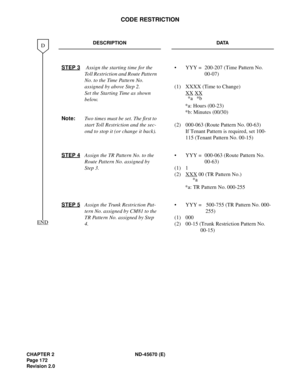

STEP 3 Assign the starting time for the
Toll Restriction and Route Pattern
No. to the Time Pattern No.
assigned by above Step 2.
Set the Starting Time as shown
below.
Note:
Two times must be set. The first to
start Toll Restriction and the sec-
ond to stop it (or change it back).• YYY = 200-207 (Time Pattern No.
00-07)
(1) XXXX (Time to Change)
XX
 XX
*a: Hours (00-23)
*b: Minutes (00/30)
(2) 000-063 (Route...

ND-45670 (E) CHAPTER 2
Page 173
Revision 2.0

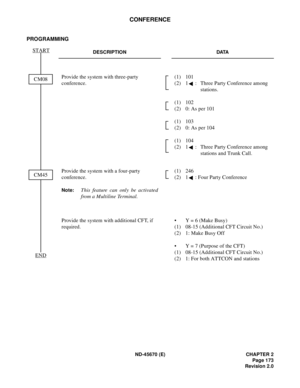

CONFERENCE
PROGRAMMING
DESCRIPTION DATA
Provide the system with three-party
conference. (1) 101
(2) 1 : Three Party Conference among
stations.
(1) 102
(2) 0: As per 101
(1) 103
(2) 0: As per 104
(1) 104
(2) 1 : Three Party Conference among
stations and Trunk Call.
Provide the system with a four-party
conference.
Note:This feature can only be activated
from a Multiline Terminal.(1) 246
(2) 1 : Four Party Conference
Provide the system with additional...
