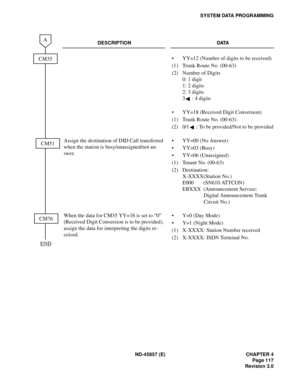

ND-45857 (E) CHAPTER 4
Page 117
Revision 3.0
SYSTEM DATA PROGRAMMING
DESCRIPTION DATA
• YY=12 (Number of digits to be received)
(1) Trunk Route No. (00-63)
(2) Number of Digits
0: 1 digit
1: 2 digits
2: 3 digits
3 : 4 digits
• YY=18 (Received Digit Conversion)
(1) Trunk Route No. (00-63)
(2) 0/1 : To be provided/Not to be provided
Assign the destination of DID Call transferred
when the station is busy/unassigned/not an-
swer.• YY=00 (No Answer)
• YY=03 (Busy)
• YY=06 (Unassigned)
(1) Tenant No....

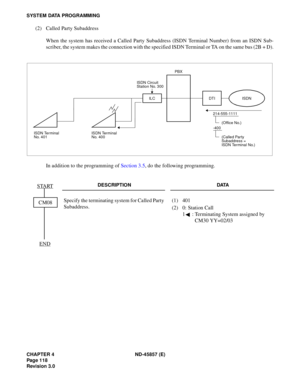

CHAPTER 4  ND -4 5857 ( E)
S YST EM  DATA P RO G RA MMING
ISDN
ISDN  Te rm in a l
IL C   DTI
(O ffice  N o.)
-4 0 0
(C alle d  PartyS ub ad dre ss =
C M 08
END

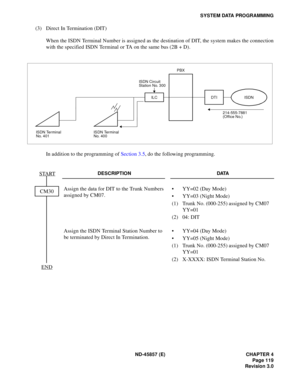

ND -4 5857 ( E)  CHAPTER 4
SYSTEM  DATA  P R O GRAMM ING
ISDN
I S DN  T e rm in al
IL C   DTI
C M 30
END

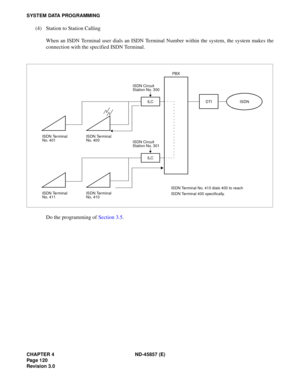

CHAPTER 4  ND -4 5857 ( E)
S YST EM  DATA P RO G RA MMING
IS D N
ISDN  Te rm in a l
ILC   DTI
ISDN  Te rm in a l
ILC
IS DN  T e rm in al N o.  4 1 0 d ia ls 4 00  to  re ach

ND-45857 (E) CHAPTER 4
Addendum-001 Page 121
AUGUST, 1998 Revision 3.1
SYSTEM DATA PROGRAMMING
3.6.5 Group Call Assignment
(1) ISDN Indial
When receiving an ISDN Circuit Number as the ISDN Indial Number or when converting an ISDN Indial
Number to an ISDN Circuit Number by CM76, the system makes the connection with all ISDN Terminals
or Terminal Adapters (TA) on the same bus (2B + D).
In addition to the programming of Section 3.5, do the following programming.
DESCRIPTION DATA
Assign the data for DID to...

CHAPTER 4 ND-45857 (E)
Pag e 1 22
Revision 3.0
SYSTEM DATA PROGRAMMING

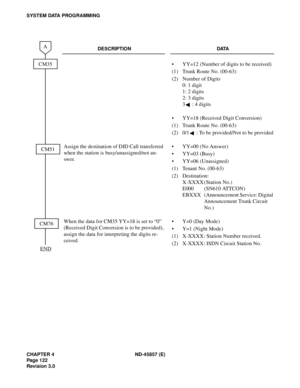

DESCRIPTION DATA
• YY=12 (Number of digits to be received)
(1) Trunk Route No. (00-63)
(2) Number of Digits
0: 1 digit
1: 2 digits
2: 3 digits
3 : 4 digits
• YY=18 (Received Digit Conversion)
(1) Trunk Route No. (00-63)
(2) 0/1 : To be provided/Not to be provided
Assign the destination of DID Call transferred
when the station is busy/unassigned/not an-
swer.• YY=00 (No Answer)
• YY=03 (Busy)
• YY=06 (Unassigned)
(1) Tenant No....

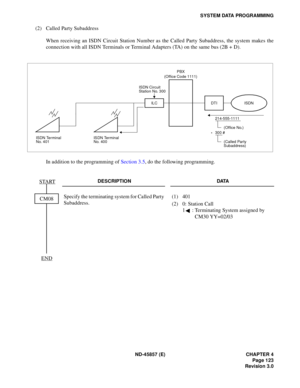

ND -4 5857 ( E)  CHAPTER 4
SYSTEM  DATA  P R O GRAMM ING
ISDN
I S DN  T e rm in al
IL C   DTI
(O ffic e  N o.)
3 0 0 #
(C alle d  P artyS ub ad dres s)
C M 08
END

CHAPTER 4  ND -4 5857 ( E)
S YST EM  DATA P RO G RA MMING
IS DN
ISDN  Te rm in al
IL C   DTI
CM 30
END

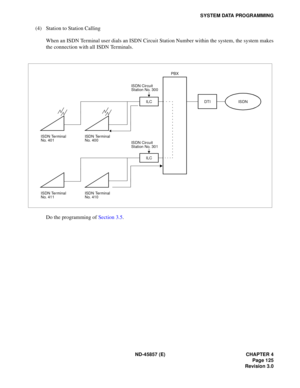

ND -4 5857 ( E)  CHAPTER 4
SYSTEM  DATA  P R O GRAMM ING
I S DN
IS DN  T er min al
IL C   DTI
IS DN  T er min al
IL C

CHAPTER 4 ND-45857 (E)
Pag e 1 26
Revision 3.0
SYSTEM DATA PROGRAMMING

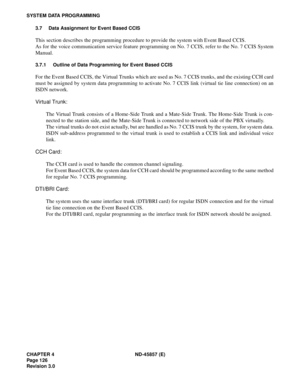

3.7 Data Assignment for Event Based CCIS
This section describes the programming procedure to provide the system with Event Based CCIS.
As for the voice communication service feature programming on No. 7 CCIS, refer to the No. 7 CCIS System
Manual.
3.7.1 Outline of Data Programming for Event Based CCIS
For the Event Based CCIS, the Virtual Trunks which are used as No. 7 CCIS trunks, and the existing CCH card
must be assigned by system...
