NEC Visualink 128/384 Director Guide

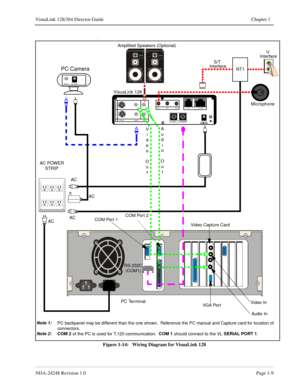

NDA-24248 Revision 1.0Page 1-9
VisuaLink 128/384 Director Guide Chapter 1
.
Figure 1-14:   Wiring Diagram for VisuaLink 128
+
+
++
+DC IN 5V+ -  Serial1           Serial2/RMT
O
U
T
I
N
VIDEO2                                VIDEO1            AUDIO
++TEL                           S/T LINEMI C1                                     MI C2                                     MI C3
ACACVisuaLink 128
AC POWER
STRIPMicrophone
PC Terminal
PC Camera
AC
Video Capture Card
RS-232C
 (COM1)U
Interface
S/T
Interface...

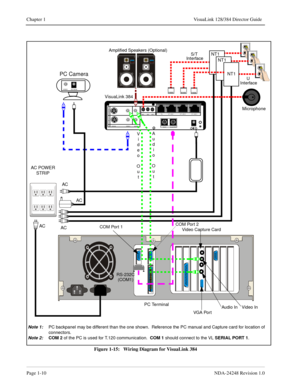

Page 1-10NDA-24248 Revision 1.0
Chapter 1 VisuaLink 128/384 Director Guide
Figure 1-15:   Wiring Diagram for VisuaLink 384
NT1
+
+
++
+DC IN 5V+ -  Serial1           Serial2/RMT
O
U
T
I
N
VID EO2                                V IDEO1            A UDIO
++TEL                 S/T LINE 1                   S /T LINE 2                  S /T LINE 3MIC1               MIC2             MIC 3
ACACVisuaLink 384
AC POWER
STRIPMicrophone
PC Terminal
PC Camera
AC
Video Capture Card
RS-232C
 (COM1)U
Interface S/T...

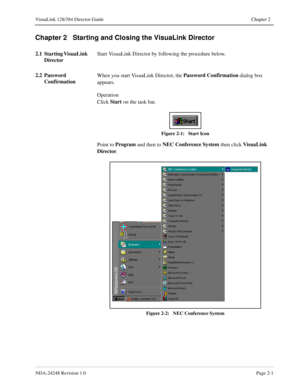

NDA-24248 Revision 1.0Page 2-1
VisuaLink 128/384 Director Guide Chapter 2
Chapter 2   Starting and Closing the VisuaLink Director
2.1 Starting VisuaLink
DirectorStart VisuaLink Director by following the procedure below.
2.2 Password
ConfirmationWhen you start VisuaLink Director, the Password Confirmation
 dialog box
appears.
Operation
Click Start
 on the task bar.
Figure 2-1:   Start Icon
Point to Program
 and then to NEC Conference System
then click VisuaLink
Director
.
Figure 2-2:   NEC Conference...

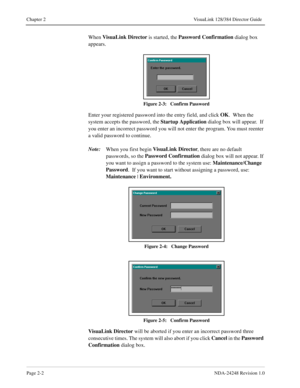

Page 2-2NDA-24248 Revision 1.0
Chapter 2 VisuaLink 128/384 Director Guide
When VisuaLink Director
 is started, the Password Confirmation
 dialog box
appears.
Figure 2-3:   Confirm Password
Enter your registered password into the entry field, and click OK
.  When the
system accepts the password, the Startup Application
 dialog box will appear.  If
you enter an incorrect password you will not enter the program. You must reenter
a valid password to continue.
Note:
When you first begin VisuaLink...

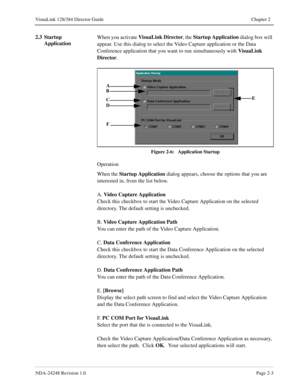

NDA-24248 Revision 1.0Page 2-3
VisuaLink 128/384 Director Guide Chapter 2
2.3 Startup
ApplicationWhen you activate VisuaLink Director
, the Startup Application
 dialog box will
appear. Use this dialog to select the Video Capture application or the Data
Conference application that you want to run simultaneously with VisuaLink
Director
.
Figure 2-6:   Application Startup
Operation
When the Startup Application
 dialog appears, choose the options that you are
interested in, from the list below.
A. Video...

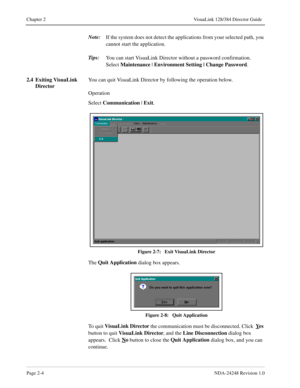

Page 2-4NDA-24248 Revision 1.0
Chapter 2 VisuaLink 128/384 Director Guide
Note:
If the system does not detect the applications from your selected path, you
cannot start the application.
Tips:
You can start VisuaLink Director without a password confirmation.
Select Maintenance
 | Environment Setting | Change Password
.
2.4 Exiting VisuaLink
DirectorYou can quit VisuaLink Director by following the operation below.
Operation
Select Communication
 | Exit
.
Figure 2-7:   Exit VisuaLink Director
The Quit...

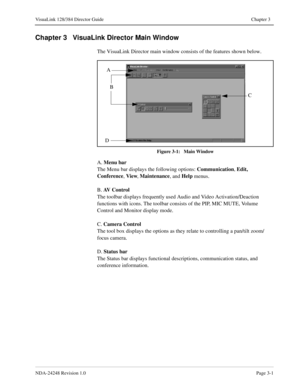

NDA-24248 Revision 1.0Page 3-1
VisuaLink 128/384 Director Guide Chapter 3
Chapter 3   VisuaLink Director Main Window
The VisuaLink Director main window consists of the features shown below.
Figure 3-1:   Main Window
A. Menu bar
The Menu bar displays the following options: Communication
, Edit,
Conference
, View
, Maintenance
, and Help
 menus.
B. AV Control
The toolbar displays frequently used Audio and Video Activation/Deaction
functions with icons. The toolbar consists of the PIP, MIC MUTE, Volume...

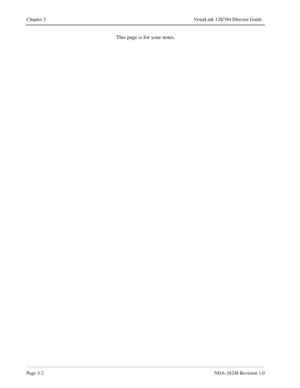

Page 3-2NDA-24248 Revision 1.0
Chapter 3 VisuaLink 128/384 Director Guide
This page is for your notes.

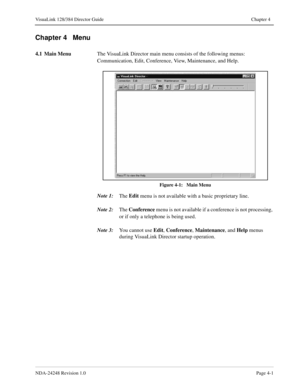

NDA-24248 Revision 1.0Page 4-1
VisuaLink 128/384 Director Guide Chapter 4
Chapter 4   Menu
4.1 Main Menu
The VisuaLink Director main menu consists of the following menus:
Communication, Edit, Conference, View, Maintenance, and Help.
Figure 4-1:   Main Menu
Note 1:
The Edit
 menu is not available with a basic proprietary line.
Note 2:
The Conference
 menu is not available if a conference is not processing,
or if only a telephone is being used.
Note 3:
You cannot use Edit
, Conference
, Maintenance
, and...

Page 4-2NDA-24248 Revision 1.0
Chapter 4 VisuaLink 128/384 Director Guide
4.2 Connection Menu
The Connection
menu provides the functions described below.
Figure 4-2:   Connection Menu
Connect
This function is used to establish a line connection. When you move the pointer
over Connect,
a sub menu appears with the following options: Dial, Redial,
Phonebook
. There are three ways to connect to a line: Dial, Redial,
 and
Phonebook
. These options are described below.
Dial
Click Dial
 to display the...
