Click Register
 New
.

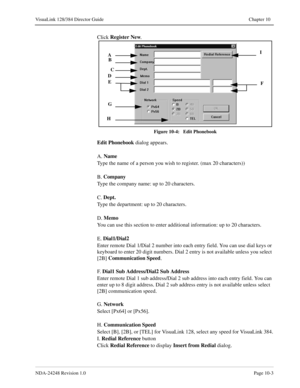

Figure 10-4:   Edit Phonebook
Edit Phonebook
 dialog appears.
A. Name
Type the name of a person you wish to register. (max 20 characters))
B. Company
Type the company name: up to 20 characters.
C. Dept.
Type the department: up to 20 characters.
D. Memo
You can use this section to enter additional information: up to 20 characters.
E. Dial1/Dial2
Enter remote Dial 1/Dial 2 number into each entry field. You...

Page 10-4NDA-24248 Revision 1.0
Chapter 10 VisuaLink 128/384 Director Guide

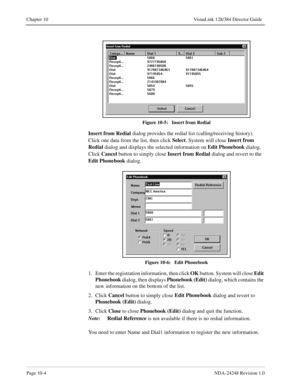

Figure 10-5:   Insert from Redial
Insert from
 Redial
 dialog provides the redial list (calling/receiving history).
Click one data from the list, then click Select
. System will close Insert from

Redial
dialog and displays the selected information on Edit Phonebook
dialog.
Click Cancel
 button to simply close Insert from
 Redial
 dialog and revert to the
Edit Phonebook
 dialog.
Figure 10-6:   Edit Phonebook
1. Enter the...

NDA-24248 Revision 1.0Page 10-5
VisuaLink 128/384 Director Guide Chapter 10
10.2 Editing
Phonebook
InformationFollow the operation below to change the contents of the data registered in the
Phonebook.
Select Edit
 | Phonebook
from the Main Menu
.

Figure 10-7:   Edit Phonebook Menu
Phonebook (Edit)
 dialog appears.
Figure 10-8:   Phonebook (Edit)
Click one of the data, which you wish to edit, then click Change
.
Edit Phonebook
 dialog displays the information of selected item.

Page 10-6NDA-24248 Revision 1.0
Chapter 10 VisuaLink 128/384 Director Guide

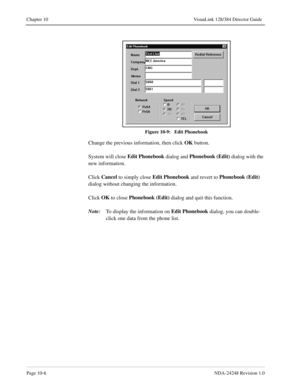

Figure 10-9:   Edit Phonebook
Change the previous information, then click OK
 button.
System will close Edit Phonebook
 dialog and Phonebook (Edit)
 dialog with the
new information.
Click Cancel
 to simply close Edit Phonebook
 and revert to Phonebook (Edit)

dialog without changing the information.
Click OK
 to close Phonebook (Edit)
 dialog and quit this function.
Note:
To display the information on Edit Phonebook
 dialog,...

NDA-24248 Revision 1.0Page 10-7
VisuaLink 128/384 Director Guide Chapter 10
10.3 Deleting
Phonebook
InformationFollow the operation below to delete the registered data from the Phonebook.
Select Edit
 | Phonebook
from the Main menu
.

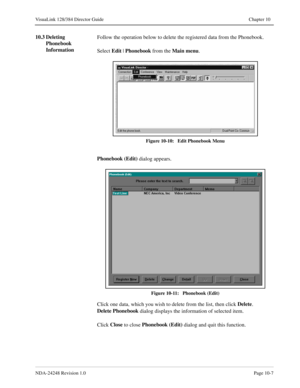

Figure 10-10:   Edit Phonebook Menu
Phonebook (Edit)
 dialog appears.
Figure 10-11:   Phonebook (Edit)
Click one data, which you wish to delete from the list, then click Delete
.
Delete Phonebook
 dialog displays the information of selected item.
Click Close
 to close...

Page 10-8NDA-24248 Revision 1.0
Chapter 10 VisuaLink 128/384 Director Guide

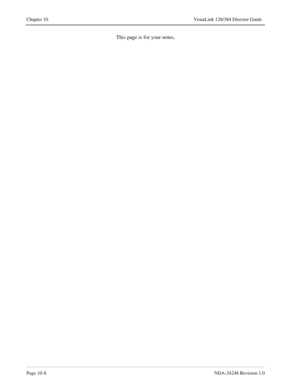

This page is for your notes.

NDA-24248 Revision 1.0Page 11-1
VisuaLink 128/384 Director Guide Chapter 11

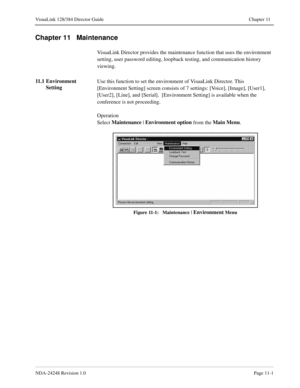

Chapter 11   Maintenance
VisuaLink Director provides the maintenance function that uses the environment
setting, user password editing, loopback testing, and communication history
viewing.
11.1 Environment
SettingUse this function to set the environment of VisuaLink Director. This
[Environment Setting] screen consists of 7 settings: [Voice], [Image], [User1],
[User2], [Line], and [Serial].  [Environment Setting] is available...

Page 11-2  NDA-24248 Revision 1.0
Chapter 1 1   VisuaLink 128/384 Directo r Guide

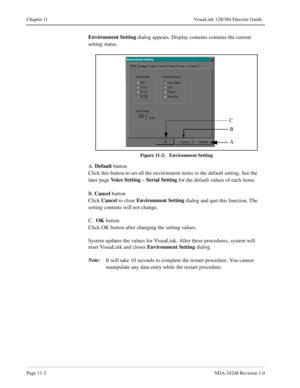

Envi ronment Setting
 dialo g ap pears. Displa y conte nts  contain s the current
A
C

NDA-24248 Revision 1.0Page 11-3
VisuaLink 128/384 Director Guide Chapter 11
11.1.1  Audio Setting
Use this function to set the audio related items.
Select Maintenance
 | Environment
 to display Environment
 Setting
, then
Audio
tab.

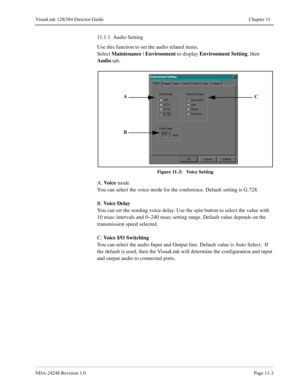

Figure 11-3:   Voice Setting
A. Vo i c e
 mode
You can select the voice mode for the conference. Default setting is G.728.
B. Vo i c e  D e l a y
You can set the sending voice delay. Use the spin button to select the value with
10 msec intervals and 0~240 msec setting...

Page 11-4NDA-24248 Revision 1.0
Chapter 11 VisuaLink 128/384 Director Guide
11.1.2  Image Setting
This function relates to video algorithm settings.
Select Maintenance
 | Environment
 to display Environment
 dialog, then Image
tab.

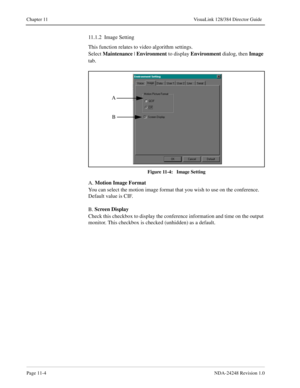

Figure 11-4:   Image Setting
A. Motion Image Format
You can select the motion image format that you wish to use on the conference.
Default value is CIF.
B. Screen Display
Check this checkbox to display the conference information and time on the output
monitor. This...
