NEC Xl 6500 Projector User Manual

212.INSTALLATION

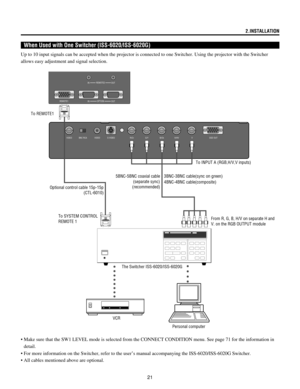

When Used with One Switcher (ISS-6020/ISS-6020G)
Up to 10 input signals can be accepted when the projector is connected to one Switcher. Using the projector with the Switcher
allows easy adjustment and signal selection.
¥ Make sure that the SW1 LEVEL mode is selected from the CONNECT CONDITION menu. See page 71 for the information in
detail.
¥ For more information on the Switcher, refer to the userÕs manual accompanying the ISS-6020/ISS-6020G Switcher.
¥ All cables mentioned above are...

22 2.INSTALLATION

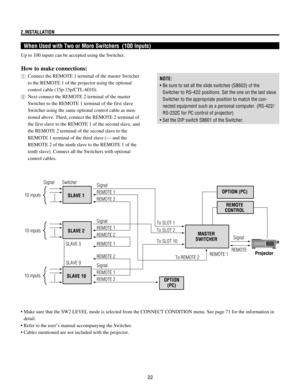

When Used with Two or More Switchers  (100 Inputs)
Up to 100 inputs can be accepted using the Switcher.
How to make connections:
1Connect the REMOTE 1 terminal of the master Switcher
to the REMOTE 1 of the projector using the optional
control cable (15p-15p/CTL-6010).
2Next connect the REMOTE 2 terminal of the master
Switcher to the REMOTE 1 terminal of the first slave
Switcher using the same optional control cable as men-
tioned above. Third, connect the REMOTE 2 terminal of
the first...

232.INSTALLATION

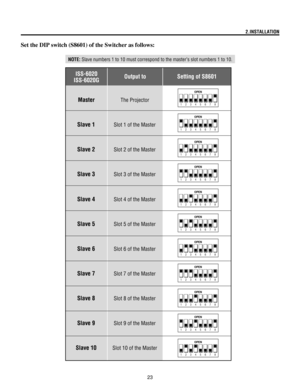

Set the DIP switch (S8601) of the Switcher as follows:
The Projector
Slot 1 of the Master
Slot 2 of the Master
Slot 3 of the Master
Slot 4 of the Master
Slot 5 of the Master
Slot 6 of the Master
Slot 7 of the Master
Slot 8 of the Master
Slot 9 of the Master
Slot 10 of the MasterMaster
Slave 1
Slave 2
Slave 3
Slave 4
Slave 5
Slave 6
Slave 7
Slave 8
Slave 9
Slave 1012345678 OPEN
12345678 OPEN
12345678 OPEN
12345678 OPEN
12345678 OPEN
12345678 OPEN
12345678 OPEN
12345678 OPEN
12345678 OPEN...

24
2.INSTALLATION

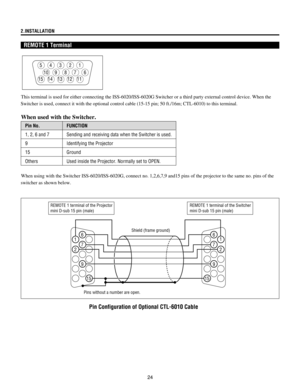

REMOTE 1 Terminal
This terminal is used for either connecting the ISS-6020/ISS-6020G Switcher or a third party external control device. When the
Switcher is used, connect it with the optional control cable (15-15 pin; 50 ft./16m; CTL-6010) to this terminal.
When used with the Switcher.
Pin No. FUNCTION
1, 2, 6 and 7 Sending and receiving data when the Switcher is used.
9 Identifying the Projector
15 Ground
Others Used inside the Projector. Normally set to OPEN.
When using with the...

25
2.INSTALLATION

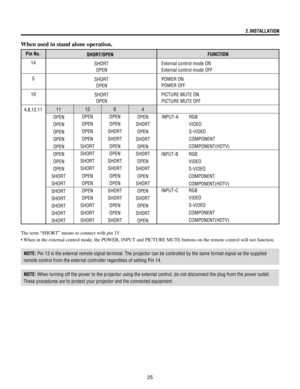

When used in stand alone operation.
Pin No.
14
5
10
4,8,12,11SHORT/OPEN
SHORT
OPEN
SHORT
OPEN
SHORT
OPENFUNCTION
External control mode ON
External control mode OFF
POWER ON
POWER OFF
PICTURE MUTE ON
PICTURE MUTE OFF
The term ÒSHORTÓ means to connect with pin 15
¥ When in the external control mode, the POWER, INPUT and PICTURE MUTE buttons on the remote control will not function.
NOTE: Pin 13 is the external remote signal terminal. The projector can be controlled by the same format...

26
123456
123456
123456
123456
123456
123456 3.OPERATION
This section describes how to select a computer or video source and how to adjust the picture and sound,
register a new signal and other settings and adjustments for set-up
General Controls
Before you turn on your MultiSync Hivid 6500 Projector ensure that the computer or video source is turned
on and that your lens cap is removed.
1. Turn On The Projector
The breaker switch and the main power switch are on the back panel of the MultiSync Hivid...

27

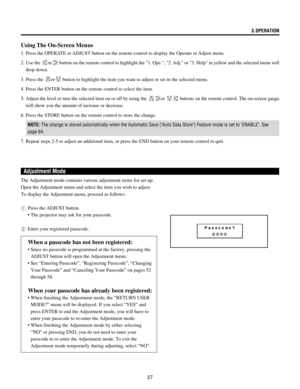

3.OPERATION
Using The On-Screen Menus
1. Press the OPERATE or ADJUST button on the remote control to display the Operate or Adjust menu.
2. Use the
or button on the remote control to highlight the 1. Ope., 2. Adj. or 3. Help in yellow and the selected menu will
drop down.
3. Press the
or button to highlight the item you want to adjust or set in the selected menu.
4. Press the ENTER button on the remote control to select the item.
5. Adjust the level or turn the selected item on or off by using the...

28

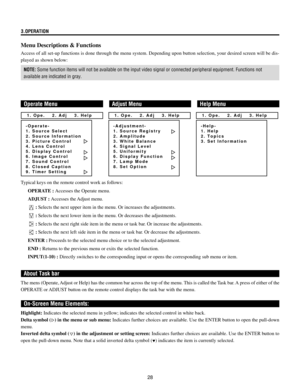

3.OPERATION
Menu Descriptions & Functions
Access of all set-up functions is done through the menu system. Depending upon button selection, your desired screen will be dis-
played as shown below:
NOTE: Some function items will not be available on the input video signal or connected peripheral equipment. Functions not
available are indicated in gray.
Operate MenuAdjust MenuHelp Menu
About Task bar
The mens (Operate, Adjust or Help) has the common bar across the top of the menu. This is called the Task...

293.OPERATION
You have two options to store projector settings in the memory: auto-
matically and manually.
* The Automatic Save Feature mode has been set to DISABLE by
factory. For information on setting, see Automatic Auto Data Store
on page 64.
nWhen the Automatic Save Feature mode is set to ENABLE, pro-
jector settings will be stored in the projector s memory automati-
cally.
Settings are stored automatically when any one of the following
procedures is performed:
 ¥ One input is switched to another....

30
3.OPERATION

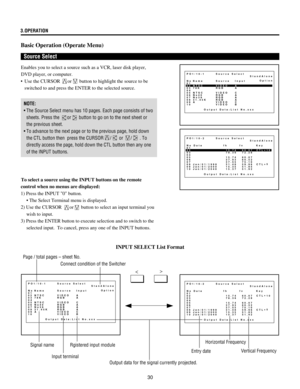

Basic Operation (Operate Menu)
Source Select
Enables you to select a source such as a VCR, laser disk player,
DVD player, or computer.
¥ Use the CURSOR
or button to highlight the source to be
switched to and press the ENTER to the selected source.
NOTE:
¥ The Source Select menu has 10 pages. Each page consists of two
sheets. Press the
or button to go on to the next sheet or
the previous sheet.
¥ To advance to the next page or to the previous page, hold down
the CTL button then  press the...
