313.OPERATION

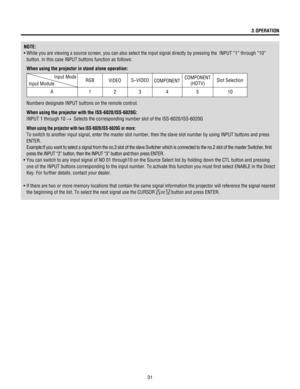

NOTE:
¥ While you are viewing a source screen, you can also select the input signal directly by pressing the  INPUT Ò1Ó through Ò10Ó
button. In this case INPUT buttons function as follows:
When using the projector in stand alone operation:
Numbers designate INPUT buttons on the remote control.
When using the projector with the ISS-6020/ISS-6020G:
INPUT 1 through 10 ®Selects the corresponding number slot of the ISS-6020/ISS-6020G
When using the projector with two ISS-6020/ISS-6020G or more:...

32
3.OPERATION
Source Information
Provides and changes information for the parameters of your current
projected source.
NOTE: For other registered signals, change their parameters on the
Source Registry menu.
The menu items you can display, change or specify are as follows:
Source Name --------------- Changes a user name that has previously
been entered.
Direct Key ------------------ Assigns settings of source to each INPUT
button (1-10) with CTL.
Input Slot ------------------- Selects an input terminal...

333.OPERATION
The following items can be set:
n Source Name
To change the source name or input a new source name by
selecting one character at a time with the INPUT buttons 1
through 10 and by moving the cursor with the CURSOR button.
Only after completely finishing the selection of the characters,
press ENTER.
¥ If you have made an error, use the CURSOR button and reenter
the correct letter or number.
To delete one character, move the highlight to the character to be
deleted and then press the NORMAL...

34
3.OPERATION
You can select the input terminal for the registered signal. This
feature is useful when you need to change the input terminal due
to adding optional equipment.
NOTE: This setting cannot be done to the current projected
signal.
When used in the stand alone operation:
Use the CURSOR
or button to select an input slot from
three slots: INPUT A, INPUT B, and INPUT C, and press
ENTER.
Items to select
¥ INPUT A .............. Standard installed terminal
¥ INPUT B .............. Optional board...

35
3.OPERATION
This function is used to select the detection method of the sync
signal for an RGB signal.
Use the CURSOR
or button to select AUTO, G-SYNC,
or TRI-SYNC and press ENTER.
¥ When AUTO is selected, the sync type will be displayed.
¥ Select AUTO in normal operation.
On-screen display
¥ AUTO --------- Detects automatically a composite or HV
separate sync signal.
¥ G-SYNC ------ Selects sync on green signal.
¥ TRI-SYNC ---- Selects a tri-sync signal (HDTV signal).
n Sync System
n Sync...

36 3.OPERATION
n CTI(Color Transient Improvement) Control
This functions is used to turn this feature on so you can make the
color sharper.
Use the CURSOR
or button to select either On or Off and
press the ENTER button.
n Noise Reduction
This function is used to turn this feature on so video noise can be
reduced.
Use the CURSOR
or button to select either On or Off and
press the ENTER button.
n Source Select Counter
This is used to reset the number of times a signal is selected for
display.
When Source...

37
3.OPERATION
Provides access to controls for your image such as brightness,
contrast, color, sharpness, hue, color temperature, gamma correction.
NOTE: Color, tint, and sharpness are available for an RGB source
only.
1. Use the CURSOR
, , or button to select the item you
want to adjust and press the ENTER button.
Items to select
¥ Brightness ------------ Adjusts the overall image and background
screen brightness.
¥ Contrast --------------- Adjusts the image brightness in relation to
the background.
¥...

38 3.OPERATION
Display Control
Display Control
- Pixel Clock -
1024
Display Control
- Pixel Phase -
32
Display Control
- Zoom -
0
Items to select
¥ Pixel Clock -------- Adjusts the clock frequencies to remove moire.
¥ Pixel Phase ------- Adjusts the clock phase to reduce video noise.
¥ Zoom/Pan --------- Magnifies or reduces the image. You also can
pans the display  when pressin with CTL. Enables you to fine tune the computer image or to remove any
vertical banding that might appear by adjusting the...

393.OPERATION
Image Control
n Image Position
Pressing the CURSOR or moves the position of the picture
left or right.
Pressing the CURSOR
or moves the position of the picture
up or down.
n Blanking
Press any one of the CURSOR buttons while press and hold CTL
to select the position you want to adjust:
 CTL+
----------- Top
 CTL+
----------- Right
 CTL+
----------- Left
 CTL+
----------- Bottom
Top and right -------- Pressing
 or  increases the adjustment
values.
Pressing
 or  decreases the...

40 3.OPERATION
Sound Control (only when used with the ISS-6020/ISS-6020G Switcher)
Enables you to set several closed caption modes for text to be superim-
posed on the projection screen.
Use the CURSOR
 or  button to select the desired mode and
press the ENTER button.
Items to select
¥ Caption 1-4 ------- Text is superimposed.
¥ Text 1-4 ----------- Text is displayed in full screen.
¥Ê Off ----------------- Exits the selected Closed Caption mode.
NOTE:
¥Ê The Closed Caption feature work with an NTSC...
