NEC Xt4100 Projector User Manual

E – 24
Using The Menus
1. Press the MENU button on the remote control to display the menu.
2. Use the
 or  button on the remote control to select the sub menu.
3. The right-oriented delta symbol indicates further choices are avail-
able. Press the
 button to highlight the item you want to adjust or set
in the selected menu.
4. Press the
 or  button on the  remote control to select the item.
5. Press the ENTER button on the remote control to display the adjust-
ment screen or dialog box.
6. Adjust...

E – 25
A List of Direct Key Combinations
CTL+  INPUT  (1-10) Switches to any selected signal found in the Entry List.
To enable this combination, you must first assign specific remote keys for direct input
selection in the Entry Edit window.
CTL+  ENTER (While  displaying  Entry  list) Displays the Entry Edit Command window.
CTL+ MUTE PICTURE/SHUTTER Blocks all Projector Light Output.
CTL+CANCEL Returns  to  the previous menu without closing the slidebar or dialog.
CTL+  UNDO Clears all menus or...

E – 26
Menu Tree

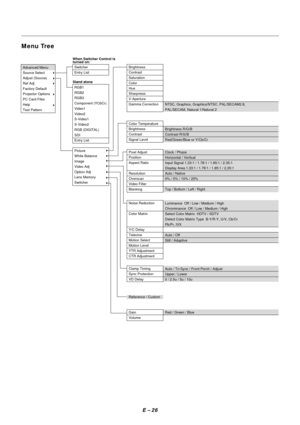

NTSC, Graphics, Graphics/NTSC, PAL/SECAM2.8,
PAL/SECAM, Natural 1/Natural 2
Advanced Menu
Source Select
Adjust (Source)
Ref Adj
Factory Default
Projector Options
PC Card Files
Help
Test Pattern
RGB1
RGB2
RGB3
Component (YCbCr)
Video1
Video2
S-Video1
S-Video2
RGB (DIGITAL)
SDI
Entry List
Switcher
Entry List When Switcher Control is
turned on:
Stand aloneBrightness
Contrast
Saturation
Color
Hue
Sharpness
V-Aperture
Gamma Correction
Color Temperature
Brightness
Contrast
Signal Level
Pixel...

E – 27

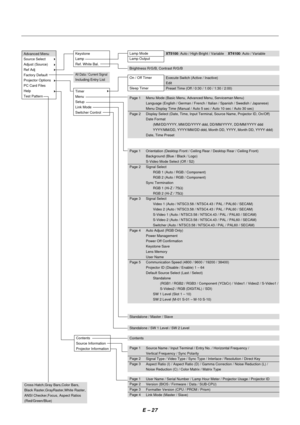

XT5100: Auto / High-Bright / Variable    XT4100: Auto / VariableAdvanced Menu
Source Select
Adjust (Source)
Ref Adj
Factory Default
Projector Options
PC Card Files
Help
Test Pattern
All Data / Current Signal
Including Entry List Keystone
Lamp
Ref. White Bal.
Contents
Source Information
Projector Information
Lamp Mode
Lamp Output
Brightness R/G/B, Contrast R/G/B
Standalone / Master / Slave
Standalone / SW 1 Level / SW 2 Level
Contents
Cross Hatch,Gray Bars,Color Bars,
Black Raster,GrayRaster,White...

E – 28
Menu windows or dialog boxes typically have the following elements:
Title bar: Indicates the menu title.
Highlight: Indicates the selected menu or item.
Solid triangle: Indicates further choices are available. A highlighted triangle indicates the item is active.
Tab: Indicates a group of features in a dialog box. Selecting on any tab brings its page to the front.
Radio button: Use this round button to select an option in a dialog box.
Check box: Place a checkmark in the square box to turn the...

E – 29
Menu Descriptions & Functions
Source Select
Use the SELECT
 or  button to select the master slot number from
1 to 10 and then the slave slot number from 1 to 10 on the Select Slot
menu. Select OK and press ENTER.
To close the window without storing the settings, select Cancel and
press ENTER.
Entry List
Displays the list of the entry signals. Use the
 buttons on your re-
mote control or the projector cabinet to select the signal and press the
ENTER button on the remote control or the projector...

E – 30
Select List and press ENTER to display the direct Key assignment
list.
Select OK and press ENTER to close the window.
To close the List window, press CANCEL on the remote.
Adjust (Source)
This option corrects gamma. Select the appropriate item.
NTSC .......................... Setting for NTSC signals
Graphics ..................... Setting for Computer Graphics
Graphics/NTSC ........... Setting for both Computer Graphics and NTSC sig-
nals (Default value)
PAL/SECAM 2.8 .......... Setting...

E – 31
Horizontal/Vertical Position (when Auto Adjust is off):
Adjusts the image location from left to right.
This adjustment is made automatically when the Auto Adjust is turned
on.
Aspect Ratio (not available for SXGA) :
You can select the aspect ratio for input signal and display area re-
spectively.
Select the appropriate aspect ratio using the SELECT

 ,  ,
, or
 button.
NOTE: When Resolution is set to Native, this feature is not available, andthe stored settings and adjustments are invalid....

E – 32
Color Matrix
First, select an appropriate color matrix for your input signal, either
HDTV or SDTV. Then select an appropriate matrix type from B-Y/R-
Y, U/V, Cb/Cr, Pb/Pr or IVX.
NOTE: The Color Matrix feature is available for component video signal only.
Y/C Delay (not available for RGB)
Adjusts Y/C delay level.
Telecine
Use 3:2 pull down correction to eliminate jitter and artifacts in video.
Auto ............. For film source such as a DVD player
Off ................ For signals other than film...

E – 33
Switcher Gain
This feature adjusts the input level of the signal. This must be done
to each color:R, G, and B.
Volume
This feature adjusts the volume of the audio output. Adjust the sound
corresponding to the slot.
Ref Adj
Keystone
This feature corrects the keystone (trapezoidal) distortion to make the
top of the screen longer or shorter to be the same as the bottom.
Use the

 or  buttons on the slide bar to correct the keystone (trap-
ezoidal) distortion.
Keystone distortion
Normal
NOTE:
1)...
