Panasonic 55"65" Class 1080p Plasma Hdtv Tc P55vt30 Owners Manual

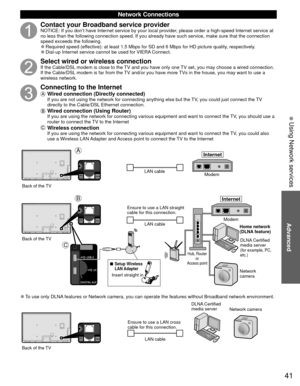

41
Advanced
 Using Network services
 Network Connections
Contact your Broadband service providerNOTICE: If you don’t have Internet service by your local provider, please order a high-speed Internet service at
no less than the following connection speed. If you already have such se\
rvice, make sure that the connection
speed exceeds the following.

●Required speed (effective): at least 1.5 Mbps for SD and 6 Mbps for HD picture quality, respectively.
●Dial-up Internet service cannot be used for VIERA...

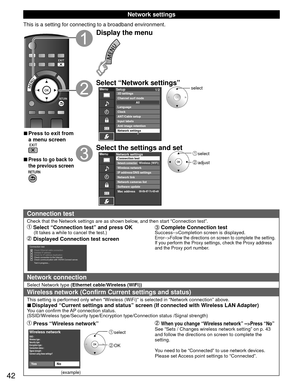

42
 Network settings
This is a setting for connecting to a broadband environment.

■Press to exit from
a menu screen

■Press to go back to
the previous screen
Display the menu
Select “Network settings”MenuSetup
1/2
ANT/Cable setupInput labels
Anti image retention
Network settings Channel surf mode 3D settings
Language
ClockAll
select
Select the settings and set select
 adjust
MenuNetwork settings
Network cameras list
Software update
Mac address Connection test
Network connectionWireless network
IP...

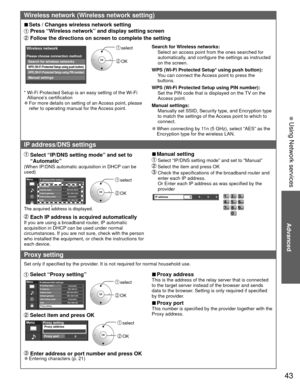

43
Advanced
 Using Network services
Wireless network (Wireless network setting)

■Sets / Changes wireless network setting
 Press “Wireless network” and display setting screen
 Follow the directions on screen to complete the setting
Wireless network
WPS (Wi-Fi Protected Setup using push button)
Please choose connection method:
WPS (Wi-Fi Protected Setup using PIN number)
Search for wireless networks
Manual settings
 select
 OK
*  Wi-Fi Protected Setup is an easy setting of the Wi-Fi
Alliance’s...

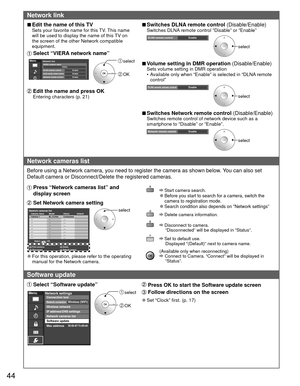

44
Network link

■Edit the name of this TVSets your favorite name for this TV. This name
will be used to display the name of this TV on
the screen of the other Network compatible
equipment.
 Select “VIERA network name”
MenuNetwork linkVIERA network nameDLNA remote controlEnable VIERA
DLNA remote volume controlEnable Network remote controlEnable
 select
 OK
  Edit the name and press OKEntering characters (p. 21)

■Switches DLNA remote control (Disable/Enable)Switches DLNA remote control “Disable” or...

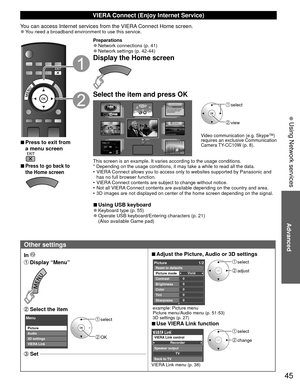

45
Advanced
 Using Network services
Other settings
In
 Display “Menu”
 Select the item
 select
 OK
Menu
Audio
3D settings
VIERA Link
 Set

■Adjust the Picture, Audio or 3D settings
 select
 adjust
0
0
0
0
0Vivid
Picture 1/2
Brightness
Color
Tint
Sharpness Picture mode
Contrast Reset to defaults
example: Picture menu
Picture menu/Audio menu (p. 51-53)
3D settings (p. 27)

■Use VIERA Link function
 select
 changeRecorder
TV
VIERA Link control
Speaker output
Back to TV
VIERA Link menu (p. 38)...

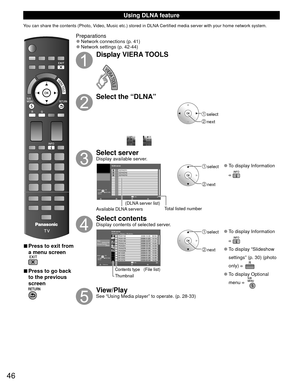

46
Using  DLNA feature
You can share the contents (Photo, Video, Music etc.) stored in DLNA Certified media server with your home network system.

■Press to exit from
a menu screen

■Press to go back
to the previous
screen
Preparations
●Network connections (p. 41)
●Network settings (p. 42-44)
Display VIERA TOOLS
Select the “DLNA”
 select
 next
Select serverDisplay available server.
DLNA server

RETURN
SERVER1
A5g SERVER2
SERVER3
3Info
OK
Select
SUB
MENU
Available DLNA servers Total listed...

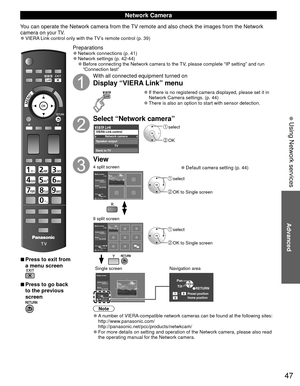

47
Advanced
 Using Network services

■Press to exit from
a menu screen

■Press to go back
to the previous
screen
Preparations
●Network connections (p. 41)
●Network settings (p. 42-44)
●Before connecting the Network camera to the TV, please complete “IP setting” and run
“Connection test”
With all connected equipment turned on
Display “VIERA Link” menu

●If there is no registered camera displayed, please set it in
Network Camera settings. (p. 44)

●There is also an option to start with sensor...

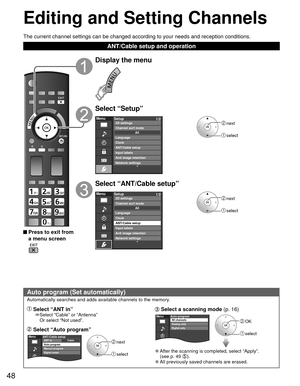

48
Editing and  Setting Channels
 Auto program (Set automatically)
Automatically searches and adds available channels to the memory.
 Select “ANT in”    Select “Cable” or “Antenna”
Or select “Not used”.
 Select “Auto program”
 next
 select
MenuCableANT/Cable setupANT in
Auto program
Manual program
Signal meter
 Select a  scanning mode
(p. 16)
 OK
 select
MenuAuto programAll channels
Analog only
Digital only

●After the scanning is completed, select “Apply”.
(see p. 49 ).
●All previously saved...

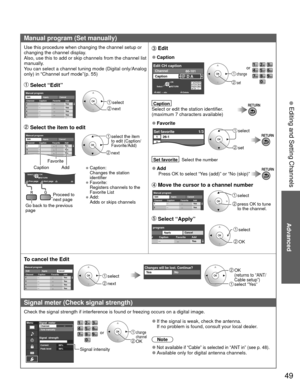

49
Advanced
 Editing and Setting Channels
Manual program ( Set manually)
Use this procedure when changing the channel setup or
changing the channel display.
Also, use this to add or skip channels from the channel list
manually.
You can select a channel tuning mode (Digital only/Analog
only) in “Channel surf mode”(p. 55)
 Select “Edit”
Manual programEditCancel
Apply
Caption Favorite Add
2 ...
...
Ye s
3 ...
...
Ye s
4 ...
...
Ye s
5 ...
...
Ye s
6Y
Channel select
 next
 Select the item to edit
Select...

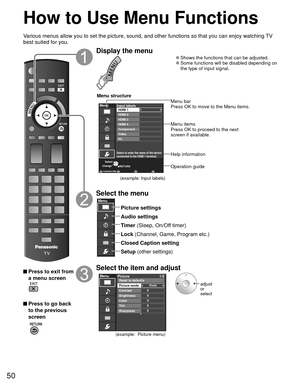

50
 How to Use Menu Functions
Various menus allow you to set the picture, sound, and other functions so\
 that you can enjoy watching TV
best suited for you.
 Press to exit from a menu screen
 Press to go back to the previous
screen

Display the menu

●Shows the functions that can be adjusted.
●Some functions will be disabled depending on
the type of input signal.
RETURN
Menu
Select or enter the name of the device
connected to the HDMI 1 terminal.
Customize label
Input labels
HDMI 3
HDMI 4
PC...
