Panasonic 55"65" Class 1080p Plasma Hdtv Tc P55vt30 Owners Manual
Here you can view all the pages of manual Panasonic 55"65" Class 1080p Plasma Hdtv Tc P55vt30 Owners Manual . The Panasonic manuals for Television are available online for free. You can easily download all the documents as PDF.

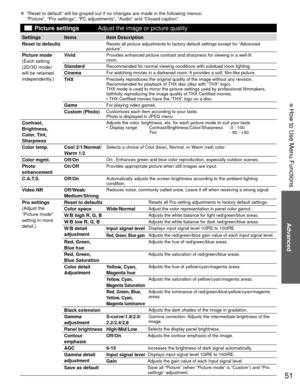

Page 51
![Page 51
51
Advanced
How to Use Menu Functions
● “Reset to default” will be grayed out if no changes are made in t\
he following menus:
“Picture”, “Pro settings”, “PC adjustments”, “Audi\
o” and “Closed caption”.
Picture settings
Adjust the image or picture quality
Settings Items Item Description
Reset to defaults
Resets all picture adjustments to factory default settings except for “\
Advanced
picture”.
Picture mode
(Each setting
(2D/3D mode)
will be retained
independently.) VividProvides enhanced...](http://img.usermanuals.tech/thumb/58/71419/w300_tc-p55vt30_en_om_d-50.png "Page 51
51
Advanced
How to Use Menu Functions
● “Reset to default” will be grayed out if no changes are made in t\
he following menus:
“Picture”, “Pro settings”, “PC adjustments”, “Audi\
o” and “Closed caption”.
Picture settings
Adjust the image or picture quality
Settings Items Item Description
Reset to defaults
Resets all picture adjustments to factory default settings except for “\
Advanced
picture”.
Picture mode
(Each setting
(2D/3D mode)
will be retained
independently.) VividProvides enhanced...")
51 Advanced How to Use Menu Functions ● “Reset to default” will be grayed out if no changes are made in t\ he following menus: “Picture”, “Pro settings”, “PC adjustments”, “Audi\ o” and “Closed caption”. Picture settings Adjust the image or picture quality Settings Items Item Description Reset to defaults Resets all picture adjustments to factory default settings except for “\ Advanced picture”. Picture mode (Each setting (2D/3D mode) will be retained independently.) VividProvides enhanced...

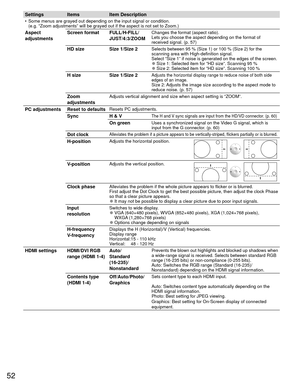

Page 52
![Page 52
52
Settings ItemsItem Description
• Some menus are grayed out depending on the input signal or condition.
(e.g. “Zoom adjustments” will be grayed out if the aspect is not \
set to Zoom.)
Aspect
adjustments Screen format FULL/H-FILL/
JUST/4:3/ZOOMChanges the format (aspect ratio).
Lets you choose the aspect depending on the format of
received signal. (p. 57)
HD sizeSize 1/Size 2Selects between 95 % (Size 1) or 100 % (Size 2) for the
scanning area with High-definition signal.
Select “Size 1” if noise...](http://img.usermanuals.tech/thumb/58/71419/w300_tc-p55vt30_en_om_d-51.png "Page 52
52
Settings ItemsItem Description
• Some menus are grayed out depending on the input signal or condition.
(e.g. “Zoom adjustments” will be grayed out if the aspect is not \
set to Zoom.)
Aspect
adjustments Screen format FULL/H-FILL/
JUST/4:3/ZOOMChanges the format (aspect ratio).
Lets you choose the aspect depending on the format of
received signal. (p. 57)
HD sizeSize 1/Size 2Selects between 95 % (Size 1) or 100 % (Size 2) for the
scanning area with High-definition signal.
Select “Size 1” if noise...")
52 Settings ItemsItem Description • Some menus are grayed out depending on the input signal or condition. (e.g. “Zoom adjustments” will be grayed out if the aspect is not \ set to Zoom.) Aspect adjustments Screen format FULL/H-FILL/ JUST/4:3/ZOOMChanges the format (aspect ratio). Lets you choose the aspect depending on the format of received signal. (p. 57) HD sizeSize 1/Size 2Selects between 95 % (Size 1) or 100 % (Size 2) for the scanning area with High-definition signal. Select “Size 1” if noise...

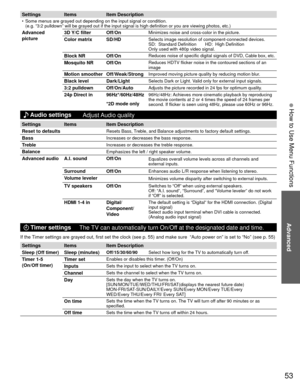

Page 53
![Page 53
53
Advanced
How to Use Menu Functions
Settings ItemsItem Description
• Some menus are grayed out depending on the input signal or condition.
(e.g. “3:2 pulldown” will be grayed out if the input signal is hi\
gh definition or you are viewing photos, etc.)
Advanced
picture 3D Y/C filter Off/OnMinimizes noise and cross-color in the picture.
Color matrix SD/HDSelects image resolution of component-connected devices.
SD: Standard Definition HD: High Definition
Only used with 480p video...](http://img.usermanuals.tech/thumb/58/71419/w300_tc-p55vt30_en_om_d-52.png "Page 53
53
Advanced
How to Use Menu Functions
Settings ItemsItem Description
• Some menus are grayed out depending on the input signal or condition.
(e.g. “3:2 pulldown” will be grayed out if the input signal is hi\
gh definition or you are viewing photos, etc.)
Advanced
picture 3D Y/C filter Off/OnMinimizes noise and cross-color in the picture.
Color matrix SD/HDSelects image resolution of component-connected devices.
SD: Standard Definition HD: High Definition
Only used with 480p video...")
53 Advanced How to Use Menu Functions Settings ItemsItem Description • Some menus are grayed out depending on the input signal or condition. (e.g. “3:2 pulldown” will be grayed out if the input signal is hi\ gh definition or you are viewing photos, etc.) Advanced picture 3D Y/C filter Off/OnMinimizes noise and cross-color in the picture. Color matrix SD/HDSelects image resolution of component-connected devices. SD: Standard Definition HD: High Definition Only used with 480p video...

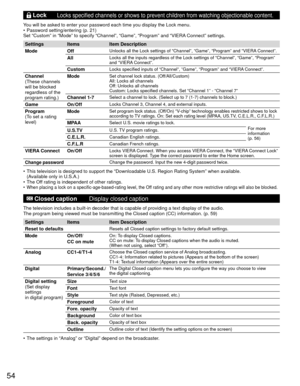

Page 54
![Page 54
54
LockLocks specified channels or shows to prevent children from watching obje\
ctionable content.
You will be asked to enter your password each time you display the Lock m\
enu.
• Password setting/entering (p. 21)
Set “Custom” in “Mode” to specify “Channel”, “Game”\
, “Program” and “VIERA Connect” settings.
Settings Items
Item Description
Mode Off
Unlocks all the Lock settings of “Channel”, “Game”, “Prog\
ram” and “VIERA Connect”.
AllLocks all the inputs regardless of the Lock settings of...](http://img.usermanuals.tech/thumb/58/71419/w300_tc-p55vt30_en_om_d-53.png "Page 54
54
LockLocks specified channels or shows to prevent children from watching obje\
ctionable content.
You will be asked to enter your password each time you display the Lock m\
enu.
• Password setting/entering (p. 21)
Set “Custom” in “Mode” to specify “Channel”, “Game”\
, “Program” and “VIERA Connect” settings.
Settings Items
Item Description
Mode Off
Unlocks all the Lock settings of “Channel”, “Game”, “Prog\
ram” and “VIERA Connect”.
AllLocks all the inputs regardless of the Lock settings of...")
54 LockLocks specified channels or shows to prevent children from watching obje\ ctionable content. You will be asked to enter your password each time you display the Lock m\ enu. • Password setting/entering (p. 21) Set “Custom” in “Mode” to specify “Channel”, “Game”\ , “Program” and “VIERA Connect” settings. Settings Items Item Description Mode Off Unlocks all the Lock settings of “Channel”, “Game”, “Prog\ ram” and “VIERA Connect”. AllLocks all the inputs regardless of the Lock settings of...

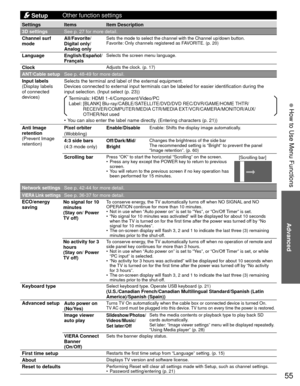

Page 55
55 Advanced How to Use Menu Functions Setup Other function settings Settings Items Item Description 3D settings See p. 27 for more detail. Channel surf mode All/Favorite/ Digital only/ Analog only Sets the mode to select the channel with the Channel up/down button. Favorite: Only channels registered as FAVORITE. (p. 20) Language English/Español/ FrançaisSelects the screen menu language. ClockAdjusts the clock. (p. 17) ANT/Cable setupSee p. 48-49 for more detail. Input labels (Display labels of...

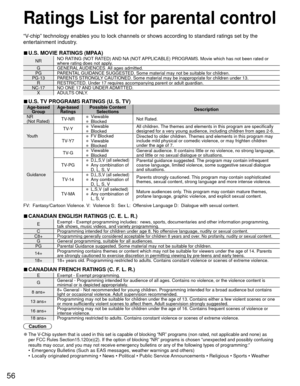

Page 56
![Page 56
56
Ratings List for parental control
“V-chip” technology enables you to lock channels or shows according to \
standard ratings set by the
entertainment industry.
■U.S. MOVIE RATINGS (MPAA)
NR NO RATING (NOT RATED) AND NA (NOT APPLICABLE) PROGRAMS. Movie which has not been rated or
where rating does not apply.
G GENERAL AUDIENCES. All ages admitted.
PG PARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for children.
PG-13 PARENTS STRONGLY CAUTIONED. Some material may be inappropriate...](http://img.usermanuals.tech/thumb/58/71419/w300_tc-p55vt30_en_om_d-55.png "Page 56
56
Ratings List for parental control
“V-chip” technology enables you to lock channels or shows according to \
standard ratings set by the
entertainment industry.
■U.S. MOVIE RATINGS (MPAA)
NR NO RATING (NOT RATED) AND NA (NOT APPLICABLE) PROGRAMS. Movie which has not been rated or
where rating does not apply.
G GENERAL AUDIENCES. All ages admitted.
PG PARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for children.
PG-13 PARENTS STRONGLY CAUTIONED. Some material may be inappropriate...")
56 Ratings List for parental control “V-chip” technology enables you to lock channels or shows according to \ standard ratings set by the entertainment industry. ■U.S. MOVIE RATINGS (MPAA) NR NO RATING (NOT RATED) AND NA (NOT APPLICABLE) PROGRAMS. Movie which has not been rated or where rating does not apply. G GENERAL AUDIENCES. All ages admitted. PG PARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for children. PG-13 PARENTS STRONGLY CAUTIONED. Some material may be inappropriate...

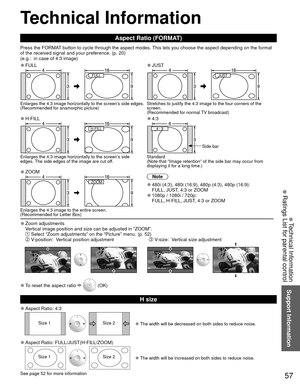

Page 57
57 Support Information Technical Information Aspect Ratio (FORMAT) Press the FORMAT button to cycle through the aspect modes. This lets you choose the aspect depending on the format of the received signal and your preference. (p. 20) (e.g.: in case of 4:3 image) ●FULL ●JUST FULL JUST Enlarges the 4:3 image horizontally to the screen’s side edges. (Recommended for anamorphic picture) Stretches to justify the 4:3 image to the four corners of the screen. (Recommended for normal TV broadcast)...

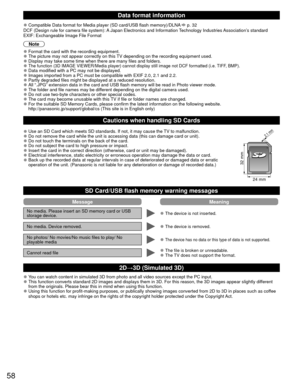

Page 58
![Page 58
58
Data format information
●Compatible Data format for Media player (SD card/USB flash memory)/DLN\
A p. 32
DCF (Design rule for camera file system): A Japan Electronics and Information Technology Industries Association’s standard
EXIF: Exchangeable Image File Format
Note
●Format the card with the recording equipment.
●The picture may not appear correctly on this TV depending on the recording equipment used.
●Display may take some time when there are many files and folders.
●The function (3D...](http://img.usermanuals.tech/thumb/58/71419/w300_tc-p55vt30_en_om_d-57.png "Page 58
58
Data format information
●Compatible Data format for Media player (SD card/USB flash memory)/DLN\
A p. 32
DCF (Design rule for camera file system): A Japan Electronics and Information Technology Industries Association’s standard
EXIF: Exchangeable Image File Format
Note
●Format the card with the recording equipment.
●The picture may not appear correctly on this TV depending on the recording equipment used.
●Display may take some time when there are many files and folders.
●The function (3D...")
58 Data format information ●Compatible Data format for Media player (SD card/USB flash memory)/DLN\ A p. 32 DCF (Design rule for camera file system): A Japan Electronics and Information Technology Industries Association’s standard EXIF: Exchangeable Image File Format Note ●Format the card with the recording equipment. ●The picture may not appear correctly on this TV depending on the recording equipment used. ●Display may take some time when there are many files and folders. ●The function (3D...

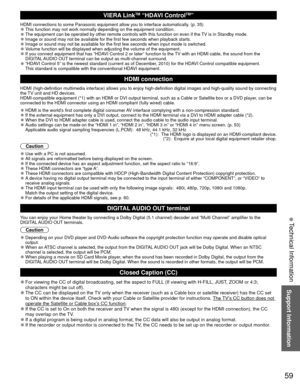

Page 59
![Page 59
59
Support Information
VIERA LinkTM “HDAVI ControlTM”
HDMI connections to some Panasonic equipment allow you to interface auto\
matically. (p. 35)
●This function may not work normally depending on the equipment condition\
.
●The equipment can be operated by other remote controls with this functio\
n on even if the TV is in Standby mode.
●Image or sound may not be available for the first few seconds when playb\
ack starts.
●Image or sound may not be available for the first few seconds when input\...](http://img.usermanuals.tech/thumb/58/71419/w300_tc-p55vt30_en_om_d-58.png "Page 59
59
Support Information
VIERA LinkTM “HDAVI ControlTM”
HDMI connections to some Panasonic equipment allow you to interface auto\
matically. (p. 35)
●This function may not work normally depending on the equipment condition\
.
●The equipment can be operated by other remote controls with this functio\
n on even if the TV is in Standby mode.
●Image or sound may not be available for the first few seconds when playb\
ack starts.
●Image or sound may not be available for the first few seconds when input\...")
59 Support Information VIERA LinkTM “HDAVI ControlTM” HDMI connections to some Panasonic equipment allow you to interface auto\ matically. (p. 35) ●This function may not work normally depending on the equipment condition\ . ●The equipment can be operated by other remote controls with this functio\ n on even if the TV is in Standby mode. ●Image or sound may not be available for the first few seconds when playb\ ack starts. ●Image or sound may not be available for the first few seconds when input\...

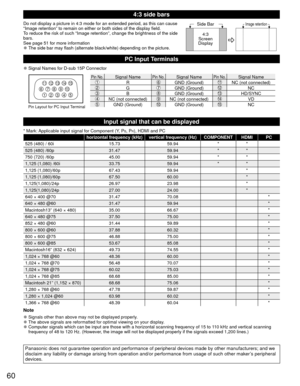

Page 60
![Page 60
60
4:3 side bars
Do not display a picture in 4:3 mode for an extended period, as this can\
cause
“Image retention” to remain on either or both sides of the display\
field.
To reduce the risk of such “Image retention”, change the brightness\
of the side
bars.
See page 51 for more information
●The side bar may flash (alternate black/white) depending on the pictur\
e.
Side Bar
4:3
Screen
DisplayImage retention
PC Input Terminals
●Signal Names for D-sub 15P Connector
1
678
3 9
45 10 15 14 13 12...](http://img.usermanuals.tech/thumb/58/71419/w300_tc-p55vt30_en_om_d-59.png "Page 60
60
4:3 side bars
Do not display a picture in 4:3 mode for an extended period, as this can\
cause
“Image retention” to remain on either or both sides of the display\
field.
To reduce the risk of such “Image retention”, change the brightness\
of the side
bars.
See page 51 for more information
●The side bar may flash (alternate black/white) depending on the pictur\
e.
Side Bar
4:3
Screen
DisplayImage retention
PC Input Terminals
●Signal Names for D-sub 15P Connector
1
678
3 9
45 10 15 14 13 12...")
60 4:3 side bars Do not display a picture in 4:3 mode for an extended period, as this can\ cause “Image retention” to remain on either or both sides of the display\ field. To reduce the risk of such “Image retention”, change the brightness\ of the side bars. See page 51 for more information ●The side bar may flash (alternate black/white) depending on the pictur\ e. Side Bar 4:3 Screen DisplayImage retention PC Input Terminals ●Signal Names for D-sub 15P Connector 1 678 3 9 45 10 15 14 13 12...
