Panasonic Cf 29l3lgzbm Owners Manual

11
Getting Started
2Read the LIMITED USE LICENSE AGREEMENT. ( page 34)
Be sure to read the LIMITED USE LICENSE AGREEMENT before breaking the seal
on the computer’s packaging.
3Insert the battery pack.
1Unlock the cover by sliding the latch to the right.
First-time Operation
Read the steps below to help you learn what parts are included, and to gain an understanding of
some basic computer-related operations.
1Confirm the inclusion of all parts.
Make sure the parts shown in the figure have been supplied....

12
Getting Started
First-time Operation
6Turn your computer on.
Slide the power switch and hold it for approximately one second until the power indi-
cator turns on before releasing it.
Do not slide the power switch and hold it for more than four seconds; this will
cause the power to be turned off forcibly.
Do not slide the power switch repeatedly.
Once the computer is powered off, you must wait at least ten seconds before
powering it on again.
4Connect your computer to a power outlet.
Be sure the AC...

13
Getting Started
7Setup Windows.
Moving the cursor  or clicking buttons can be performed with the touch pad. ( page 19)
The touchscreen does not work properly during the Windows setup.
NOTE
Select settings for your region, then select [Next].
4Enter your name and organization and then select [Next].
5Enter your computer name and administrator password and then select [Next].
Do not press any keys or touch the touch pad until [Windows XP Professional
Setup] is displayed.
CAUTION
1At [Welcome to the...

14
Getting Started
This concludes the first-time use operation guidelines.

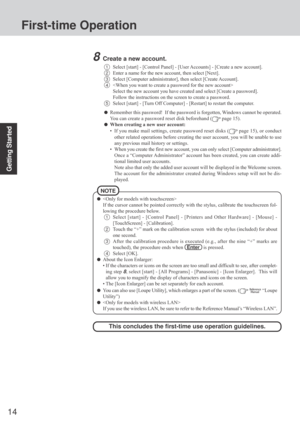

8Create a new account.

If the cursor cannot be pointed correctly with the stylus, calibrate the touchscreen fol-
lowing the procedure below.
1Select [start] - [Control Panel] - [Printers and Other Hardware] - [Mouse] -
[TouchScreen] - [Calibration].
2Touch the “+” mark on the calibration screen  with the stylus (included) for about
one second.
3After the calibration procedure is executed (e.g., after the nine “+” marks are...

15
Getting Started

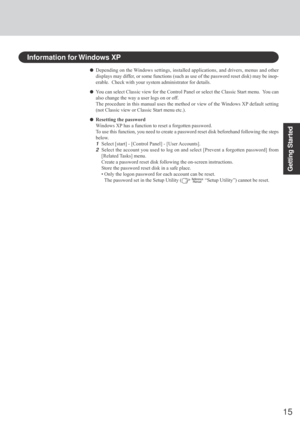

Information for Windows XP
Depending on the Windows settings, installed applications, and drivers, menus and other
displays may differ, or some functions (such as use of the password reset disk) may be inop-
erable.  Check with your system administrator for details.
You can select Classic view for the Control Panel or select the Classic Start menu.  You can
also change the way a user logs on or off.
The procedure in this manual uses the method or view of the Windows XP default setting...

16
Operation
1Open the display.

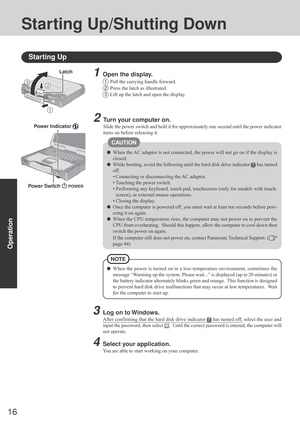

Starting Up/Shutting Down
Starting Up
2Turn your computer on.
Slide the power switch and hold it for approximately one second until the power indicator
turns on before releasing it.
When the AC adaptor is not connected, the power will not go on if the display is
closed.
While booting, avoid the following until the hard disk drive indicator  has turned
off.
• Connecting or disconnecting the AC adaptor.
• Touching the power switch.
• Performing any keyboard, touch pad,...

17
Operation

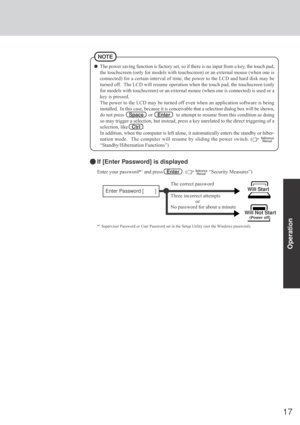

The power saving function is factory set, so if there is no input from a key, the touch pad,
the touchscreen (only for models with touchscreen) or an external mouse (when one is
connected) for a certain interval of time, the power to the LCD and hard disk may be
turned off.  The LCD will resume operation when the touch pad, the touchscreen (only
for models with touchscreen) or an external mouse (when one is connected) is used or a
key is pressed.
The power to the LCD may be turned off even...

18
Operation

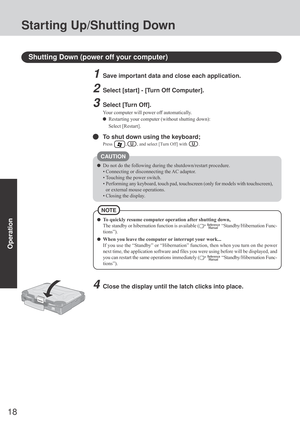

Shutting Down (power off your computer)
To quickly resume computer operation after shutting down,
The standby or hibernation function is available (
  “Standby/Hibernation Func-
tions”).
When you leave the computer or interrupt your work...
If you use the “Standby” or “Hibernation” function, then when you turn on the power
next time, the application software and files you were using before will be displayed, and
you can restart the same operations immediately (
  “Standby/Hibernation Func-...

19
Operation
Function

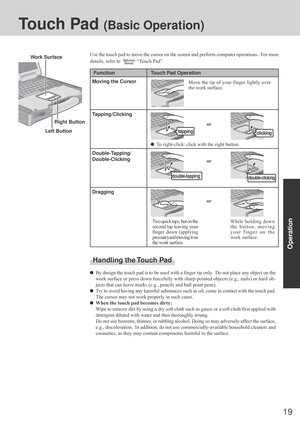

Touch Pad (Basic Operation)
Use the touch pad to move the cursor on the screen and perform computer operations.  For more
details, refer to
 “Touch Pad”.
By design the touch pad is to be used with a finger tip only.  Do not place any object on the
work surface or press down forcefully with sharp-pointed objects (e.g., nails) or hard ob-
jects that can leave marks (e.g., pencils and ball point pens).
Try to avoid having any harmful substances such as oil, come in contact with the...

20
Operation

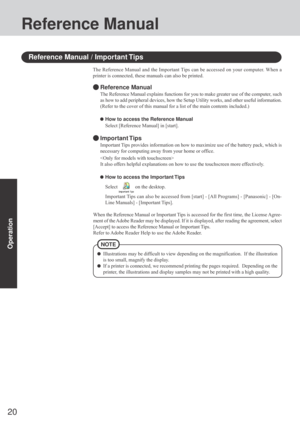

Reference Manual
Illustrations may be difficult to view depending on the magnification.  If the illustration
is too small, magnify the display.
If a printer is connected, we recommend printing the pages required.  Depending on the
printer, the illustrations and display samples may not be printed with a high quality.
NOTE
The Reference Manual and the Important Tips can be accessed on your computer. When a
printer is connected, these manuals can also be printed.
Reference Manual
The Reference...
