Panasonic Cf 29l3lgzbm Owners Manual

31
Troubleshooting

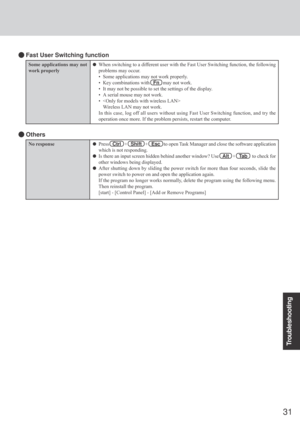

 Others
Press   Ctrl   +   Shift   +   Esc   to open Task Manager and close the software application
which is not responding.
Is there an input screen hidden behind another window? Use   Alt   +   Ta b    to check for
other windows being displayed.
After shutting down by sliding the power switch for more than four seconds, slide the
power switch to power on and open the application again.
If the program no longer works normally, delete the program using the following menu.
Then...

Troubleshooting
32
9Make a selection from the menu.
When [2] is selected, the hard disk backup function
cannot be enabled. When using the hard disk backup
function, select [1] to reinstall Windows to the hard
disk, and then divide the hard disk into partitions
when a backup area is created (
 page 36).
NOTE

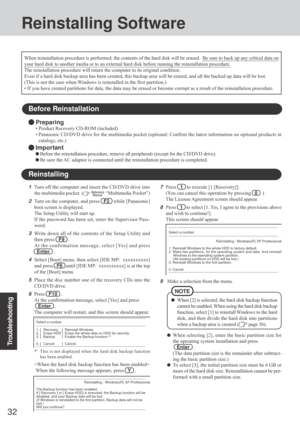

Reinstalling Software
Before Reinstallation
Preparing
• Product Recovery CD-ROM (included)
• Panasonic CD/DVD drive for the multimedia pocket (optional: Confirm the latest information on optional...

33
Troubleshooting

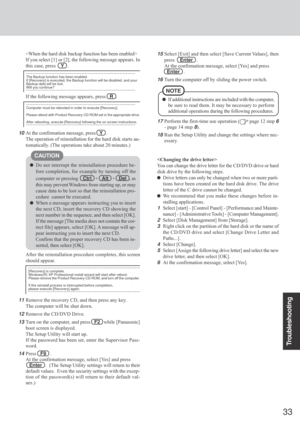

If you select [1] or [2], the following message appears. In
this case, press    Y   .
If the following message appears, press   R  .
---------------------------------------------------------------------The Backup function has been enabled.
If [Recovery] is executed, the Backup function will be disabled, and your
Backup data will be lost.
Will you continue?
---------------------------------------------------------------------...

34
Appendix

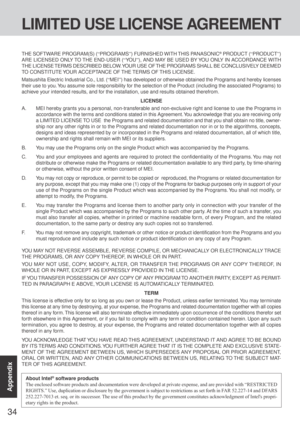

LIMITED USE LICENSE AGREEMENT
THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS PANASONIC® PRODUCT (“PRODUCT”)
ARE LICENSED ONLY TO THE END-USER (“YO U”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH
THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY DEEMED
TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.
Matsushita Electric Industrial Co., Ltd. (“MEI”) has developed or otherwise obtained the Programs and hereby licenses
their use to you. You...

35
Appendix
Contrat de licence d’usage limité
Le(s) logiciel(s) (les “Logiciels”) fournis avec ce produit Panasonic® (le “Produit”) sont exclusivement concédés en li-
cence à l’utilisateur ultime (“vous”), et ils ne peuvent être utilisés que conformément aux clauses contractuelles ci-
dessous. En utilisant les logiciels, vous vous engagez de manière définitive à respecter les termes, clauses et conditions
des présentes.
Matsushita Electric Industrial Co., Ltd. (“MEI”) a mis au point ou obtenu les...

36
Appendix

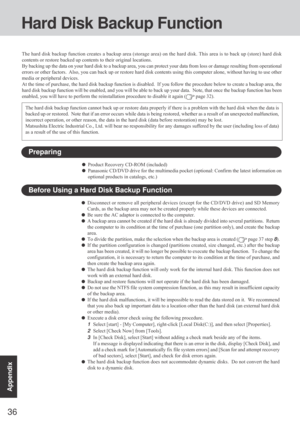

Hard Disk Backup Function
The hard disk backup function creates a backup area (storage area) on the hard disk. This area is to back up (store) hard disk
contents or restore backed up contents to their original locations.
By backing up the data on your hard disk to a backup area, you can protect your data from loss or damage resulting from operational
errors or other factors.  Also, you can back up or restore hard disk contents using this computer alone, without having to use other
media or...

37
Appendix

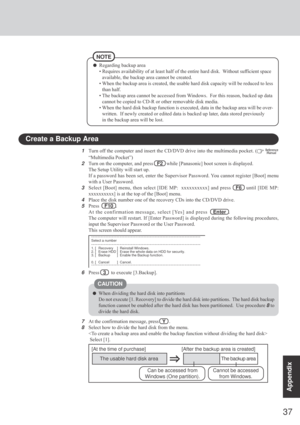

1Turn off the computer and insert the CD/DVD drive into the multimedia pocket. (
“Multimedia Pocket”)
2
Turn on the computer, and press   F2   while [Panasonic] boot screen is displayed.
The Setup Utility will start up.
If a password has been set, enter the Supervisor Password. You cannot register [Boot] menu
with a User Password.
3
Select [Boot] menu, then select [IDE MP:  xxxxxxxxxx] and press   F6   until [IDE MP:
xxxxxxxxxx] is at the top of the [Boot] menu.
4Place the disk number one of...

38
Appendix
Hard Disk Backup Function
9At the confirmation message, press    Y   .
The backup area is then created.
10When the message [You must reboot in order to enable the Backup function] appears, remove
the recovery CD, and press any key to restart the computer. The computer is restarted, then the
backup process will begin.
11 When the message [[Backup] is complete] appears, press   Ctrl   +   Alt   +   Del    to restart the
computer.
Do not press   Ctrl   +   Alt   +   Del   until the message is...

39
Appendix
To disable the hard disk backup function
Perform the reinstallation procedure.  All data in the backup area and the hard disk will be
erased.
Conduct steps 1-8 for “Reinstalling Software” (
 page 32). Select [1] or [2] to execute the
reinstallation at the screen for executing the reinstallation.
• When [1] is selected, the hard disk backup function will be disabled.
• When [2] is selected, the hard disk backup function will be disabled, but in this case, because
the hard disk has been divided...

40
Appendix

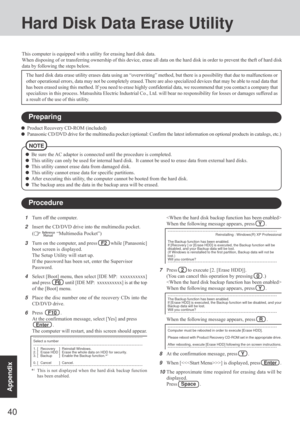

Hard Disk Data Erase Utility
This computer is equipped with a utility for erasing hard disk data.
When disposing of or transferring ownership of this device, erase all data on the hard disk in order to prevent the theft of hard disk
data by following the steps below.
The hard disk data erase utility erases data using an “overwriting” method, but there is a possibility that due to malfunctions or
other operational errors, data may not be completely erased. There are also specialized devices...
