Panasonic Cf W2dwazzkm Owners Manual

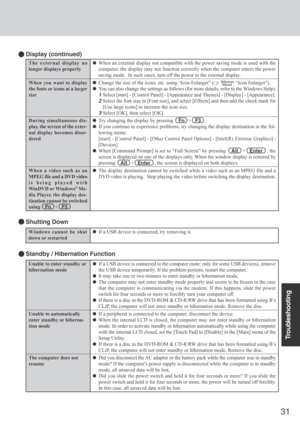

31
Troubleshooting
The external display no
longer displays properly
When you want to display
the fonts or icons at a larger
size
During simultaneous dis-
play, the screen of the exter-
nal display becomes disor-
dered
When a video such as an
MPEG file and a DVD video
is being played with
WinDVD or Windows
® Me-
dia Player, the display des-
tination cannot be switched
using    Fn   +   F3
When an external display not compatible with the power saving mode is used with the
computer, the display may not...

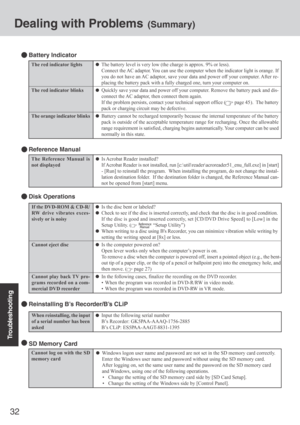

32
Troubleshooting
If the DVD-ROM & CD-R/
RW drive vibrates exces-
sively or is noisy
Cannot eject disc
Cannot play back TV pro-
grams recorded on a com-
mercial DVD recorder
Is the disc bent or labeled?
Check to see if the disc is inserted correctly, and check that the disc is in good condition.
If the disc is good and inserted correctly, set [CD/DVD Drive Speed] to [Low] in the
Setup Utility. (
  “Setup Utility”)
When writing to a disc using Bs Recorder, you can minimize vibration while writing by...

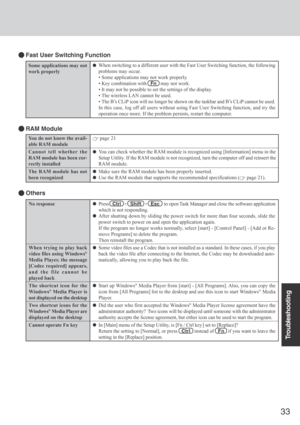

33
Troubleshooting
Some applications may not
work properly
 Fast User Switching Function
When switching to a different user with the Fast User Switching function, the following
problems may occur.
 Some applications may not work properly.

Key combination with   Fn   may not work.
 It may not be possible to set the settings of the display.
 The wireless LAN cannot be used.
 The B’s CLiP icon will no longer be shown on the taskbar and B’s CLiP cannot be used.
In this case, log off all users without...

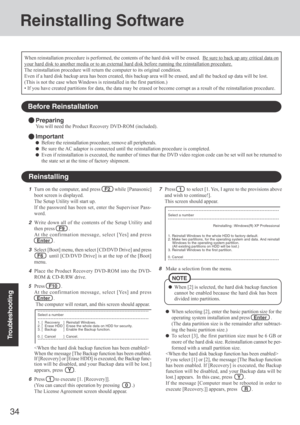

34
Troubleshooting
Reinstalling Software
Before Reinstallation
Preparing
You will need the Product Recovery DVD-ROM (included).
Important
Before the reinstallation procedure, remove all peripherals.
Be sure the AC adaptor is connected until the reinstallation procedure is completed.
Even if reinstallation is executed, the number of times that the DVD video region code can be set will not be returned to
the state set at the time of factory shipment.
Reinstalling
When reinstallation procedure is performed,...

35
Troubleshooting
After the reinstallation procedure completes, this screen
should appear.
-----------------------------------------------------------------------[Recovery] is complete.
Windows(R) XP Professional install wizard will start after reboot.
Please remove the Product Recovery DVD-ROM, and turn off the computer.
------------------------------------------------------------------------
Do not interrupt the reinstallation procedure before
completion, for example by turning off the computer
or...

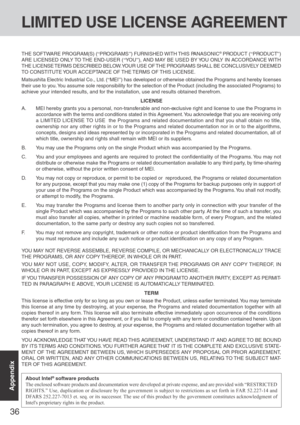

36
Appendix
LIMITED USE LICENSE AGREEMENT
THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS PANASONIC® PRODUCT (“PRODUCT”)
ARE LICENSED ONLY TO THE END-USER (“YO U”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH
THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY DEEMED
TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS  OF THIS LICENSE.
Matsushita Electric Industrial Co., Ltd. (“MEI”) has developed or otherwise obtained the Programs and hereby licenses
their use to you....

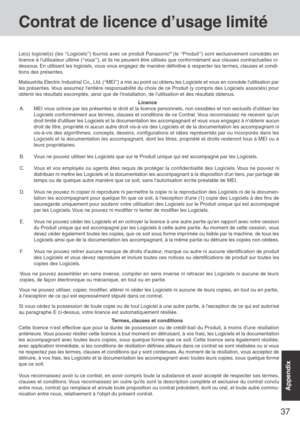

37
Appendix
A. MEI vous octroie par les présentes le droit et la licence personnels, non cessibles et non exclusifs dutiliser les
Logiciels conformément aux termes, clauses et conditions de ce Contrat. Vous reconnaissez ne recevoir quun
droit limité dutiliser les Logiciels et la documentation les accompagnant et vous vous engagez à nobtenir aucun
droit de titre, propriété ni aucun autre droit vis-à-vis des Logiciels et de la documentation les accompagnant ni
vis-à-vis des algorithmes, concepts, dessins,...

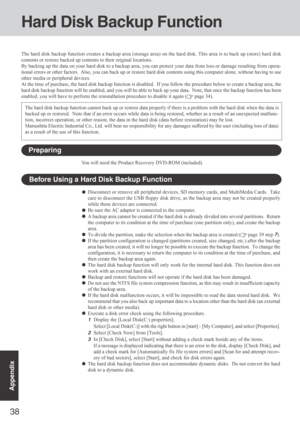

38
Appendix
Hard Disk Backup Function
The hard disk backup function creates a backup area (storage area) on the hard disk. This area is to back up (store) hard disk
contents or restore backed up contents to their original locations.
By backing up the data on your hard disk to a backup area, you can protect your data from loss or damage resulting from opera-
tional errors or other factors.  Also, you can back up or restore hard disk contents using this computer alone, without having to use
other media or...

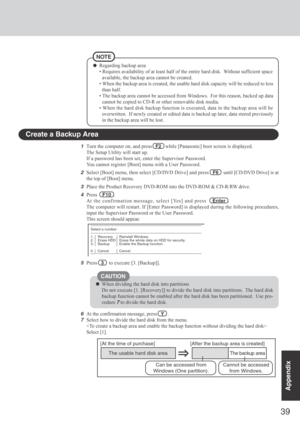

39
Appendix
1Turn the computer on, and press   F2   while [Panasonic] boot screen is displayed.
The Setup Utility will start up.
If a password has been set, enter the Supervisor Password.
You cannot register [Boot] menu with a User Password.
2Select [Boot] menu, then select [CD/DVD  Drive] and press   F6    until [CD/DVD Drive] is at
the top of [Boot] menu.
3Place the Product Recovery DVD-ROM into the DVD-ROM & CD-R/RW drive.
4Press    F10  .
At the confirmation message, select [Yes] and press
  Enter...

40
Appendix

Select [2], enter the partition size (GB), and press   Enter   .
 You can cancel this operation by pressing    0   .
 The data partition size will be the maximum settable size less the number entered above.
The maximum settable size will differ depending on models.
8At the confirmation message, press    Y   .
The backup area is then created.
9When the message [You must reboot in order to enable the Backup function.] appears, remove
the Product Recovery DVD-ROM, and press any key to restart...
