Panasonic Cf W2dwazzkm Owners Manual

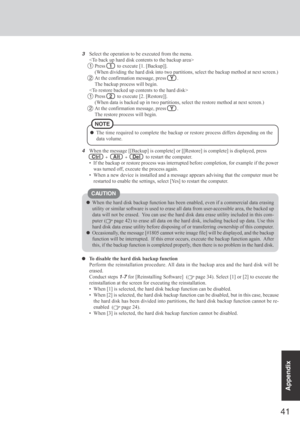

41
Appendix
To disable the hard disk backup function
Perform the reinstallation procedure. All data in the backup area and the hard disk will be
erased.
Conduct steps
1-7 for [Reinstalling Software]  ( page 34). Select [1] or [2] to execute the
reinstallation at the screen for executing the reinstallation.
 When [1] is selected, the hard disk backup function can be disabled.
 When [2] is selected, the hard disk backup function can be disabled, but in this case, because
the hard disk has been divided...

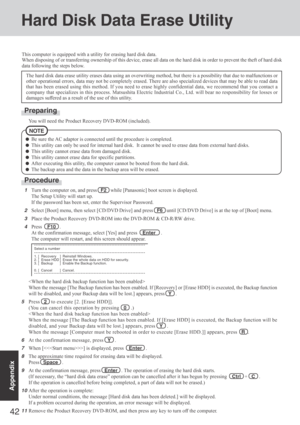

42
Appendix
Hard Disk Data Erase Utility
This computer is equipped with a utility for erasing hard disk data.
When disposing of or transferring ownership of this device, erase all data on the hard disk in order to prevent the theft of hard disk
data following the steps below.
The hard disk data erase utility erases data using an overwriting method, but there is a possibility that due to malfunctions or
other operational errors, data may not be completely erased. There are also specialized devices that...

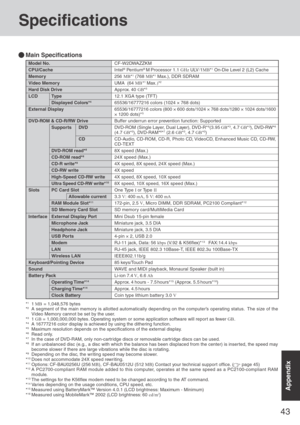

43
Appendix
Model No.
CPU/Cache
Memor y
Video Memor y
Hard Disk Drive
LCD Type
Displayed Colors*4
External Display
DVD-ROM & CD-R/RW Drive
Suppor ts DVD
CD
DVD-ROM read*8
CD-ROM read*8
CD-R write*9
CD-RW write
High-Speed CD-RW write
Ultra Speed CD-RW write*10
Slots PC Card Slot
Allowable current
RAM Module Slot*11
SD Memory Card Slot
Interface External Display Port
Microphone Jack
Headphone Jack
USB Por ts
Modem
LAN
Wireless LAN
Keyboard/Pointing Device
Sound
Batter y Pack
Operating Time*14
Charging...

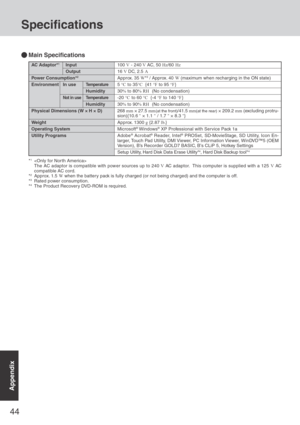

44
Appendix
AC Adaptor*1Input
Output
Power Consumption*2
Environment In useTemperature
Humidity
Not in useTemperature
Humidity
Physical Dimensions (W × H × D)
Weight
Operating System
Utility Programs100 V - 240 V AC, 50 Hz/60 Hz
16 V DC, 2.5 A
Approx. 35 W*3 / Approx. 40 W (maximum when recharging in the ON state)
5 °C to 35°C  {41 °F to 95 °F}
30% to 80% RH  (No condensation)
-20 °C to 60 °C  {-4 °F to 140 °F}
30% to 90% RH  (No condensation)
268 mm × 27.5 mm(at the front)/41.5 mm(at the rear) × 209.2...

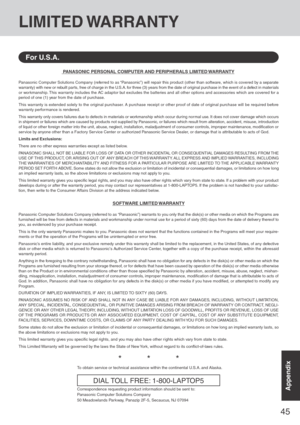

45
Appendix
PANASONIC PERSONAL COMPUTER AND PERIPHERALS LIMITED WARRANTY
Panasonic Computer Solutions Company (referred to as “Panasonic”) will repair this product (other than software, which is covered by a separate
warranty) with new or rebuilt par ts, free of charge in the U.S.A. for three (3) years from the date of original purchase in the event of a defect in materials
or wor kmanship. This warranty includes the AC adaptor but excludes the batteries and all other options and accessories which are...

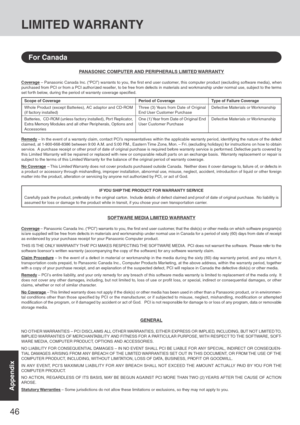

46
Appendix
PANASONIC COMPUTER AND PERIPHERALS LIMITED WARRANTY
Coverage – Panasonic Canada Inc. (“PCI”) warrants to you, the first end user customer, this computer product (excluding software media), when
purchased from PCI or from a PCI author ized reseller, to be free from defects in materials and workmanship under normal use, subject to the terms
set for th below, during the period of warranty coverage specified.
Remedy – In the event of a warranty claim, contact PCI’s representatives within the...

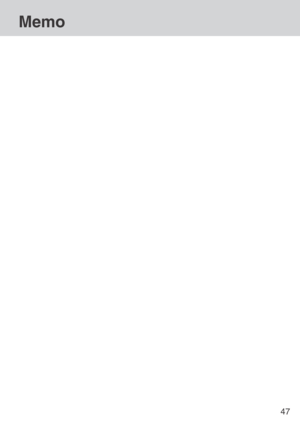

47
Appendix

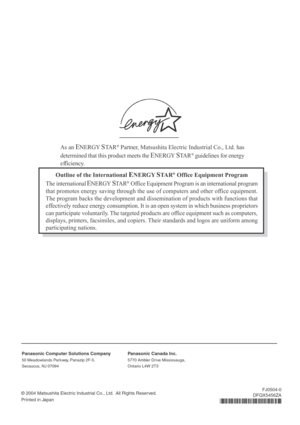

Memo

Outline of the International ENERGY STA R® Office Equipment Program
The international
ENERGY STA R® Office Equipment Program is an international program
that promotes energy saving through the use of computers and other office equipment.
The program backs the development and dissemination of products with functions that
effectively reduce energy consumption. It is an open system in which business proprietors
can participate voluntarily. The targeted products are office equipment such as computers,...
