Panasonic Digital Camera Dmc Gf2c Gf2k Gf2 Basic Operating Instructions

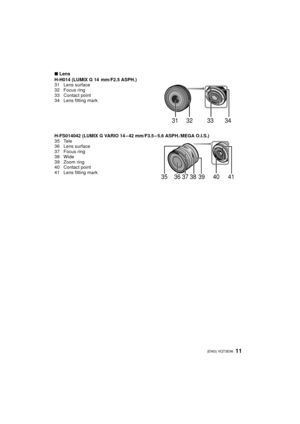

11 (ENG) VQT3E96
∫Lens
H-H014 (LUMIX G 14 mm/F2.5 ASPH.)
31 Lens surface
32 Focus ring
33 Contact point
34 Lens fitting mark
H-FS014042 (LUMIX G VARIO 14 – 42 mm/F3.5 – 5.6 ASPH./MEGA O.I.S.)
35 Tele
36 Lens surface
37 Focus ring
38 Wide
39 Zoom ring
40 Contact point
41 Lens fitting mark
33 34
32
31
35 36 37 38 39 40 41
DMC-GF2PP-VQT3E96_eng.book  11 ページ  ２０１０年１１月１８日　木曜日　午前９時５２分

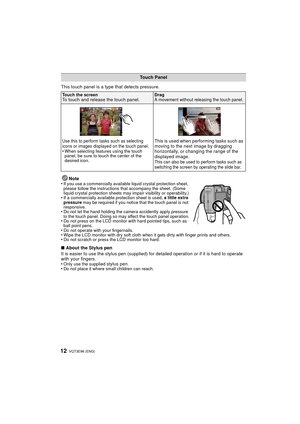

VQT3E96 (ENG) 12
This touch panel is a type that detects pressure.Note
•
If you use a commercially available liquid crystal protection sheet,
please follow the instructions that accompany the sheet. (Some
liquid crystal protection sheets may  impair visibility or operability.)
•If a commercially available protection sheet is used,  a little extra
pressure may be required if you notice that the touch panel is not
responsive.
•Do not let the hand holding the camera accidently apply pressure
to the...

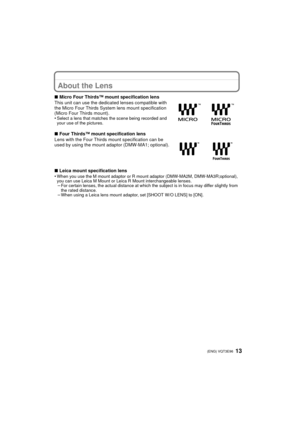

13 (ENG) VQT3E96
About the Lens
∫Micro Four Thirds™ mount specification lens
This unit can use the dedicated lenses compatible with
the Micro Four Thirds System  lens mount specification
(Micro Four Thirds mount).
•
Select a lens that matches the scene being recorded and
your use of the pictures.
∫ Four Thirds™ mount specification lens
Lens with the Four Thirds  mount specification can be
used by using the mount adaptor (DMW-MA1; optional).
∫ Leica mount specification lens
•
When you use the M mount...

VQT3E96 (ENG) 14

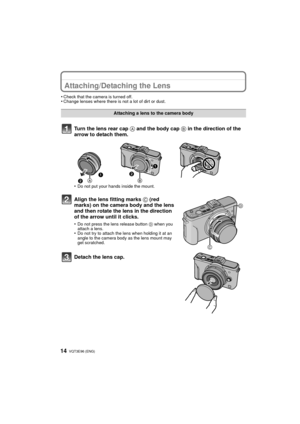

Attaching/Detaching the Lens
•Check that the camera is turned off.•Change lenses where there is not a lot of dirt or dust.
Turn the lens rear cap A and the body cap B in the direction of the
arrow to detach them.
•Do not put your hands inside the mount.
Align the lens fitting marks  C (red
marks) on the camera body and the lens
and then rotate the lens in the direction
of the arrow until it clicks.
•Do not press the lens release button  D when you
attach a lens.
•Do not try to...

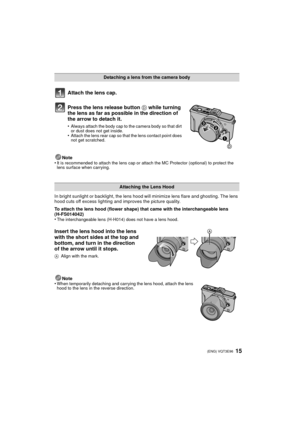

15 (ENG) VQT3E96
Attach the lens cap.
Press the lens release button D while turning
the lens as far as possible in the direction of
the arrow to detach it.
•Always attach the body cap to the camera body so that dirt
or dust does not get inside.
•Attach the lens rear cap so that the lens contact point does
not get scratched.
Note
•It is recommended to attach the lens cap or attach the MC Protector (optional) to protect the
lens surface when carrying.
In bright sunlight or backlight, the lens hood...

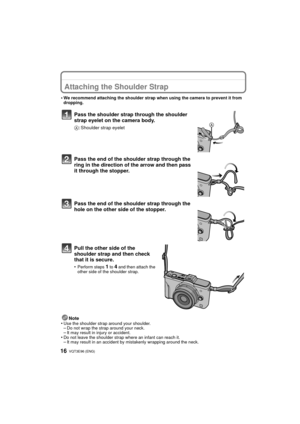

VQT3E96 (ENG) 16
Attaching the Shoulder Strap
•We recommend attaching the shoulder strap when using the camera to prevent it from
dropping.
Pass the shoulder strap through the shoulder
strap eyelet on the camera body.
A: Shoulder strap eyelet
Pass the end of the shoulder strap through the
ring in the direction of the arrow and then pass
it through the stopper.
Pass the end of the shoulder strap through the
hole on the other side of the stopper.
Pull the other side of the
shoulder strap and then...

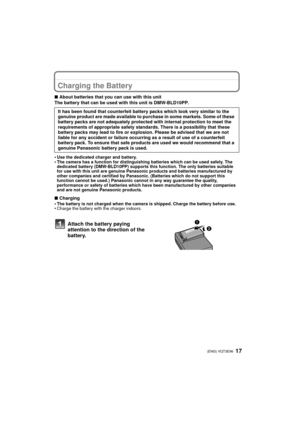

17 (ENG) VQT3E96
Charging the Battery
∫About batteries that you can use with this unit
The battery that can be used with this unit is DMW-BLD10PP.
•
Use the dedicated charger and battery.•The camera has a function for distinguishing batteries which can be used safely. The
dedicated battery (DMW-BLD10PP) supports this function. The only batteries suitable
for use with this unit are genuine Panasonic products and batteries manufactured by
other companies and certified by Panasonic. (Batteries which do...

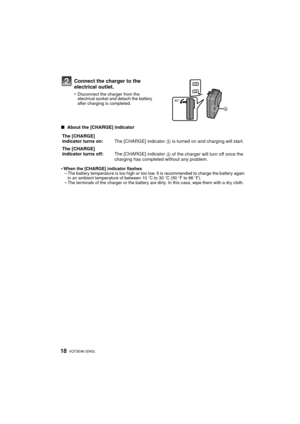

VQT3E96 (ENG) 18
∫ About the [CHARGE] indicator
•
When the [CHARGE] indicator flashes–The battery temperature is too high or too low. It is recommended to charge the battery again
in an ambient temperature of between 10 oC to 30 oC (50 oF to 86 oF).
–The terminals of the charger or the battery are dirty. In this case, wipe them with a dry cloth.
Connect the charger to the
electrical outlet.
•Disconnect the charger from the
electrical socket and detach the battery
after charging is completed.
The...

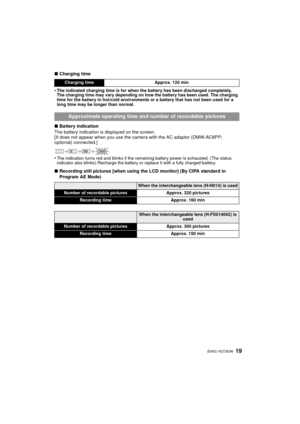

19 (ENG) VQT3E96
∫Charging time
•
The indicated charging time is for when the battery has been discharged completely.
The charging time may vary depending on how the battery has been used. The charging
time for the battery in hot/cold environments or a battery that has not been used for a
long time may be longer than normal.
∫ Battery indication
The battery indication is displayed on the screen.
[It does not appear when you use the camera with the AC adaptor (DMW-AC8PP;
optional) connected.]
•
The...

VQT3E96 (ENG) 20

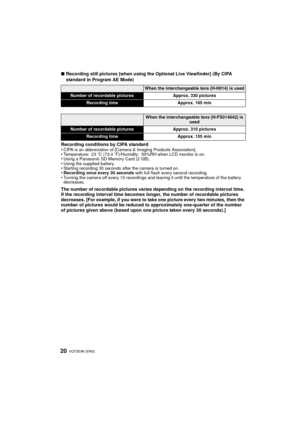

∫Recording still pictures [when using the Optional Live Viewfinder] (By CIPA
standard in Program AE Mode)
Recording conditions by CIPA standard
•
CIPA is an abbreviation of [Camera & Imaging Products Association].•Temperature: 23 oC (73.4 oF)/Humidity: 50%RH when LCD monitor is on.•Using a Panasonic SD Memory Card (2 GB).•Using the supplied battery.•Starting recording 30 seconds after the camera is turned on.•Recording once every 30 seconds  with full flash every second...
