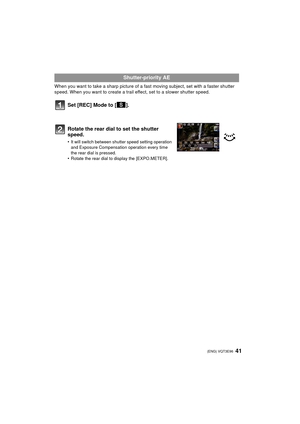

Page 41
![Page 41
41 (ENG) VQT3E96
When you want to take a sharp picture of a fast moving subject, set with a faster shutter
speed. When you want to create a trail effect, set to a slower shutter speed.
Set [REC] Mode to [ ].
Rotate the rear dial to set the shutter
speed.
•It will switch between shutter speed setting operation
and Exposure Compensation operation every time
the rear dial is pressed.
•Rotate the rear dial to display the [EXPO.METER].
Shutter-priority AE
DMC-GF2PP-VQT3E96_eng.book 41 ページ ２０１０年１１月１８日...](http://img.usermanuals.tech/thumb/58/64990/w300_dmc-gf2_en_om_d-40.png "Page 41
41 (ENG) VQT3E96
When you want to take a sharp picture of a fast moving subject, set with a faster shutter
speed. When you want to create a trail effect, set to a slower shutter speed.
Set [REC] Mode to [ ].
Rotate the rear dial to set the shutter
speed.
•It will switch between shutter speed setting operation
and Exposure Compensation operation every time
the rear dial is pressed.
•Rotate the rear dial to display the [EXPO.METER].
Shutter-priority AE
DMC-GF2PP-VQT3E96_eng.book 41 ページ ２０１０年１１月１８日...")
41 (ENG) VQT3E96 When you want to take a sharp picture of a fast moving subject, set with a faster shutter speed. When you want to create a trail effect, set to a slower shutter speed. Set [REC] Mode to [ ]. Rotate the rear dial to set the shutter speed. •It will switch between shutter speed setting operation and Exposure Compensation operation every time the rear dial is pressed. •Rotate the rear dial to display the [EXPO.METER]. Shutter-priority AE DMC-GF2PP-VQT3E96_eng.book 41 ページ ２０１０年１１月１８日...

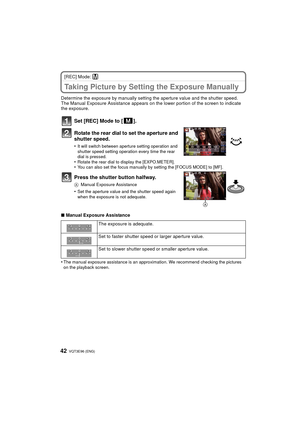

Page 42
![Page 42
VQT3E96 (ENG) 42
[REC] Mode: ²
Taking Picture by Setting the Exposure Manually
Determine the exposure by manually setting the aperture value and the shutter speed.
The Manual Exposure Assistance appears on the lower portion of the screen to indicate
the exposure.
Set [REC] Mode to [ ].
Rotate the rear dial to set the aperture and
shutter speed.
•It will switch between aperture setting operation and
shutter speed setting operation every time the rear
dial is pressed.
•Rotate the rear dial to display...](http://img.usermanuals.tech/thumb/58/64990/w300_dmc-gf2_en_om_d-41.png "Page 42
VQT3E96 (ENG) 42
[REC] Mode: ²
Taking Picture by Setting the Exposure Manually
Determine the exposure by manually setting the aperture value and the shutter speed.
The Manual Exposure Assistance appears on the lower portion of the screen to indicate
the exposure.
Set [REC] Mode to [ ].
Rotate the rear dial to set the aperture and
shutter speed.
•It will switch between aperture setting operation and
shutter speed setting operation every time the rear
dial is pressed.
•Rotate the rear dial to display...")
VQT3E96 (ENG) 42 [REC] Mode: ² Taking Picture by Setting the Exposure Manually Determine the exposure by manually setting the aperture value and the shutter speed. The Manual Exposure Assistance appears on the lower portion of the screen to indicate the exposure. Set [REC] Mode to [ ]. Rotate the rear dial to set the aperture and shutter speed. •It will switch between aperture setting operation and shutter speed setting operation every time the rear dial is pressed. •Rotate the rear dial to display...

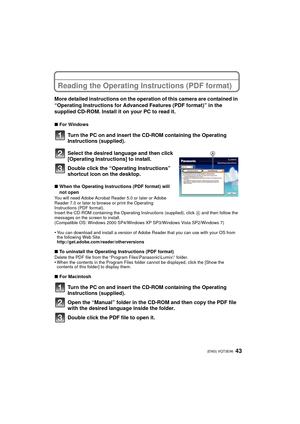

Page 43
![Page 43
43 (ENG) VQT3E96
Reading the Operating Instructions (PDF format)
More detailed instructions on the operation of this camera are contained in
“Operating Instructions for Advanced Features (PDF format)” in the
supplied CD-ROM. Install it on your PC to read it.
∫For Windows
Turn the PC on and insert the CD-ROM containing the Operating
Instructions (supplied).
Select the desired language and then click
[Operating Instructions] to install.
Double click the “Operating Instructions”
shortcut icon on the...](http://img.usermanuals.tech/thumb/58/64990/w300_dmc-gf2_en_om_d-42.png "Page 43
43 (ENG) VQT3E96
Reading the Operating Instructions (PDF format)
More detailed instructions on the operation of this camera are contained in
“Operating Instructions for Advanced Features (PDF format)” in the
supplied CD-ROM. Install it on your PC to read it.
∫For Windows
Turn the PC on and insert the CD-ROM containing the Operating
Instructions (supplied).
Select the desired language and then click
[Operating Instructions] to install.
Double click the “Operating Instructions”
shortcut icon on the...")
43 (ENG) VQT3E96 Reading the Operating Instructions (PDF format) More detailed instructions on the operation of this camera are contained in “Operating Instructions for Advanced Features (PDF format)” in the supplied CD-ROM. Install it on your PC to read it. ∫For Windows Turn the PC on and insert the CD-ROM containing the Operating Instructions (supplied). Select the desired language and then click [Operating Instructions] to install. Double click the “Operating Instructions” shortcut icon on the...

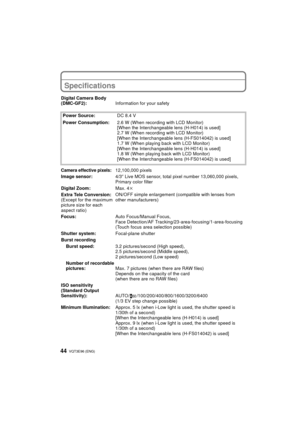

Page 44
![Page 44
VQT3E96 (ENG) 44
Specifications
Digital Camera Body
(DMC-GF2):Information for your safety
Power Source: DC 8.4 V
Power Consumption: 2.6 W (When recording with LCD Monitor)
[When the Interchangeable lens (H-H014) is used]
2.7 W (When recording with LCD Monitor)
[When the Interchangeable lens (H-FS014042) is used]
1.7 W (When playing back with LCD Monitor)
[When the Interchangeable lens (H-H014) is used]
1.8 W (When playing back with LCD Monitor)
[When the Interchangeable lens (H-FS014042) is used]
Camera...](http://img.usermanuals.tech/thumb/58/64990/w300_dmc-gf2_en_om_d-43.png "Page 44
VQT3E96 (ENG) 44
Specifications
Digital Camera Body
(DMC-GF2):Information for your safety
Power Source: DC 8.4 V
Power Consumption: 2.6 W (When recording with LCD Monitor)
[When the Interchangeable lens (H-H014) is used]
2.7 W (When recording with LCD Monitor)
[When the Interchangeable lens (H-FS014042) is used]
1.7 W (When playing back with LCD Monitor)
[When the Interchangeable lens (H-H014) is used]
1.8 W (When playing back with LCD Monitor)
[When the Interchangeable lens (H-FS014042) is used]
Camera...")
VQT3E96 (ENG) 44 Specifications Digital Camera Body (DMC-GF2):Information for your safety Power Source: DC 8.4 V Power Consumption: 2.6 W (When recording with LCD Monitor) [When the Interchangeable lens (H-H014) is used] 2.7 W (When recording with LCD Monitor) [When the Interchangeable lens (H-FS014042) is used] 1.7 W (When playing back with LCD Monitor) [When the Interchangeable lens (H-H014) is used] 1.8 W (When playing back with LCD Monitor) [When the Interchangeable lens (H-FS014042) is used] Camera...
Page 45
45 (ENG) VQT3E96 Shutter speed:60 seconds to 1/4000th of a second Metering range: EV 0 to EV 18 White Balance: Auto White Balance/Daylight/Cloudy/Shade/Incandescent lights/Flash/White set1/White set2/White Balance K set Exposure (AE): Program AE (P)/Aperture-priority AE (A)/Shutter-priority AE (S)/ Manual exposure (M)/AUTO Exposure Compensation (1/3 EV Step, j3EV to i3EV) Metering Mode: Multiple/Center weighted/Spot LCD monitor: 3.0q TFT LCD (3:2) (Approx. 460,000 dots) (field of view ratio about...

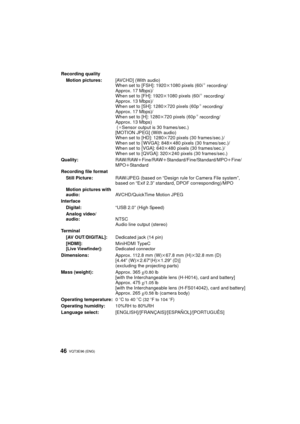

Page 46
![Page 46
VQT3E96 (ENG) 46
Recording qualityMotion pictures: [AVCHD] (With audio)
When set to [FSH]: 1920 k1080 pixels (60i
¢ recording/
Approx. 17 Mbps)/
When set to [FH]: 1920 k1080 pixels (60i
¢ recording/
Approx. 13 Mbps)/
When set to [SH]: 1280 k720 pixels (60p
¢ recording/
Approx. 17 Mbps)/
When set to [H]: 1280 k720 pixels (60p
¢ recording/
Approx. 13 Mbps)
(
¢Sensor output is 30 frames/sec.)
[MOTION JPEG] (With audio)
When set to [HD]: 1280 k720 pixels (30 frames/sec.)/
When set to [ WVGA]: 848 k480...](http://img.usermanuals.tech/thumb/58/64990/w300_dmc-gf2_en_om_d-45.png "Page 46
VQT3E96 (ENG) 46
Recording qualityMotion pictures: [AVCHD] (With audio)
When set to [FSH]: 1920 k1080 pixels (60i
¢ recording/
Approx. 17 Mbps)/
When set to [FH]: 1920 k1080 pixels (60i
¢ recording/
Approx. 13 Mbps)/
When set to [SH]: 1280 k720 pixels (60p
¢ recording/
Approx. 17 Mbps)/
When set to [H]: 1280 k720 pixels (60p
¢ recording/
Approx. 13 Mbps)
(
¢Sensor output is 30 frames/sec.)
[MOTION JPEG] (With audio)
When set to [HD]: 1280 k720 pixels (30 frames/sec.)/
When set to [ WVGA]: 848 k480...")
VQT3E96 (ENG) 46 Recording qualityMotion pictures: [AVCHD] (With audio) When set to [FSH]: 1920 k1080 pixels (60i ¢ recording/ Approx. 17 Mbps)/ When set to [FH]: 1920 k1080 pixels (60i ¢ recording/ Approx. 13 Mbps)/ When set to [SH]: 1280 k720 pixels (60p ¢ recording/ Approx. 17 Mbps)/ When set to [H]: 1280 k720 pixels (60p ¢ recording/ Approx. 13 Mbps) ( ¢Sensor output is 30 frames/sec.) [MOTION JPEG] (With audio) When set to [HD]: 1280 k720 pixels (30 frames/sec.)/ When set to [ WVGA]: 848 k480...

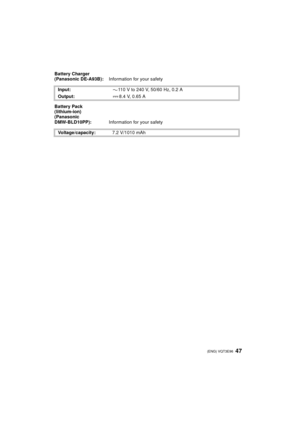

Page 47
47 (ENG) VQT3E96 Battery Charger (Panasonic DE-A93B):Information for your safety Input: 110 V to 240 V, 50/60 Hz, 0.2 A Output: 8.4 V, 0.65 A Battery Pack (lithium-ion) (Panasonic DMW-BLD10PP): Information for your safety Voltage/capacity: 7.2 V/1010 mAh DMC-GF2PP-VQT3E96_eng.book 47 ページ ２０１０年１１月１８日 木曜日 午前９時５２分

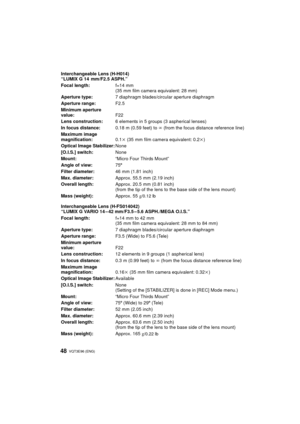

Page 48
VQT3E96 (ENG) 48 Interchangeable Lens (H-H014) “LUMIX G 14 mm/F2.5 ASPH.” Interchangeable Lens (H-FS014042) “LUMIX G VARIO 14 – 42 mm/F3.5 – 5.6 ASPH./MEGA O.I.S.” Focal length:f=14 mm (35 mm film camera equivalent: 28 mm) Aperture type: 7 diaphragm blades/circular aperture diaphragm Aperture range: F2.5 Minimum aperture value: F22 Lens construction: 6 elements in 5 groups (3 aspherical lenses) In focus distance: 0.18 m (0.59 feet) to ¶ (from the focus distance reference line) Maximum image...

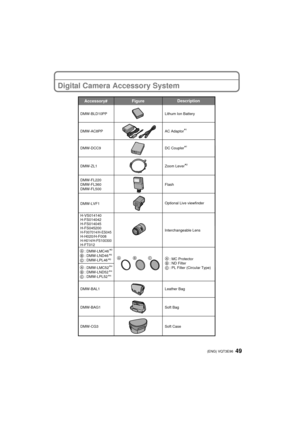

Page 49
49 (ENG) VQT3E96 Digital Camera Accessory System DMW-BAG1Soft Bag DMW-BAL1Leather Bag Accessory#Description Figure DMW-BLD10PP Lithum Ion Battery Interchangeable Lens DMW-FL220 DMW-FL360 DMW-FL500 Flash Soft Case : MC Protector : ND Filter : PL Filter (Circular Type) : DMW-LMC46 : DMW-LND46 : DMW-LPL46333 : DMW-LMC52 : DMW-LND52 : DMW-LPL52444 DMW-CG3 DMW-AC8PP DMW-DCC9 1DC Coupler 1AC Adaptor DMW-ZL1 Zoom Lever 2 DMW-LVF1Optional Live viewfinder H-VS014140 H-FS014042 H-FS014045 H-FS045200...

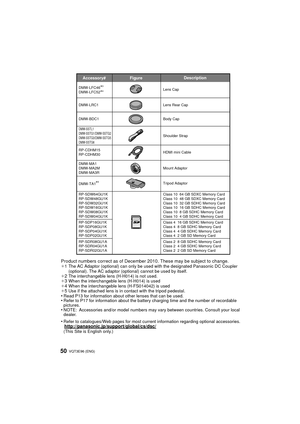

Page 50
VQT3E96 (ENG) 50 Product numbers correct as of December 2010. These may be subject to change.¢1 The AC Adaptor (optional) can only be used with the designated Panasonic DC Coupler (optional). The AC adaptor (optional) cannot be used by itself. ¢ 2The interchangeble lens (H-H014) is not used. ¢3When the interchangeble lens (H-H014) is used ¢4When the interchangeble lens (H-FS014042) is used ¢5Use if the attached lens is in contact with the tripod pedestal.•Read P13 for information about other lenses that...
