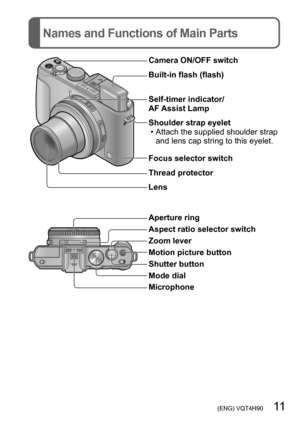

(ENG) VQT4H90 11 Names and Functions of Main Parts Camera ON/OFF switch Built-in flash (flash) Self-timer indicator/ AF Assist Lamp Shoulder strap eyelet • Attach the supplied shoulder strap and lens cap string to this eyelet. Focus selector switch Thread protector Lens Aperture ring Aspect ratio selector switch Zoom lever Motion picture button Shutter button Mode dial Microphone
Page 12

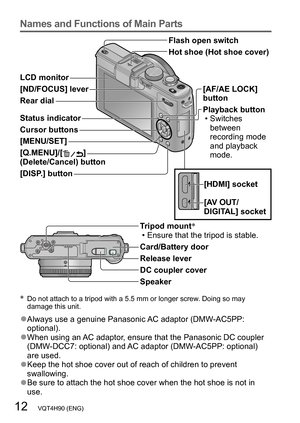

![Page 12
12 VQT4H90 (ENG)
Names and Functions of Main Parts
LCD monitor
[ND/FOCUS] lever
Rear dial
Status indicator
Cursor buttons
[MENU/SET]
[Q.MENU]/[
]
(Delete/Cancel) button
[DISP.] button Flash open switch
Hot shoe (Hot shoe cover)
[AF/AE LOCK]
button
Playback button
• Switches between
recording mode
and playback
mode.
[HDMI] socket
[AV OUT/
DIGITAL] socket
* Do not attach to a tripod with a 5.5 mm or longer screw. Doing so may
damage this unit.
●Always use a genuine Panasonic AC adaptor...](http://img.usermanuals.tech/thumb/58/66185/w300_dmc-lx7_en_om_d-11.png "Page 12
12 VQT4H90 (ENG)
Names and Functions of Main Parts
LCD monitor
[ND/FOCUS] lever
Rear dial
Status indicator
Cursor buttons
[MENU/SET]
[Q.MENU]/[
]
(Delete/Cancel) button
[DISP.] button Flash open switch
Hot shoe (Hot shoe cover)
[AF/AE LOCK]
button
Playback button
• Switches between
recording mode
and playback
mode.
[HDMI] socket
[AV OUT/
DIGITAL] socket
* Do not attach to a tripod with a 5.5 mm or longer screw. Doing so may
damage this unit.
●Always use a genuine Panasonic AC adaptor...")
12 VQT4H90 (ENG) Names and Functions of Main Parts LCD monitor [ND/FOCUS] lever Rear dial Status indicator Cursor buttons [MENU/SET] [Q.MENU]/[ ] (Delete/Cancel) button [DISP.] button Flash open switch Hot shoe (Hot shoe cover) [AF/AE LOCK] button Playback button • Switches between recording mode and playback mode. [HDMI] socket [AV OUT/ DIGITAL] socket * Do not attach to a tripod with a 5.5 mm or longer screw. Doing so may damage this unit. ●Always use a genuine Panasonic AC adaptor...
Page 13

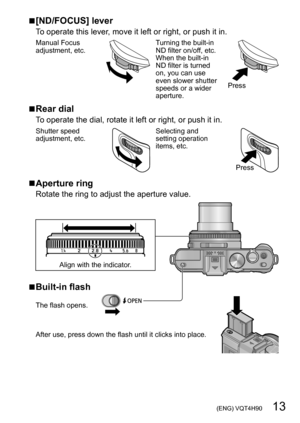

![Page 13
(ENG) VQT4H90 13
■[ND/FOCUS] lever
To operate this lever, move it left or right, or push it in.
Manual Focus
adjustment, etc.Turning the built-in
ND filter on/off, etc.
When the built-in
ND filter is turned
on, you can use
even slower shutter
speeds or a wider
aperture.
Press
■Rear dial
To operate the dial, rotate it left or right, or push it in.
Shutter speed
adjustment, etc.Selecting and
setting operation
items, etc.
Press
■Aperture ring
Rotate the ring to adjust the aperture value....](http://img.usermanuals.tech/thumb/58/66185/w300_dmc-lx7_en_om_d-12.png "Page 13
(ENG) VQT4H90 13
■[ND/FOCUS] lever
To operate this lever, move it left or right, or push it in.
Manual Focus
adjustment, etc.Turning the built-in
ND filter on/off, etc.
When the built-in
ND filter is turned
on, you can use
even slower shutter
speeds or a wider
aperture.
Press
■Rear dial
To operate the dial, rotate it left or right, or push it in.
Shutter speed
adjustment, etc.Selecting and
setting operation
items, etc.
Press
■Aperture ring
Rotate the ring to adjust the aperture value....")
(ENG) VQT4H90 13 ■[ND/FOCUS] lever To operate this lever, move it left or right, or push it in. Manual Focus adjustment, etc.Turning the built-in ND filter on/off, etc. When the built-in ND filter is turned on, you can use even slower shutter speeds or a wider aperture. Press ■Rear dial To operate the dial, rotate it left or right, or push it in. Shutter speed adjustment, etc.Selecting and setting operation items, etc. Press ■Aperture ring Rotate the ring to adjust the aperture value....
Page 14

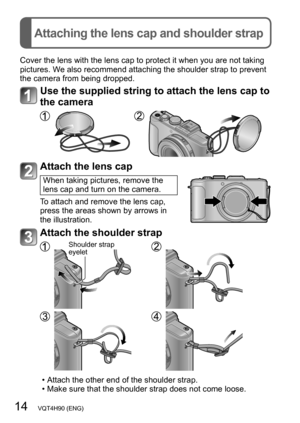

14 VQT4H90 (ENG) Attaching the lens cap and shoulder strap Cover the lens with the lens cap to protect it when you are not taking pictures. We also recommend attaching the shoulder strap to prevent the camera from being dropped. Use the supplied string to attach the lens cap to the camera Attach the lens cap When taking pictures, remove the lens cap and turn on the camera. To attach and remove the lens cap, press the areas shown by arrows in the illustration. Attach the shoulder strap Shoulder...
Page 15
![Page 15
(ENG) VQT4H90 15
Charging the battery
Position the battery contacts
to meet the charger, then insert
the battery into the charger
Ensure [LUMIX] faces outwards.
Plug the charger into the AC power
Charging light ([CHARGE])
On: Charging in progress
(approx. 155 min. if fully depleted)
Off: Charging complete
■About batteries that you can use with this unit
The DMW-BCJ13PP is the only battery that can be used in this
camera.
•Use the dedicated charger and battery. •The battery is not charged when...](http://img.usermanuals.tech/thumb/58/66185/w300_dmc-lx7_en_om_d-14.png "Page 15
(ENG) VQT4H90 15
Charging the battery
Position the battery contacts
to meet the charger, then insert
the battery into the charger
Ensure [LUMIX] faces outwards.
Plug the charger into the AC power
Charging light ([CHARGE])
On: Charging in progress
(approx. 155 min. if fully depleted)
Off: Charging complete
■About batteries that you can use with this unit
The DMW-BCJ13PP is the only battery that can be used in this
camera.
•Use the dedicated charger and battery. •The battery is not charged when...")
(ENG) VQT4H90 15 Charging the battery Position the battery contacts to meet the charger, then insert the battery into the charger Ensure [LUMIX] faces outwards. Plug the charger into the AC power Charging light ([CHARGE]) On: Charging in progress (approx. 155 min. if fully depleted) Off: Charging complete ■About batteries that you can use with this unit The DMW-BCJ13PP is the only battery that can be used in this camera. •Use the dedicated charger and battery. •The battery is not charged when...
Page 16
![Page 16
16 VQT4H90 (ENG)
Inserting and removing the battery or SD
memory card (optional)
Check that this unit is turned off.
Slide the release lever () to
the [OPEN] position and open
the card/battery door
[OPEN] [LOCK]
Insert the battery and card,
making sure that their
orientation is correct
• Battery: Insert the battery all the way
firmly until a locking sound
is heard, and check that it is
locked by lever (
). •Card: Insert the card all the way
firmly until it clicks.Do not touch
the...](http://img.usermanuals.tech/thumb/58/66185/w300_dmc-lx7_en_om_d-15.png "Page 16
16 VQT4H90 (ENG)
Inserting and removing the battery or SD
memory card (optional)
Check that this unit is turned off.
Slide the release lever () to
the [OPEN] position and open
the card/battery door
[OPEN] [LOCK]
Insert the battery and card,
making sure that their
orientation is correct
• Battery: Insert the battery all the way
firmly until a locking sound
is heard, and check that it is
locked by lever (
). •Card: Insert the card all the way
firmly until it clicks.Do not touch
the...")
16 VQT4H90 (ENG) Inserting and removing the battery or SD memory card (optional) Check that this unit is turned off. Slide the release lever () to the [OPEN] position and open the card/battery door [OPEN] [LOCK] Insert the battery and card, making sure that their orientation is correct • Battery: Insert the battery all the way firmly until a locking sound is heard, and check that it is locked by lever ( ). •Card: Insert the card all the way firmly until it clicks.Do not touch the...
Page 17
![Page 17
(ENG) VQT4H90 17
Setting the clock
The clock is not set when the camera is shipped.
Before using the camera, remove the lens cap.
Turn the camera on ()
Press [MENU/SET] ()
Press to select the items
(year, month, day, hour,
minute, display order or time
display format), and press
to set
Press [MENU/SET]
Press [MENU/SET] to set
• To return to the previous screen, press [] button.
■Changing time settings
Select [Clock Set] from [Rec] or [Setup] menu, perform and .
For details about how to...](http://img.usermanuals.tech/thumb/58/66185/w300_dmc-lx7_en_om_d-16.png "Page 17
(ENG) VQT4H90 17
Setting the clock
The clock is not set when the camera is shipped.
Before using the camera, remove the lens cap.
Turn the camera on ()
Press [MENU/SET] ()
Press to select the items
(year, month, day, hour,
minute, display order or time
display format), and press
to set
Press [MENU/SET]
Press [MENU/SET] to set
• To return to the previous screen, press [] button.
■Changing time settings
Select [Clock Set] from [Rec] or [Setup] menu, perform and .
For details about how to...")
(ENG) VQT4H90 17 Setting the clock The clock is not set when the camera is shipped. Before using the camera, remove the lens cap. Turn the camera on () Press [MENU/SET] () Press to select the items (year, month, day, hour, minute, display order or time display format), and press to set Press [MENU/SET] Press [MENU/SET] to set • To return to the previous screen, press [] button. ■Changing time settings Select [Clock Set] from [Rec] or [Setup] menu, perform and . For details about how to...
Page 18
![Page 18

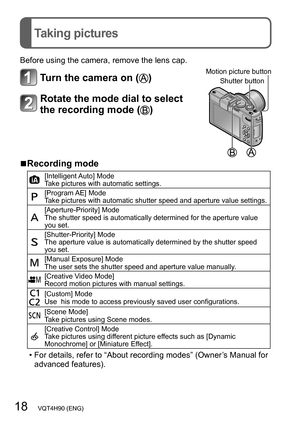

18 VQT4H90 (ENG)
Taking pictures
Before using the camera, remove the lens cap.
Turn the camera on ()Shutter buttonMotion picture button
Rotate the mode dial to select
the recording mode (
)
■Recording mode
[Intelligent Auto] Mode
Take pictures with automatic settings.
[Program AE] Mode
Take pictures with automatic shutter speed and aperture value settings.
[Aperture-Priority] Mode
The shutter speed is automatically determined for the aperture value
you set.
[Shutter-Priority] Mode
The aperture value...](http://img.usermanuals.tech/thumb/58/66185/w300_dmc-lx7_en_om_d-17.png "Page 18
18 VQT4H90 (ENG)
Taking pictures
Before using the camera, remove the lens cap.
Turn the camera on ()Shutter buttonMotion picture button
Rotate the mode dial to select
the recording mode (
)
■Recording mode
[Intelligent Auto] Mode
Take pictures with automatic settings.
[Program AE] Mode
Take pictures with automatic shutter speed and aperture value settings.
[Aperture-Priority] Mode
The shutter speed is automatically determined for the aperture value
you set.
[Shutter-Priority] Mode
The aperture value...")
18 VQT4H90 (ENG) Taking pictures Before using the camera, remove the lens cap. Turn the camera on ()Shutter buttonMotion picture button Rotate the mode dial to select the recording mode ( ) ■Recording mode [Intelligent Auto] Mode Take pictures with automatic settings. [Program AE] Mode Take pictures with automatic shutter speed and aperture value settings. [Aperture-Priority] Mode The shutter speed is automatically determined for the aperture value you set. [Shutter-Priority] Mode The aperture value...
Page 19

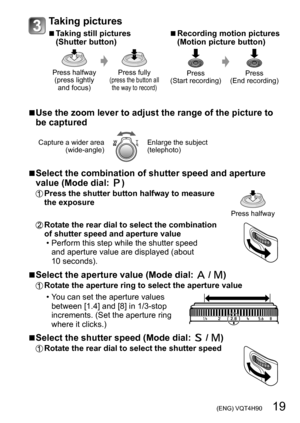

(ENG) VQT4H90 19 Taking pictures ■Taking still pictures (Shutter button) Press halfway (press lightly and focus) Press fully (press the button all the way to record) ■Recording motion pictures (Motion picture button) Press (Start recording) Press (End recording) ■Use the zoom lever to adjust the range of the picture to be captured Capture a wider area (wide-angle)Enlarge the subject (telephoto) ■Select the combination of shutter speed and aperture value (Mode dial: ) Press the shutter...
Page 20
![Page 20

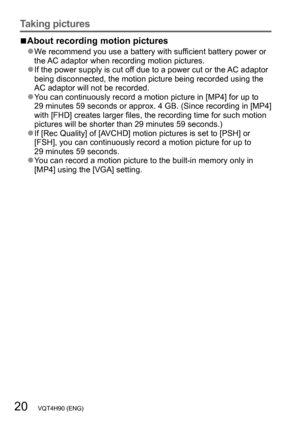

20 VQT4H90 (ENG)
Taking pictures
■About recording motion pictures
●We recommend you use a battery with sufficient battery power or
the AC adaptor when recording motion pictures.
●If the power supply is cut off due to a power cut or the AC adaptor
being disconnected, the motion picture being recorded using the
AC adaptor will not be recorded.
●You can continuously record a motion picture in [MP4] for up to
29 minutes 59 seconds or approx. 4 GB. (Since recording in [MP4]
with [FHD] creates...](http://img.usermanuals.tech/thumb/58/66185/w300_dmc-lx7_en_om_d-19.png "Page 20
20 VQT4H90 (ENG)
Taking pictures
■About recording motion pictures
●We recommend you use a battery with sufficient battery power or
the AC adaptor when recording motion pictures.
●If the power supply is cut off due to a power cut or the AC adaptor
being disconnected, the motion picture being recorded using the
AC adaptor will not be recorded.
●You can continuously record a motion picture in [MP4] for up to
29 minutes 59 seconds or approx. 4 GB. (Since recording in [MP4]
with [FHD] creates...")
20 VQT4H90 (ENG) Taking pictures ■About recording motion pictures ●We recommend you use a battery with sufficient battery power or the AC adaptor when recording motion pictures. ●If the power supply is cut off due to a power cut or the AC adaptor being disconnected, the motion picture being recorded using the AC adaptor will not be recorded. ●You can continuously record a motion picture in [MP4] for up to 29 minutes 59 seconds or approx. 4 GB. (Since recording in [MP4] with [FHD] creates...
