Panasonic Digital Camera Dmc Lx7 Basic Owners Manual

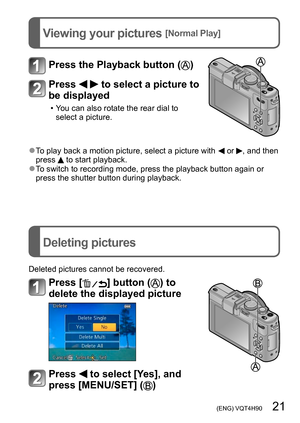

 (ENG) VQT4H90   21
Viewing your pictures [Normal Play]
Deleting pictures
Press the Playback button ()
Press   to select a picture to
be displayed
 • You can also rotate the rear dial to
select a picture.
 ●To play back a motion picture, select a picture with  or , and then
press  to start playback. ●To switch to recording mode, press the playback button again or
press the shutter button during playback.
Deleted pictures cannot be recovered.
Press [] button () to
delete the displayed picture
Press...

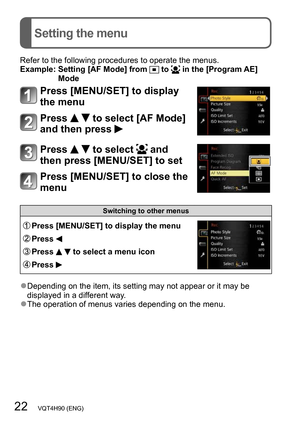

22   VQT4H90 (ENG)
Setting the menu
Refer to the following procedures to operate the menus.
Example:  Setting [AF Mode] from  to  in the [Program AE]
Mode
Press [MENU/SET] to display
the menu
Press   to select [AF Mode]
and then press
Press   to select  and
then press [MENU/SET] to set
Press [MENU/SET] to close the
menu
Switching to other menus
Press [MENU/SET] to display the menu
Press
Press   to select a menu icon
Press
 ●Depending on the item, its setting may not appear or it may be
displayed...

 (ENG) VQT4H90   23
Reading the Owner’s Manual (PDF format)
More detailed instructions on the operation of this camera are
contained in “Owner’s Manual for advanced features (PDF format)” in
the supplied CD
-ROM. Install it on your PC to read it.
 ■For Windows
Turn the PC on and insert the CD-ROM
containing the Owner’s Manual (supplied)
Select the desired language
and then click “Owner’s
Manual” to install
Double-click the “Owner’s
Manual” shortcut icon on
the desktop
 ■When the Owner’s Manual...

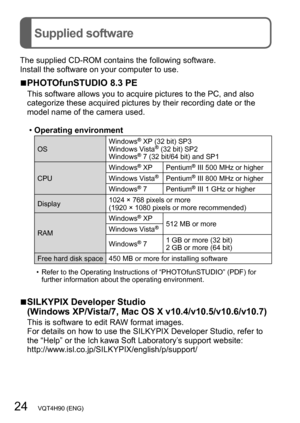

24   VQT4H90 (ENG)
Supplied software
The supplied CD-ROM contains the following software.
Install the software on your computer to use.
 ■PHOTOfunSTUDIO 8.3 PE
This software allows you to acquire pictures to the PC, and also
categorize these acquired pictures by their recording date or the
model name of the camera used.
 • Operating environment
OS Windows® XP (32 bit) SP3
Windows Vista® (32 bit) SP2
Windows® 7 (32 bit/64 bit) and SP1
CPU Windows® XP Pentium® III 500 MHz or higher
Windows Vista®Pentium®...

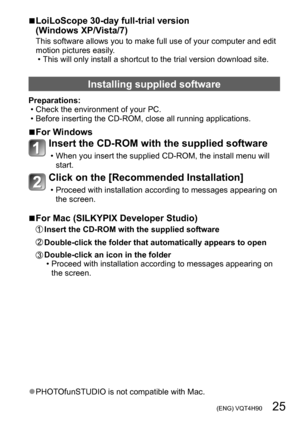

 (ENG) VQT4H90   25
 ■LoiLoScope 30-day full-trial version
(Windows XP/Vista/7)
This software allows you to make full use of your computer and edit
motion pictures easily.
 • This will only install a shortcut to the trial version download site.
Installing supplied software
Preparations: • Check the environment of your PC. • Before inserting the CD-ROM, close all running applications.
 ■For Windows
Insert the CD-ROM with the supplied software
 • When you insert the supplied CD-ROM, the install menu...

26   VQT4H90 (ENG)
Specifications
Specifications are subject to change without notice.
Digital Camera: Information for Your Safety
Power Source DC 5.1 V
Power
Consumption When recording: 1.6 W
When playing back: 1.1 W
Camera effective
pixels 10,100,000 pixels
Image sensor 1/1.7” MOS sensor,
total pixel number 12,800,000 pixels
Primary color filter
Lens
[NANO SURFACE
COATING] Optical 3.8x zoom
f=4.7 mm to 17.7 mm
(35 mm film camera equivalent: 24 mm to 90 mm) /
F1.4 (Max. Wide) to F2.3 (Max. Tele)...

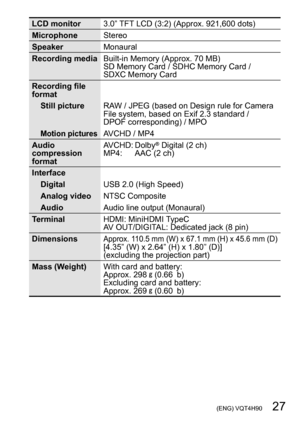

 (ENG) VQT4H90   27
LCD monitor3.0” TFT LCD (3:2) (Approx. 921,600 dots)
Microphone Stereo
Speaker Monaural
Recording media Built-in Memory (Approx. 70 MB)
SD Memory Card / SDHC Memory Card /
SDXC Memory Card
Recording file
format Still picture RAW / JPEG (based on Design rule for Camera
File system, based on Exif 2.3 standard /
DPOF corresponding) / MPO
Motion picturesAVCHD / MP4
Audio
compression
format  AVCHD:
 Dolby® Digital (2 ch)
MP4:
   AAC (2 ch)
Interface Digital USB 2.0 (High...

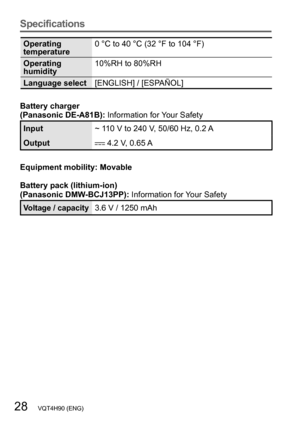

28   VQT4H90 (ENG)
Specifications
Operating
temperature0 °C to 40 °C (32 °F to 104 °F)
Operating
humidity 10%RH to 80%RH
Language select [ENGLISH] / [ESPAÑOL]
Battery charger
(Panasonic DE-A81B):  Information for
Your Safety
Input~ 110 V to 240 V, 50/60 Hz, 0.2 A
Output
 4.2 V, 0.65 A
Equipment mobility: Movable
Battery pack (lithium-ion)
(Panasonic DMW-BCJ13PP):  Information for Your Safety
Voltage / capacity3.6 V / 1250 mAh

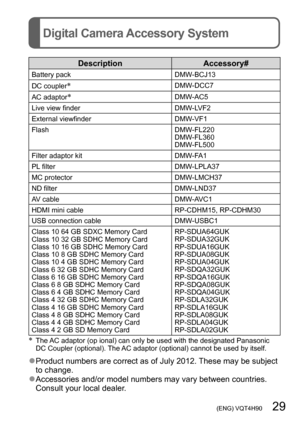

 (ENG) VQT4H90   29
Digital Camera Accessory System
DescriptionAccessory#
Battery pack DMW-BCJ13
DC coupler
*DMW-DCC7
AC adaptor
*DMW-AC5
Live view finder DMW-LVF2
External viewfinder DMW-VF1
Flash DMW-FL220
DMW-FL360
DMW-FL500
Filter adaptor kit DMW-FA1
PL filter DMW-LPLA37
MC protector DMW-LMCH37
ND filter DMW-LND37
AV cable DMW-AVC1
HDMI mini cable RP-CDHM15, RP-CDHM30
USB connection cable DMW-USBC1
Class 10 64 GB SDXC Memory Card
Class 10 32 GB SDHC Memory Card
Class 10 16 GB SDHC Memory Card
Class...

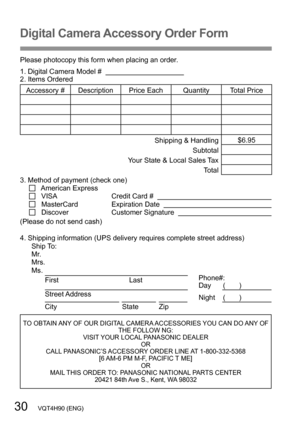

30   VQT4H90 (ENG)
Digital Camera Accessory Order Form
Please photocopy this form when placing an order.
1. Digital Camera Model #
2. Items Ordered
Accessory #  Description Price Each Quantity Total PriceShipping & Handling$6.95
Subtotal
Your State & Local Sales Tax Total
3. Method of payment (check one)
   American Express
    VISA                                      Credit Card #       MasterCard                      Expiration Date       Discover...
