Panasonic Digital Camera Dmc Sz8 Owners Manual For Advanced Features

- 121 -
Wi-Fi
To send images, select [New Connection] , and select the method for sending them.
Even after completing the connection, you can still change the size of the images to be sent.
∫Images that can be sent
¢ Sending by [Send Images While Recording] is not available.
•Some images may not be played back or sent depending on the device.•For information on the playback of images, check the operating instructions of the destination
device.
About settings for sending images
DestinationJPEGMotion...

- 122 -
Wi-Fi
A picture can be automatically sent to a specified device every time you take it.
•Since the camera gives priority to recording,  sending may take longer during the recording.
•When connected with [Send Images While Recording], [ ] is displayed on the
recording screen, and [ ] is displayed while sending a file.
•If you turn off this unit or the Wi-Fi connection before sending is complete,
unsent pictures will not be resent.
•You may not be able to delete files or use the playback menu...

- 123 -
Wi-Fi
[Wi-Fi Setup] Menu
For details on how to select the [Wi-Fi] menu settings, refer to P37.
Configure the settings required for the Wi-Fi function. [Wi-Fi Setup] cannot be changed when connected to Wi-Fi.
1Select [Wi-Fi Setup] in the [Wi-Fi] menu, and press [MENU/SET].2Press  3/4  to select item, and press [MENU/SET].
•
Refer to P110  for details.
•For details on how to enter characters, refer to “Entering Text” section on P117.•If you are using the PC with standard settings, you do not need...

- 124 -
Wi-Fi

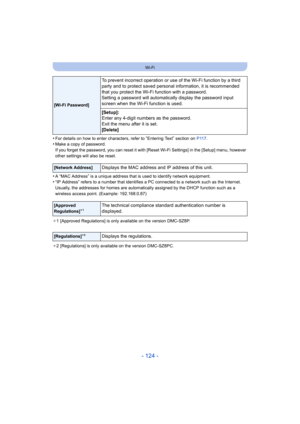

•For details on how to enter characters, refer to “Entering Text” section on P117.•Make a copy of password.
If you forget the password, you can reset it with [Reset Wi-Fi Settings] in the [Setup] menu, however
other settings will also be reset.
•A “MAC Address” is a unique address that is used to identify network equipment.•“IP Address” refers to a number that identifies a PC connected to a network such as the Internet.
Usually, the addresses for homes are automatically assigned by the...

- 125 -
Connecting to other equipment

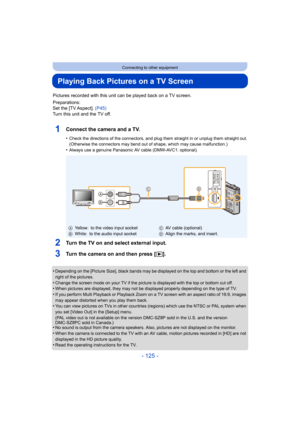

Playing Back Pictures on a TV Screen
Pictures recorded with this unit can be played back on a TV screen.
Preparations:
Set the [TV Aspect]. (P45)
Turn this unit and the TV off.
1Connect the camera and a TV.
•Check the directions of the connectors, and plug them straight in or unplug them straight out.
(Otherwise the connectors may bend out of shape, which may cause malfunction.)
•Always use a genuine Panasonic AV cable (DMW-AVC1: optional).
2Turn the TV on and select...

- 126 -
Connecting to other equipment
The recorded still pictures can be played back on a TV with an SD Memory Card slot.
•Depending on the TV model, pictures may not be displayed on the full screen.•The file format of the motion pictures that can be played back differs depending on the TV model.
•In some cases, panorama pictures cannot be played back. Also, auto-scroll playback of
panorama pictures may not work.
•For cards compatible with playback, refer to the operating instructions of the TV.

- 127 -
Connecting to other equipment
Saving still pictures and motion pictures on your
PC
You can transfer the pictures in the camera to a PC by connecting the camera and the PC.
•Some PCs can read directly from the card removed from the camera. For details, refer to the
operating instructions of your PC.
•If the computer being used does not support SDXC Memory Cards, a message prompting you
to format may appear.
(Doing so will cause recorded images to be erased so do not choose to format.)
If the...

- 128 -
Connecting to other equipment

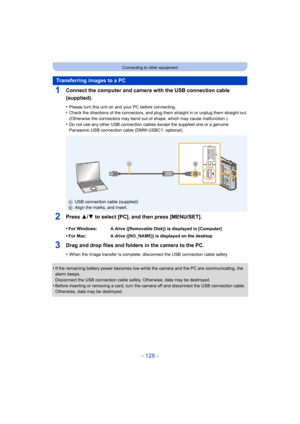

1Connect the computer and camera with the USB connection cable
(supplied).
•Please turn this unit on and your PC before connecting.•Check the directions of the connectors, and plug them straight in or unplug them straight out.
(Otherwise the connectors may bend out of shape, which may cause malfunction.)
•Do not use any other USB connection cables except the supplied one or a genuine
Panasonic USB connection cable (DMW-USBC1: optional).
2Press 3/4 to select [PC],...

- 129 -
Connecting to other equipment
∫About the folder structure of the camera
The content (folder structure) of the built-in memory of the camera/the card is displayed on a
PC as follows:
•
A new folder is created when pictures are taken in the following situations.–When a card containing a folder with the same  folder number has been inserted (Such as when
pictures were taken using another maker of camera)
–When there is a picture with file number 999 inside the folder
∫ Connection in the PTP Mode...

- 130 -
Connecting to other equipment

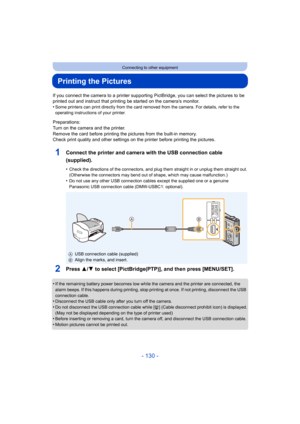

Printing the Pictures
If you connect the camera to a printer supporting PictBridge, you can select the pictures to be
printed out and instruct that printing be started on the camera’s monitor.
•
Some printers can print directly from the card removed from the camera. For details, refer to the
operating instructions of your printer.
Preparations:
Turn on the camera and the printer.
Remove the card before printing the pictures from the built-in memory.
Check print...
