Panasonic Digital Camera Dmc Ts3 Owners Manual For Advanced Features

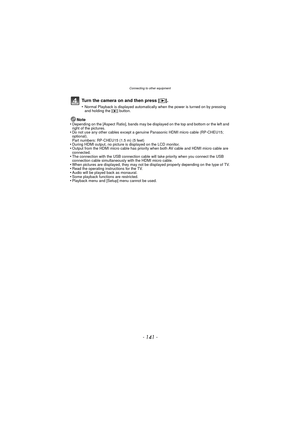

Connecting to other equipment
- 141 -
Note
•Depending on the [Aspect Ratio], bands may be displayed on the top and bottom or the left and
right of the pictures.
•Do not use any other cables except a genuine Panasonic HDMI micro cable (RP-CHEU15;
optional).
Part numbers: RP-CHEU15 (1.5 m) (5 feet)
•During HDMI output, no picture is displayed on the LCD monitor.•Output from the HDMI micro cable has priority  when both AV cable and HDMI micro cable are
connected.
•The connection with the USB connection...

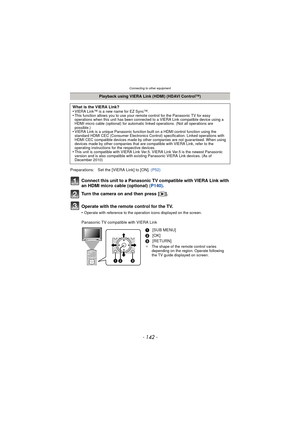

- 142 -
Connecting to other equipment
Connect this unit to a Panasonic TV compatible with VIERA Link with
an HDMI micro cable (optional) (P140).
Turn the camera on and then press [ (].
Operate with the remote control for the TV.
•Operate with reference to the operation icons displayed on the screen.
Panasonic TV compatible with VIERA Link
Playback using VIERA Link (HDMI) (HDAVI Control™)
What is the VIERA Link?
•
VIERA Link™ is a new name for EZ Sync™.•This function allows you to use your remote control...

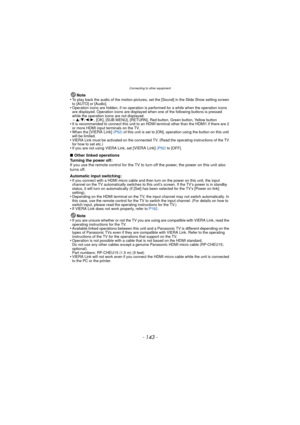

Connecting to other equipment
- 143 -
Note
•To play back the audio of the motion pictures, set the [Sound] in the Slide Show setting screen
to [AUTO] or [Audio].
•Operation icons are hidden, if no operation is performed for a while when the operation icons
are displayed. Operation icons are displayed when one of the following buttons is pressed
while the operation icons are not displayed.
–3/ 4/2 /1, [OK], [SUB MENU], [RETURN], Red button, Green button, Yellow button•It is recommended to connect this...

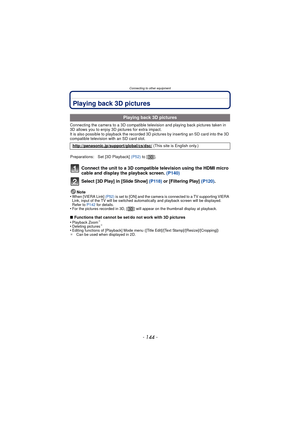

- 144 -
Connecting to other equipment
Playing back 3D pictures
Connecting the camera to a 3D compatible television and playing back pictures taken in
3D allows you to enjoy 3D pictures for extra impact.
It is also possible to playback the recorded 3D pictures by inserting an SD card into the 3D
compatible television with an SD card slot.
Connect the unit to a 3D compatible television using the HDMI micro
cable and display the playback screen. (P140)
Select [3D Play] in [Slide Show] (P118) or...

Connecting to other equipment
- 145 -

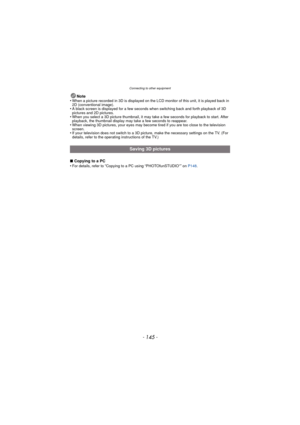

Note
•When a picture recorded in 3D is displayed on the LCD monitor of this unit, it is played back in
2D (conventional image).
•A black screen is displayed for a few seconds when switching back and forth playback of 3D
pictures and 2D pictures.
•When you select a 3D picture thumbnail, it may take a few seconds for playback to start. After
playback, the thumbnail display may take a few seconds to reappear.
•When viewing 3D pictures, your eyes may become tired if...

- 146 -
Connecting to other equipment
Saving the Recorded Still Pictures and Motion
Pictures
Methods to export still pictures and motion pictures to other devices will vary depending on
the file format. (JPEG, MPO, AVCHD, or Motion JPEG). Here are a few suggestions.
File formats that can be used: [JPEG], [AVCHD]
•
See the instruction manual for the recorder about the details of
copying and playing back.
•Note that the equipment described may not be available in
certain countries and regions.
Copy by...

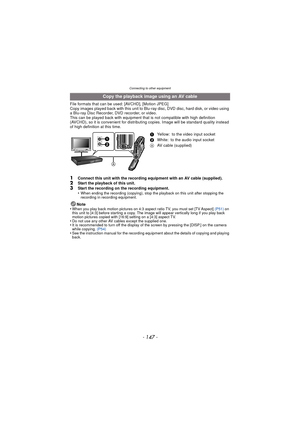

Connecting to other equipment
- 147 -
File formats that can be used: [AVCHD], [Motion JPEG]
Copy images played back with this unit to Blu-ray disc, DVD disc, hard disk, or video using
a Blu-ray Disc Recorder, DVD recorder, or video.
This can be played back with equipment that is not compatible with high definition
(AVCHD), so it is convenient for distri buting copies. Image will be standard quality instead
of high definition at this time.
1Connect this unit with the recording equipment with an AV...

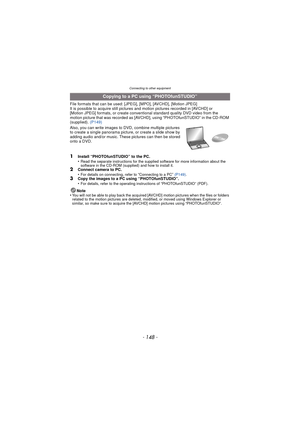

- 148 -
Connecting to other equipment
File formats that can be used: [JPEG], [MPO], [AVCHD], [Motion JPEG]
It is possible to acquire still pictures and motion pictures recorded in [AVCHD] or
[Motion JPEG] formats, or create conventional standard quality DVD video from the
motion picture that was recorded as [AVCHD], using “PHOTOfunSTUDIO” in the CD-ROM
(supplied).  (P149)
Also, you can write images to DVD, combine multiple pictures
to create a single panorama pictur e, or create a slide show by...

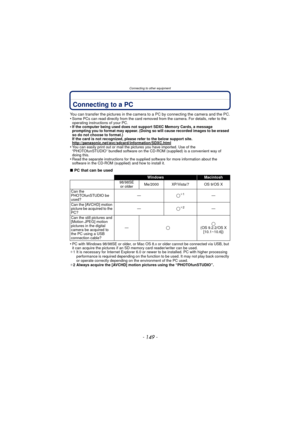

Connecting to other equipment
- 149 -
Connecting to a PC
You can transfer the pictures in the camera to a PC by connecting the camera and the PC.
•Some PCs can read directly from the card removed from the camera. For details, refer to the
operating instructions of your PC.
•If the computer being used does not support SDXC Memory Cards, a message
prompting you to format may appear. (Doing so will cause recorded images to be erased
so do not choose to format.)
If the card is not recognized, please refer...

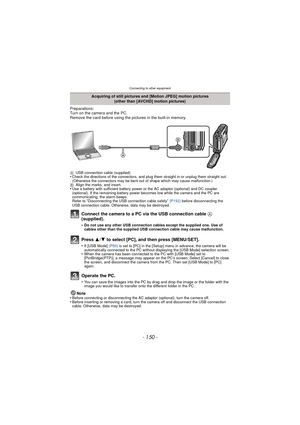

- 150 -
Connecting to other equipment
Preparations:
Turn on the camera and the PC.
Remove the card before using the pictures in the built-in memory.
AUSB connection cable (supplied)•Check the directions of the connectors, and plug them straight in or unplug them straight out.
(Otherwise the connectors may be bent out of shape which may cause malfunction.)
B Align the marks, and insert.
•Use a battery with sufficient battery power or the AC adaptor (optional) and DC coupler
(optional). If the remaining...
