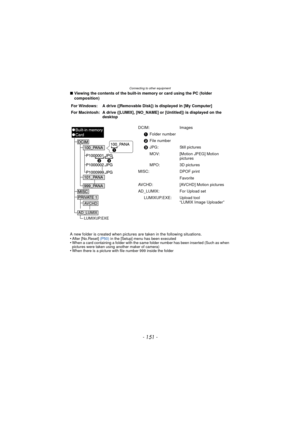

Connecting to other equipment
- 151 -
∫Viewing the contents of the built-in memory or card using the PC (folder
composition)
A new folder is created when pictures are taken in the following situations.
•
After [No.Reset]  (P50) in the [Setup] menu has been executed•When a card containing a folder with the same folder number has been inserted (Such as when
pictures were taken using another maker of camera)
•When there is a picture with file number 999 inside the folder
For Windows: A drive ([Removable...

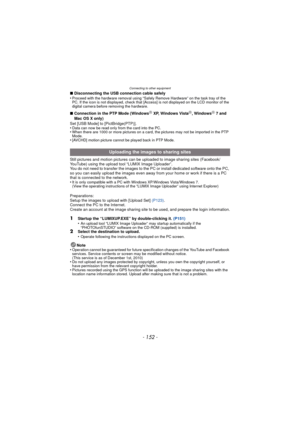

- 152 -
Connecting to other equipment
∫Disconnecting the USB connection cable safely
•Proceed with the hardware removal using “Safely Remove Hardware” on the task tray of the
PC. If the icon is not displayed, check that [Access] is not displayed on the LCD monitor of the
digital camera before removing the hardware.
∫ Connection in the PTP Mode (WindowsR XP, Windows VistaR, WindowsR 7 and
Mac OS X only)
Set [USB Mode] to [PictBridge(PTP)].
•
Data can now be read only from the card into the PC.•When...

Connecting to other equipment
- 153 -
Printing the Pictures
If you connect the camera to a printer supporting PictBridge, you can select the pictures to
be printed out and instruct that printing be started from the camera’s LCD monitor.
•
Some printers can print directly from the card removed from the camera. For details, refer to
the operating instructions of your printer.
Preparations:
Turn on the camera and the printer.
Remove the card before printing the pictures in the built-in memory.
Perform the...

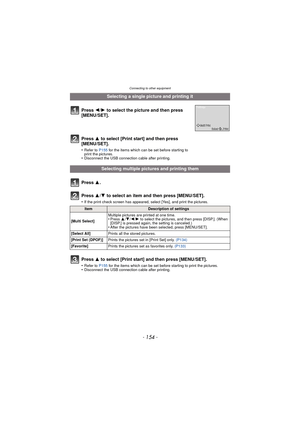

- 154 -
Connecting to other equipment
Selecting a single picture and printing it
Press  2/1 to select the picture and then press
[MENU/SET].
Press  3 to select [Print start] and then press
[MENU/SET].
•Refer to  P155 for the items which can be set before starting to
print the pictures.
•Disconnect the USB connecti on cable after printing.
Selecting multiple pictures and printing them
Press  3.
Press  3/4 to select an item and then press [MENU/SET].
•If the print check screen has appeared, select...

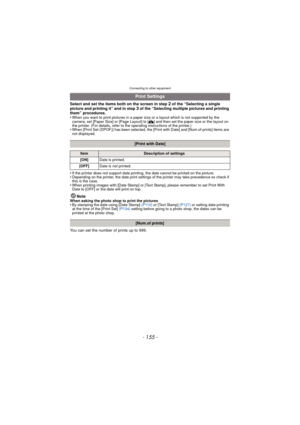

Connecting to other equipment
- 155 -
Select and set the items both on the screen in step 2 of the “Selecting a single
picture and printing it” and in step 3 of the “Selecting multiple pictures and printing
them” procedures.
•
When you want to print pictures in a paper size or a layout which is not supported by the
camera, set [Paper Size] or [Page Layout] to [ {] and then set the paper size or the layout on
the printer. (For details, refer to the operating instructions of the printer.)
•When [Print...

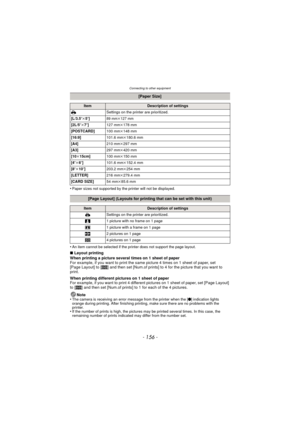

- 156 -
Connecting to other equipment
•Paper sizes not supported by the printer will not be displayed.
•An item cannot be selected if the printer does not support the page layout.
∫Layout printing
When printing a picture several times on 1 sheet of paper
For example, if you want to print the same picture 4 times on 1 sheet of paper, set
[Page Layout] to [ ä] and then set [Num.of prints] to 4 for the picture that you want to
print.
When printing different pictures on 1 sheet of paper
For example, if...

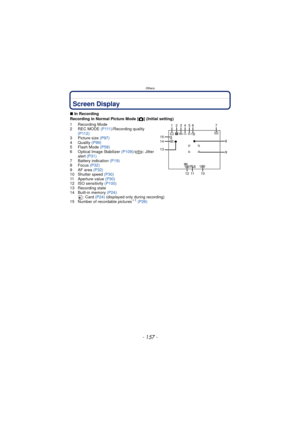

Others
- 157 -
OthersScreen Display
∫In Recording
Recording in Normal Picture Mode [ !] (Initial setting)
1 Recording Mode
2REC MODE ( P 111 ) /Recording quality
(P112)
3 Picture size  (P97)
4 Quality  (P99)
5 Flash Mode  (P58)
6 Optical Image Stabilizer (P109) /: Jitter
alert  (P31)
7 Battery indication  (P19)
8 Focus  (P32)
9 AF area  (P32)
10 Shutter speed  (P30)
11 Aperture value  (P30)
12 ISO sensitivity (P100)
13 Recording state
14 Built-in memory  (P24)
: Card (P24)  (displayed only during...

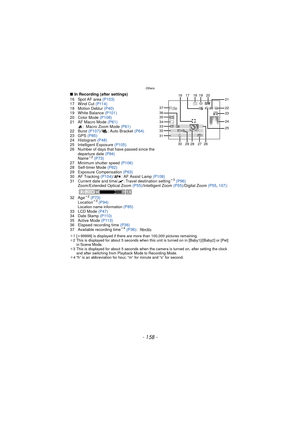

- 158 -
Others
∫In Recording (after settings)
16 Spot AF area  (P103)
17 Wind Cut  (P114)
18 Motion Deblur  (P40)
19 White Balance  (P101)
20 Color Mode  (P108)
21 AF Macro Mode  (P61)
: Macro Zoom Mode (P61)
22 Burst  (P107)/ : Auto Bracket  (P64)
23 GPS  (P85)
24 Histogram  (P48)
25 Intelligent Exposure  (P105)
26 Number of days that have passed since the  departure date  (P94)
Name
¢ 2 (P73)
27 Minimum shutter speed  (P106)
28 Self-timer Mode  (P62)
29 Exposure Compensation  (P63)
30 AF Tracking...

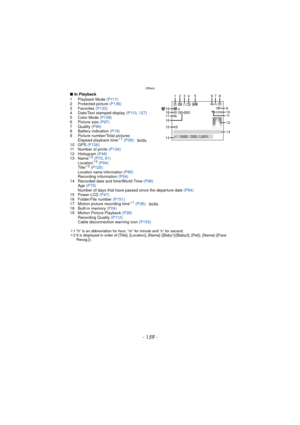

Others
- 159 -
∫In Playback
1 Playback Mode  (P117)
2 Protected picture  (P136)
3 Favorites  (P133)
4 Date/Text stamped display  (P110, 127)
5 Color Mode  (P108)
6 Picture size  (P97)
7 Quality  (P99)
8 Battery indication  (P19)
9 Picture number/Total pictures Elapsed playback time
¢1 (P38) :
10 GPS  (P126)
11 Number of prints  (P134)
12 Histogram  (P48)
13 Name
¢ 2 (P73 , 81)
Location¢ 2 (P94)
Title¢ 2 (P125)Location name information (P85)
Recording information  (P54)
14 Recorded date and time/World...

- 160 -
Others

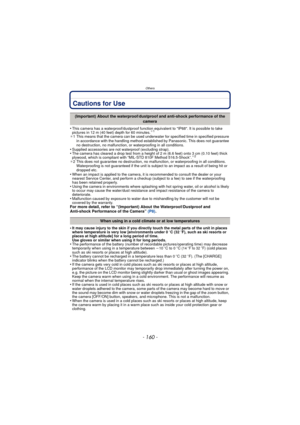

Cautions for Use
•This camera has a waterproof/dustproof function equivalent to IP68. It is possible to take
pictures in 12 m (40 feet) depth for 60 minutes.¢1
¢1 This means that the camera can be used underwater for specified time in specified pressure
in accordance with the handling method established by Panasonic. This does not guarantee
no destruction, no malfunction, or waterproofing in all conditions.
•Supplied accessories are not waterproof (excluding strap).•The camera has...
